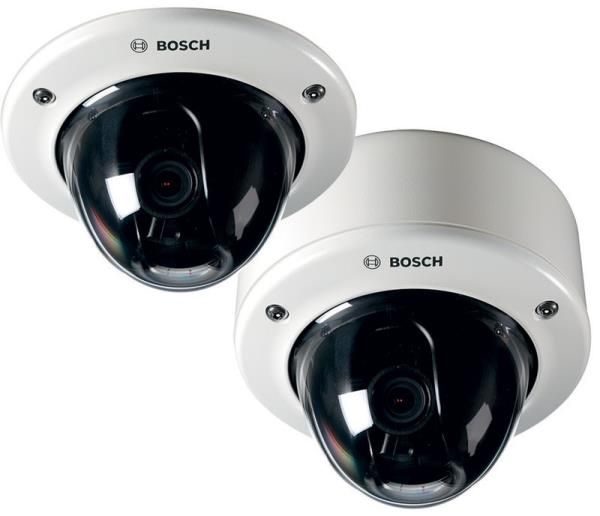

Bosch NIN-73013-A3AS 720p FLEXIDOME IP Dome Camera, 3-9mm Lens, Surface Mount Box
SKU
NIN-73013-A3AS
Model No
NIN-73013-A3AS
$994.83
Product Highlights
- Excellent low-light performance
- Built-in Intelligent Video Analytics to trigger relevant alerts and quickly retrieve data
- Intelligent Dynamic Noise Reduction reduces bandwidth and storage requirements by up to 50%
- Extended Dynamic Range mode to see details in bright and dark areas simultaneously
- Easy to install with auto zoom/focus SR lens, wizard and pre-configured modes
Speak to an expert
The NIN-73013-A3AS from Bosch is a 720p FLEXIDOME IP starlight 7000 VR dome camera, 3-9mm, surface mount box. High-performance IP dome camera for IVA-optimized, mission critical, HD surveillance in low light and with hybrid IP/analog operation.
Bosch NIN-73013-A3AS Camera Features
- Excellent low-light performance: Ensures high-quality imaging even in dim environments, making it ideal for nighttime surveillance.
- Built-in Intelligent Video Analytics: Triggers relevant alerts and helps quickly retrieve data, enhancing security monitoring efficiency.
- Intelligent Dynamic Noise Reduction: Reduces bandwidth and storage requirements by up to 50%, allowing for cost-effective data management.
- Extended Dynamic Range mode: Captures details in both bright and dark areas simultaneously, providing clearer images in challenging lighting conditions.
- Easy installation: Featuring auto zoom/focus SR lens and pre-configured modes, simplifying setup for users.
Bosch NIN-73013-A3AS Detailed Specifications
| Feature | Details |
|---|---|
| Camera Type | IP Dome Camera |
| Resolution | 720p |
| Lens Type | 3-9mm |
| Mount Type | Surface Mount Box |
| Low Light Performance | Starlight Technology |
| Video Analytics | Intelligent Video Analytics |
| Dynamic Range | Extended Dynamic Range |
| Noise Reduction | Intelligent Dynamic Noise Reduction |
| Installation Features | Auto Zoom/Focus, Wizard, Pre-configured Modes |
SKU  | NIN-73013-A3AS |
|---|---|
| Features | Weather Resistant, Wide Dynamic Range |
| Manufacturer | Bosch |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 0.9 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3-9mm |
| Mount Type | Wall |
| Compression Method | M-JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 158 x 124 mm (6.22 x 4.89 in) |
| Electronic Shutter | Fixed shutter (1/25[30] to 1/15000) selectable |
| Image Device | 1/2.8-inch CMOS |
| Image Pixels-Effective | 1280 (H) x 720 (V) |
| Minimum Scene Illumination | Color: 0.0075 lx, Mono: 0.0011 lx |
| Operating Humidity | 5% to 93% relative humidity |
| Operating Temperature | -30 ºC to +55 ºC (-22 ºF to +131 ºF) |
| Power Consumption | 7.2 W max. |
| Privacy Zone | Eight independent areas, fully programmable |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP) |
| S/N Ratio | >50 dB |
| Signal System | NTSC, PAL |
| Video Output | CVBS (PAL/NTSC), 1 Vpp, BNC, 75 Ohm (surge protected) |
| Weatherproof | IP66 |
| Digital Noise Reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments |
| Mirror | On / Off |
| Angle of View | Wide: 117º x 59º (H x V) Tele: 37º x 21º (H x V ) |
| Rotation Angle | 90° |
| Back Light Compensation | On/off |
| Automatic White Balance | 2500 to 10000K, 4 automatic modes (Basic, Standard, Sodium vapor, Dominant color), Manual mode and Hold mode |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
