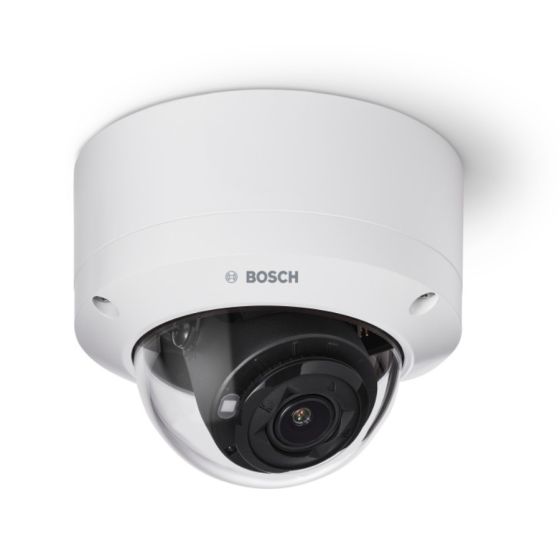

IQsight by Bosch NDV-5702-AL-GOV 2 Megapixel Network IP Indoor IR HDR Fixed Dome Camera with 3.2-10.5mm Lens
- 1080p60 for highly detailed images
- Starlight camera technology with excellent low-light performance
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
- High Dynamic Range to see every detail in both bright and dark areas of the scene
- Built-in intelligent IR illuminator with up to 45 m (148 ft) viewing distance
The camera is a versatile and professional surveillance camera for indoor monitoring. It delivers exceptional image quality, starlight performance and High Dynamic Range at resolution HD 1080p for highly detailed image for demanding security and surveillance network requirements.
Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts. The camera offers a 1/2.8’’ sensor and HDR technology at HD 1080p resolution with a built-in active infrared illuminator that provides high performance in extreme lowlight environments.
The modular structure design uses a click and rotate mechanism on mounting plate or base that requires no hardware to secure the camera to housing for fast installation, including compatibility with various mounting options.
Features
- 1080p60 for highly detailed images
- Starlight camera technology with excellent low-light performance
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
- High Dynamic Range to see every detail in both bright and dark areas of the scene
- Built-in intelligent IR illuminator with up to 45 m (148 ft) viewing distance
SKU  | NDV-5702-AL-GOV |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Bosch |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3.2-10.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 48vDC, PoE |
| Dimensions (W x H) | 148 mm x 122 mm |
| Electronic Shutter | Automatic Electronic Shutter (AES); 1/25 min; 1/15,000 max; Default shutter |
| Image Device | 1/2.8 inch CMOS |
| Image Pixels-Effective | 1,920 x 1,080 |
| IR Wavelength | 850 nm |
| Operating Humidity | 5% – 93% |
| Operating Temperature | -20 °C – 50 °C (-4 °F – 122 °F) |
| S/N Ratio | >55 dB |
| Weatherproof | IP54, IK10 |
| Angle of View | Horizontal field of view 105º - 31º Vertical field of view 57º - 18º |
| Automatic White Balance | 2,500 K – 10,000 K |
| IR Distance | 45m/148ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
NDV-5702-AL-GOV-Specsheet
