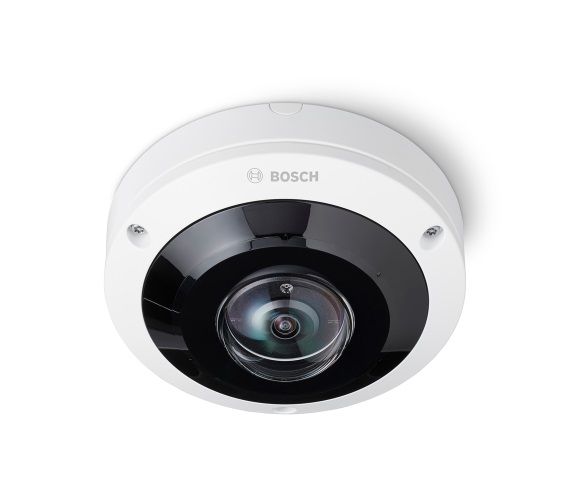

IQsight by Bosch NDS-5703-F360LE 6 Megapixel Network 360° Dome Camera with 1.155mm Lens
SKU
NDS-5703-F360LE
Model No
NDS-5703-F360LE
was $994.00 Special Price $989.99
Product Highlights
- 360° panoramic overview in 6MP resolution without blind spots
- High Dynamic Range to see every detail in both bright and dark areas of the scene
- Edge or client-side dewarping for easy integration and flexible viewing and recording
- Built-in Intelligent Video Analytics and Audio AI to trigger relevant alerts and quickly retrieve data
- Compact design for unobtrusive indoor use with quick and easy installation and set-up
Speak to an expert
The NDS-5703-F360LE from Bosch is a 6 megapixel network 360° dome camera with a 1.155mm lens, designed for comprehensive surveillance without blind spots. With advanced features such as High Dynamic Range and built-in analytics, this camera ensures sharp images and intelligent monitoring for enhanced security.
Bosch NDS-5703-F360LE Camera Features
- 360° panoramic overview: Provides complete coverage in 6MP resolution, eliminating blind spots and ensuring no detail is missed.
- High Dynamic Range: Captures details in both bright and dark areas, enhancing image quality for more effective monitoring.
- Edge or client-side dewarping: Facilitates seamless integration and flexible viewing options for tailored surveillance needs.
- Intelligent Video Analytics and Audio AI: Triggers relevant alerts and allows for quick data retrieval, improving response times.
- Compact design: Ideal for unobtrusive indoor use, ensuring quick and easy installation and set-up.
Detailed Specifications for Bosch NDS-5703-F360LE
| Camera Type | Network 360° Dome Camera |
| Resolution | 6 Megapixels |
| Lens | 1.155mm |
| Viewing Angle | 360° |
| Dynamic Range | High Dynamic Range (HDR) |
| Analytics | Intelligent Video Analytics and Audio AI |
| Installation | Compact and Easy Installation |
SKU  | NDS-5703-F360LE |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, ONVIF, Privacy Masking |
| Manufacturer | Bosch |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 148 x 70 mm (5.83 x 2.76 in) |
| Electronic Shutter | Default shutter (1/30 [1/25] to 1/500) selectable |
| Image Device | 1/1.8 inch CMOS |
| Image Pixels-Effective | 2112 x 2112 (4.5 MP) |
| IR LEDs | 360⁰ LED high efficiency array |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Mono (6 MP): 0.008 lx, With IR (6 MP): 0 lx |
| Operating Humidity | 5% to 93% RH non-condensing, 5% to 100% RH condensing |
| Operating Temperature | IR on: -40 ºC to +50 ºC (-40 ºF to 122 ºF), IR off: -40 ºC to +55 ºC (-40 ºF to 131 ºF) |
| Power Consumption | 13.4 W max. (DC) , 13.3 W max. (AC) , 11.4 W max (PoE) |
| Privacy Zone | Eight independent areas, fully programmable |
| S/N Ratio | >50 dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | Dynamic Noise Reduction |
| Automatic White Balance | 2500 to 10000K, 3 automatic modes (Basic, Standard, Sodium vapor), Manual mode and Hold mode |
| IR Distance | 20m/66ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
