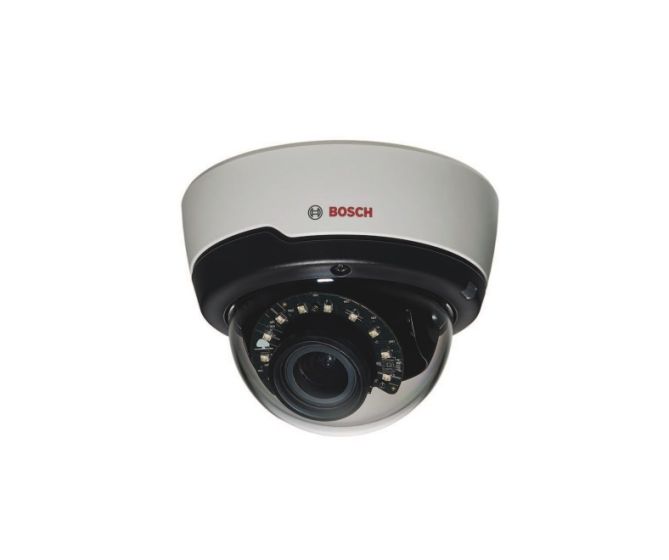

Bosch NDI-3512-AL 2 Megapixel Network Indoor Dome Camera with 3-9mm Lens
SKU
NDI-3512-AL
Model No
NDI-3512-AL
$410.25
Product Highlights
- 1080p resolution indoor camera
- Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
- Easy to install with auto zoom/focus lens and wizard
- Fully configurable H.265 multi-streaming
- Built-in IR illuminator with 30 m (98 ft) viewing distance
Speak to an expert
The Bosch NDI-3512-AL 2 Megapixel Network Indoor Dome Camera with 3-9mm Lens delivers high-quality surveillance with advanced features tailored for continuous indoor monitoring. With Easy installation and robust performance in low-light conditions, this camera ensures safety and security, making it ideal for a variety of environments.
Bosch NDI-3512-AL Camera Features
- 1080p Resolution: Provides crisp and clear video footage, ensuring every detail is captured for effective monitoring.
- Essential Video Analytics: Automatically triggers alerts and simplifies data retrieval, allowing for quick response to incidents.
- Easy Installation: Features auto zoom and focus, along with a user-friendly wizard, making setup fast and straightforward.
- Configurable H.265 Multi-Streaming: Supports high-efficiency video compression for optimized streaming without sacrificing quality.
- Built-in IR Illuminator: Achieves up to 30 m (98 ft) viewing distance in low-light conditions, providing reliable performance around the clock.
Bosch NDI-3512-AL Detailed Specifications
| Camera Type | Indoor Dome Camera |
| Resolution | 2 Megapixels (1080p) |
| Lens | 3-9mm Varifocal Lens |
| Analytics | Essential Video Analytics |
| Streaming | H.265 Multi-Streaming |
| IR Range | Up to 30 m (98 ft) |
| Installation | Easy setup with auto zoom/focus |
| Usage | Designed for indoor use |
SKU  | NDI-3512-AL |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Bosch |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3-9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | 12vDC, 48vDC, 24vAC |
| Dimensions (W x H) | 135 mm x 105 mm |
| Electronic Shutter | Automatic Electronic Shutter (AES); 1/25 min; 1/15,000 max; Default shutter; 1/30 min |
| Image Device | 1/2.8 inch CMOS |
| Image Pixels-Effective | 1,920 x 1,080 |
| IR Wavelength | 850 nm |
| Operating Humidity | 5% – 93% |
| Operating Temperature | -30 °C – 70 °C |
| Privacy Zone | 8 independent areas, fully programmable |
| S/N Ratio | >55 dB |
| Angle of View | Horizontal field of view 106° - 37°, Vertical field of view 55° - 21° |
| Back Light Compensation | On/Off |
| Automatic White Balance | 2,500 K – 10,000 K |
| IR Distance | 30m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Mirror | Yes |
| ONVIF | Yes |
