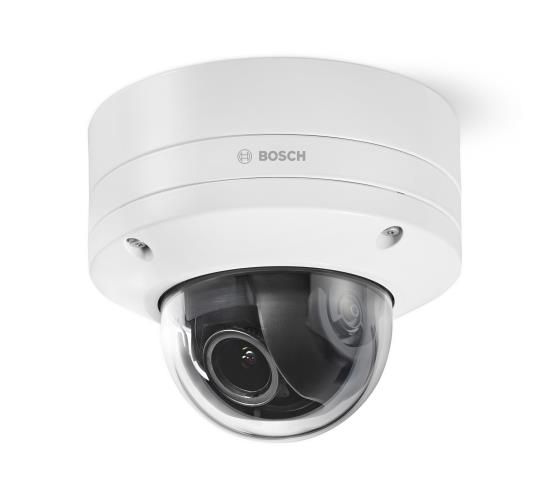

Bosch NDE-8502-RX 2 Megapixel Network HDR X PTRZ Dome Camera with 4.4-10mm Lens
SKU
NDE-8502-RX
Model No
NDE-8502-RX
$1,256.32
Product Highlights
- Wireless or remote configuration and commissioning with the Project Assistant app. Pan, Tilt, Roll and Zoom (PTRZ) to set the camera to the required field of view, without having to touch the camera or lens
- Starlight X technology with 1/1.8" HD 1080p sensor for next level low-light performance with maximum detail
- HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without motion artefacts
- Built-in Intelligent Video Analytics with object detection to trigger alerts and quickly retrieve data with the highest levels of reliability
- Camera Trainer to train the camera to recognize user-specified target objects for both moving and non-moving objects
Speak to an expert
The Bosch NDE-8502-RX is a cutting-edge 2 Megapixel Network HDR X PTRZ Dome Camera designed for exceptional performance in various lighting conditions. Equipped with a versatile 4.4-10mm lens, this sophisticated camera features Starlight X technology and HDR X capabilities, providing crystal-clear images in low light and a wide dynamic range. The camera's remote commissioning functionality with the Bosch Project Assistant app makes installation swift and user-friendly.
Bosch NDE-8502-RX Camera Features
- Wireless Configuration: Easily set up the camera remotely via the Project Assistant app, allowing for quick pan, tilt, roll, and zoom adjustments without manual handling.
- Starlight X Technology: The 1/1.8" HD 1080p sensor excels in low-light scenarios, capturing detailed images where traditional cameras fail.
- HDR X: High Dynamic Range functionality ensures details are visible in both bright and dark areas seamlessly, enhancing overall image quality.
- Intelligent Video Analytics: Built-in object detection provides reliable alerts and efficient data retrieval, ensuring prompt response to events.
- Camera Trainer: Customize the camera's recognition capabilities to focus on specific moving or non-moving target objects for tailored surveillance performance.
Detailed Camera Specifications for Bosch NDE-8502-RX
| Model | Bosch NDE-8502-RX |
| Resolution | 2 Megapixels (HD 1080p) |
| Lens Type | 4.4-10mm |
| Sensor Size | 1/1.8ā€¯ |
| Frame Rate | Up to 60 fps |
| Features | Starlight X, HDR X, Intelligent Video Analytics |
| Remote Commissioning | Yes, through Bosch Project Assistant app |
| Video Analytics | Object Detection, Camera Trainer |
SKU  | NDE-8502-RX |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Bosch |
Camera Signal  | Network IP |
| Connection Type | Wired, Wireless |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 4.4-10mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vAC, PoE |
| Dimensions (W x H) | 175Ā xĀ 148Ā mm (6.9Ā xĀ 5.7Ā in) |
| Electronic Shutter | Automatic Electronic Shutter (AES); Fixed shutter (1/25[30] to 1/15000) selectable; Default shutter, Maximum shutter |
| Image Device | 1/1.8 inch CMOS |
| Image Pixels-Effective | 1920Ā xĀ 1080 4.1Ā Ī¼m pixels, 2.1MP (approx.) |
| Operating Humidity | 5% to 93% RH non condensing, 5% to 100% RH condensing |
| Operating Temperature | -50Ā Ā°C to +60Ā Ā°C (-58Ā Ā°F to +140Ā Ā°F) |
| Power Consumption | PoE: 7Ā W / 12.95Ā W; 24Ā VAC: 7.1Ā W - 12Ā VA / 13Ā W - 25Ā VA; 12-26Ā VDC: 7.5Ā W / 16Ā W |
| Privacy Zone | Eight independent areas, fully programmable |
| S/N Ratio | >50Ā dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments |
| Angle of View | Wide: 110Ā° x 56Ā° (H x V); Tele: 48Ā° x 27Ā° (H x V |
| Rotation Angle | 0Ā° / 90Ā° upright / 180Ā° / 270Ā° upright |
| Automatic White Balance | 2500 to 10000K, 4 automatic modes (Basic, Standard, Sodium lamp, Dominant color), Manual mode and Hold mode |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
