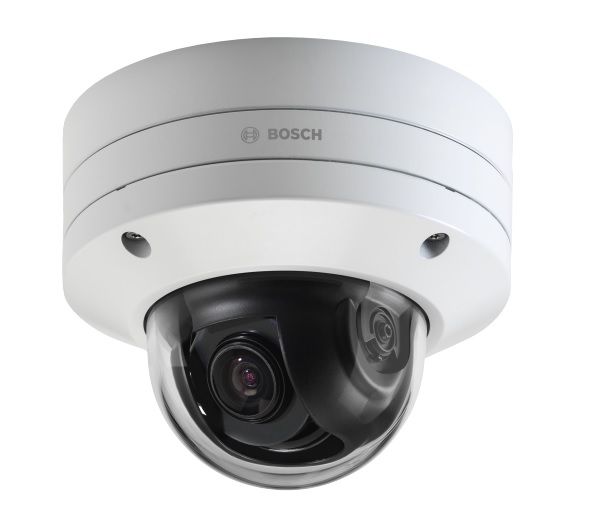

The NDE-8502-RT from Bosch is a 2 Megapixel Outdoor Fixed PTZ Dome Camera, 10-23mm Lens. The FLEXIDOME IP starlight 8000i cameras offer starlight technology and High Dynamic Range with 1080p resolution to provide crisp and highly detailed images in even extreme low-light situations. Fast moving objects are easily captured with frame rates of up to 60 frames per second. It delivers excellence in video security and data management and has built-in state-of-the-art Intelligent Video Analytics as standard. It’s rugged and aesthetic design makes the camera suitable for any indoor or outdoor installation. The camera’s remote commissioning functionality makes sure installation and commissioning can be done in very little time. Using a PC or a mobile device with the Bosch Project Assistant app, you can pan, tilt, roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens.
Features
Wireless or remote configuration and commissioning with the Project Assistant app. Pan, Tilt, Roll and Zoom (PTRZ) to set the camera to the required field of view, without having to touch the camera or lens
Intelligent streaming, IDNR and H.265 reduce bit rate by up to 80%
Starlight technology provides highly detailed images in extreme low-light situations
Built-in Intelligent Video Analytics to trigger alerts and quickly retrieve data with the highest levels of accuracy
High Dynamic Range to see every detail in both bright and dark areas of the scene
Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer
Bosch
Camera Signal
Network IP
Connection Type
Wired
Infrared Distance
Non Infrared
Resolution
2 Megapixel
Lens Type
Varifocal
Lens Size
10-23mm
Mount Type
Ceiling, Wall
Compression Method
H.264, M-JPEG, H.265
Durability
Vandal Resistant, Weather Resistant
Voltage
24vAC, PoE
Dimensions (W x H)
175 x 148 mm (6.9 x 5.7 in)
Electronic Shutter
1/25[30] to 1/15000
Image Device
1/2.8‑inch CMOS
Image Pixels-Effective
1920 (H) x 1080 (V); 2.1MP (approx.)
Minimum Scene Illumination
Color: 0.013 lx, Mono: 0.0031 lx
Operating Humidity
5% to 93% RH non condensing, 5% to 100% RH condensing
Operating Temperature
-50 °C to +60 °C (-58 °F to +140 °F) for continuous operation; Up to +74 °C (+165 °F) according to NEMA TS 2-2003 (R2008), para 2.1.5.1 using fig. 2.1 test profile
Power Consumption
PoE: 7 W / 13 W, 24 VAC: 7.1 W - 12 VA / 13 W - 25 VA, 12-26 VDC: 7.5 W / 16 W
