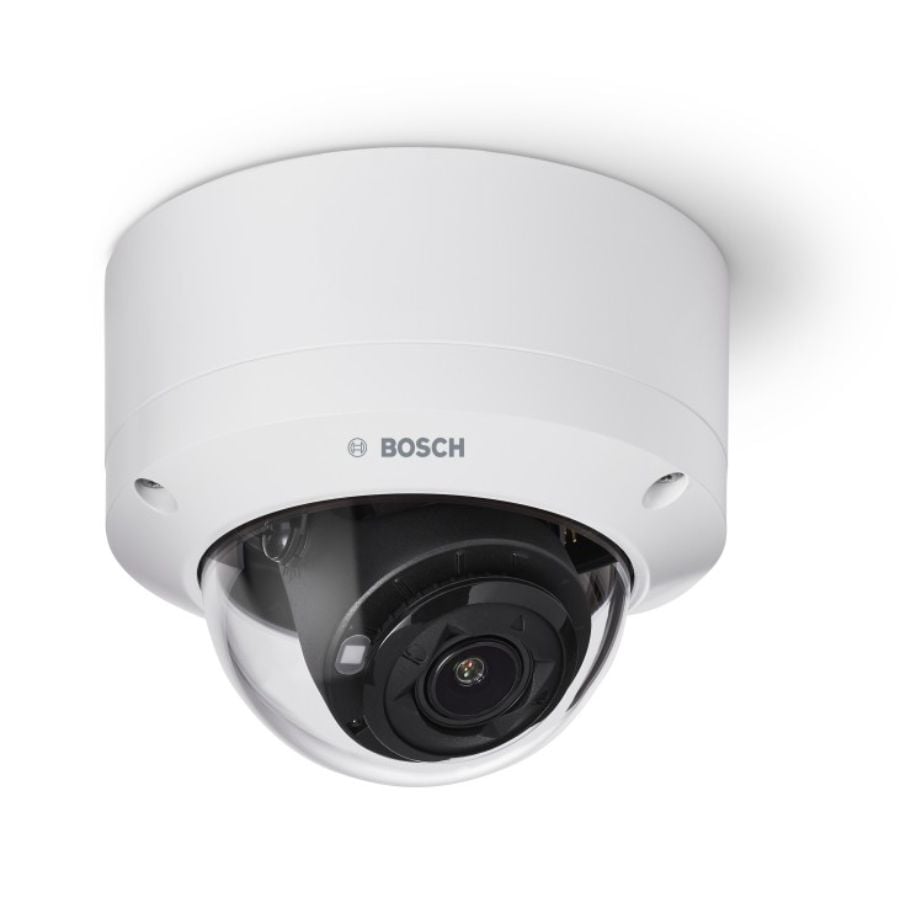

IQsight by Bosch NDE-5704-AL-GOV 8 Megapixel Network IP Outdoor IR HDR Fixed Dome Camera with 3.2-10.5mm Lens
- 4K ultra HD for highly detailed images
- Starlight camera technology with excellent low-light performance
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
- High Dynamic Range to see every detail in both bright and dark areas of the scene
- Built-in intelligent IR illuminator with up to 40 m (132 ft) viewing distance
The camera is a versatile and professional surveillance camera for outdoor monitoring. It delivers exceptional image quality, starlight performance and High Dynamic Range at resolution 4K ultra HD for highly detailed image for demanding security and surveillance network requirements. Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts. The cameras offer a 1/2.8’’ sensor and HDR technology at resolution 4K ultra HD with a built-in active infrared illuminator that provides high performance in extreme lowlight environments. The modular structure design uses a click and rotate mechanism on mounting plate or base that requires no hardware to secure the camera to housing for fast installation, including compatibility with various mounting options.
Features
- 4K ultra HD for highly detailed images
- Starlight camera technology with excellent low-light performance
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
- High Dynamic Range to see every detail in both bright and dark areas of the scene
- Built-in intelligent IR illuminator with up to 40 m (132 ft) viewing distance
SKU  | NDE-5704-AL-GOV |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | Bosch |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3.2-10.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | 148 mm x 122 mm |
| Electronic Shutter | Automatic Electronic Shutter (AES); 1/25 min; 1/15,000 max; Default shutter |
| Image Device | 1/2.8 inch CMOS |
| Image Pixels-Effective | 3,864 x 2,192 |
| IR Wavelength | 850 nm |
| Operating Humidity | 5% – 93% |
| Operating Temperature | -40 °C – 55 °C (-40 °F – 131 °F) |
| S/N Ratio | >55 dB |
| Weatherproof | IP66, IK10 |
| Angle of View | Horizontal field of view 105º - 31º Vertical field of view 57º - 18º |
| Automatic White Balance | 2,500 K – 10,000 K |
| IR Distance | 40m/132ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
