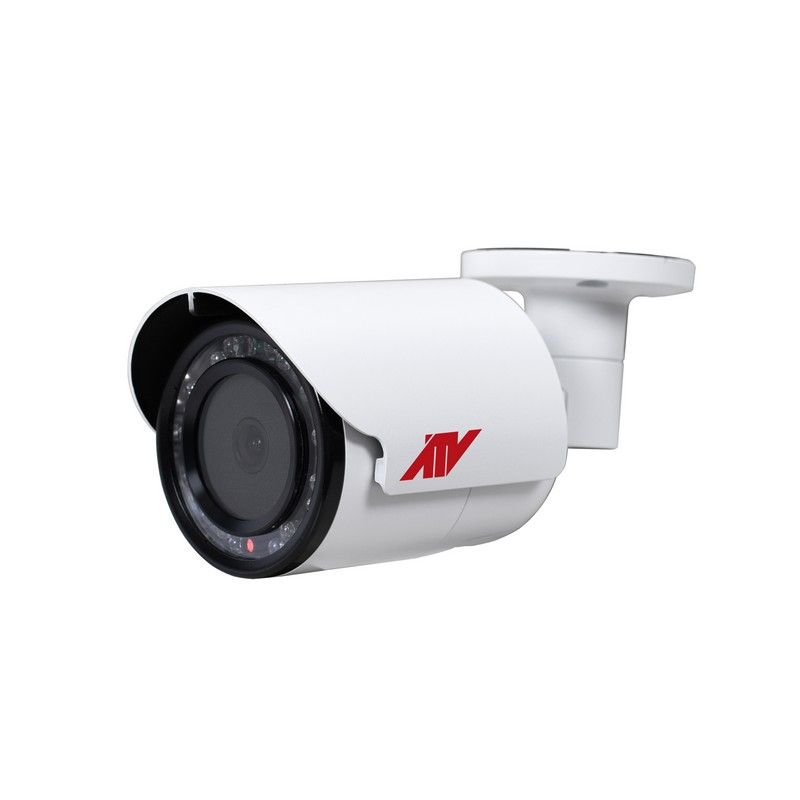

ATV NBW229 2 Megapixel Outdoor IR Network IP Bullet Camera, 2.9mm Lens
SKU
NBW229
Model No
NBW229
$304.64
Product Highlights
- 2.9mm (NBW229) Fixed Lens
- Exceptional 2MP, 1920 x 1080 Resolution, Video Images and Powerful IR LED Lights for 0 Lux Operation up to 82ft
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- ATVision IP Remote Management Client Software for Windows and Mac and Mobile Applications for Apple and Android Operating Systems are included
Speak to an expert
The NBW229 from ATV is a 2 Megapixel Outdoor IR Network IP Bullet Camera, 2.9mm Lens, designed to provide exceptional video quality and reliable monitoring in various outdoor environments. With powerful night vision capabilities and efficient video compression technology, this camera ensures extensive surveillance without compromising on performance.
ATV NBW229 Camera Features
- Lens: 2.9mm Fixed Lens for wide-angle coverage
- Resolution: Exceptional 2MP, 1920 x 1080 resolution for clear and detailed images
- Night Vision: Powerful IR LED lights for 0 Lux operation up to 82ft, ensuring visibility in complete darkness
- Video Compression: Super-efficient H.265 video compression significantly reduces bandwidth and storage requirements without sacrificing quality
- Remote Management: Includes ATVision IP Remote Management Client Software for Windows and Mac and mobile applications for Apple and Android, enabling easy and convenient management from anywhere
Detailed Specifications for ATV NBW229
| Feature | Details |
| Model | NBW229 |
| Type | Outdoor IR Network IP Bullet Camera |
| Resolution | 2 Megapixel (1920 x 1080) |
| Lens Type | 2.9mm Fixed Lens |
| Night Vision | IR Lights for up to 82ft, 0 Lux operation |
| Video Compression | H.265 |
| Software Included | ATVision IP Remote Management Client Software for Windows and Mac |
| Mobile Compatibility | Apple and Android applications available |
SKU  | NBW229 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ATV |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø 2.7 x 6.9in (Ø 68 x 175.8mm) |
| Electronic Shutter | Auto (1/10,000~1sec), Manual |
| Image Device | 1/2.9″ SONY Starvis CMOS Sensor |
| IR LEDs | 22 |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | Color: 0.8Lux / BW: [email protected], 50IRE |
| Operating Humidity | 0~90% RH (Non-Condensing) |
| Operating Temperature | -4~122°F (-20~+50°C) |
| Power Consumption | 12VDC: 6.5W, PoE: 5.6W |
| Protocols | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour |
| Scanning System | Progressive Scan |
| Video Output | IP66 |
| Digital Noise Reduction | 3DNR |
| Angle of View | 89° (H) |
| IR Distance | Indoor: 25m/82ft, Outdoor: 19.82m/65ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
