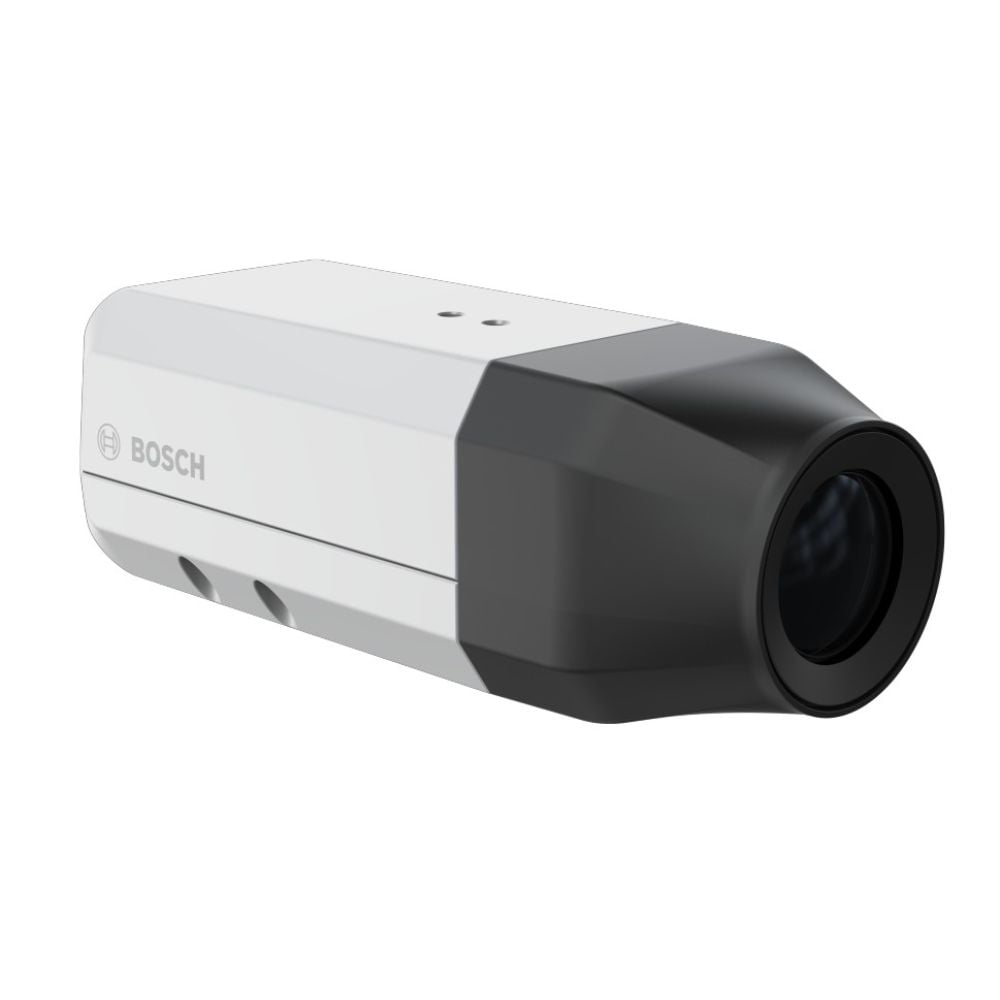

IQsight by Bosch NBI-7803-AXT 4 Megapixel Network IP HDRX Fixed Camera with 10.5-47mm Lens
- Starlight X technology with 1/1.8" 4MP sensor
- HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile to crowded and congested zones
- Electronic image stabilization (EIS) measures the frequency and amplitude of the device’s vibrations to offset their impact on the image
- Easy and flexible installation
The NBI-7803-AXT has a 1/1.8" sensor, starlight X and HDR X technology at 4MP resolution. Starlight X technology provides extreme low-light sensitivity ensuring highly detailed images even in the most challenging situations. HDR X enables the camera to capture video across different light levels and without motion blur and artefacts on moving objects. The latest CPP16 platform brings cameras with superb image quality into the IoT era, by offering enhanced processing capabilities and built-in neural processing engine that enables deep learning based IVA Pro video analytics. This advanced analytics technology delivers highly reliable detection of persons and vehicles, even in crowded or challenging environments. With the combination of the device’s flexibility, its easy installation, the exceptional image quality, and the new CPP16 platform, the NBI-7803-AXT is the ideal choice for most mission-critical applications, including city and traffic monitoring, transportation and critical infrastructure.
Features
- Starlight X technology with 1/1.8" 4MP sensor
- HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile to crowded and congested zones
- Electronic image stabilization (EIS) measures the frequency and amplitude of the device’s vibrations to offset their impact on the image
- Easy and flexible installation
SKU  | NBI-7803-AXT |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Bosch |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 10.5-47mm |
| Mount Type | Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | 70 mm x 80 mm x 205 mm |
| Electronic Shutter | Automatic Electronic Shutter (AES); 1/15,000 max; Default shutter |
| Image Device | 1/1.8 inch CMOS; 2.9 μm |
| Image Pixels-Effective | 2688 x 1520 |
| Operating Humidity | 5% – 93% |
| Operating Temperature | -4 °F – 131 °F |
| Angle of View | Horizontal field of view (º) 41.6° – 9.3° Vertical field of view (º) 23.9° – 5.3° |
| Automatic White Balance | 2,000 K – 10,000 K |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
NBI-7803-AXT-Specsheet
