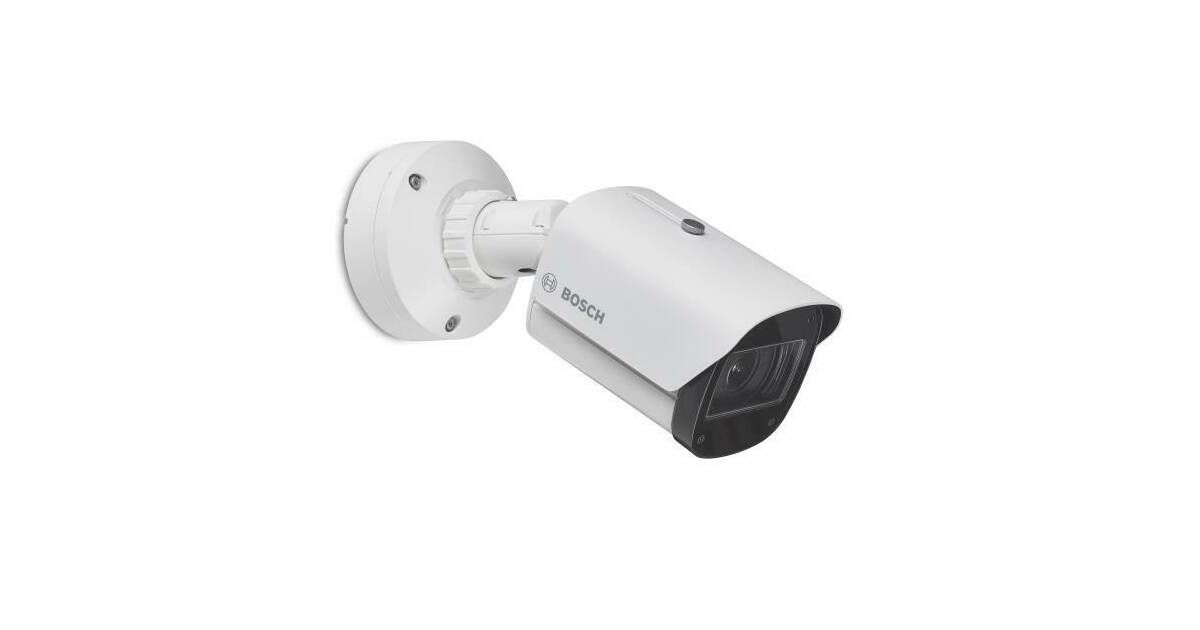

IQsight by Bosch NBE-7704-ALT 8 Megapixel Network Outdoor Bullet Camera with 12-38mm Lens
SKU
NBE-7704-ALT
Model No
NBE-7704-ALT
$2,433.44
Product Highlights
- Starlight X technology for next level low-light performance with maximum detail
- HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
- Powerful long range (850nm) smart IR illumination up to 140 m (459 ft), optional invisible IR (940nm) or white light
- Extremely robust and stable design with exceptional corrosion resistance for any outdoor application including traffic monitoring, critical infrastructure andperimeter security
Speak to an expert
The Bosch NBE-7704-ALT 8 Megapixel Network Outdoor Bullet Camera is engineered for superior performance in challenging outdoor environments. With a rugged design and advanced imaging technologies, it excels in both high and low-light conditions. The camera's 8MP resolution, along with features like Starlight X for low-light sensitivity and HDR X for improved dynamic range, ensures clear and detailed footage for mission-critical applications such as traffic monitoring and perimeter security.
Bosch NBE-7704-ALT Camera Features
- Starlight X Technology: Provides next-level low-light performance, capturing maximum detail even in extreme darkness.
- HDR X: High Dynamic Range ensures detail retention in both bright and dark areas, eliminating motion blur and artefacts.
- Intelligent Video Analytics Pro (IVA Pro): Delivers highly reliable deep-learning detection of persons and vehicles, enhancing situational awareness in various environments.
- Smart IR Illumination: Long-range (850nm) smart IR up to 140 m (459 ft), with optional invisible IR (940nm) or white light for versatile illumination needs.
- Robust Design: Exceptional corrosion resistance ensures durability for outdoor applications, suitable for critical infrastructures like traffic monitoring and perimeter security.
Detailed Specifications for Bosch NBE-7704-ALT
| Model: | Bosch NBE-7704-ALT |
| Resolution: | 8 Megapixels |
| Lens: | 12-38mm |
| Low-Light Technology: | Starlight X |
| Dynamic Range: | HDR X |
| Smart IR Range: | Up to 140 m (459 ft) |
| Analytics: | IVA Pro |
| Protection Class: | IP68 |
| Operating Temperature: | -40°C to +60°C |
SKU  | NBE-7704-ALT |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Bosch |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 12-38mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 24vAC |
| Dimensions (W x H) | 148 mm x 115 mm |
| Electronic Shutter | Automatic Electronic Shutter (AES); 1/15,000 max; Default shutter; 1/1.5625 min |
| Image Device | 1/1.8 inch CMOS |
| Image Pixels-Effective | 1920 x 1080 |
| IR Wavelength | 850 nm |
| Operating Humidity | 5% – 93% |
| Operating Temperature | -40 °C – 70 °C |
| Privacy Zone | 8 |
| S/N Ratio | >55 dB |
| Weatherproof | IP66/Ip67 |
| Angle of View | Field of View wide (H x V) 103° x 53°, Field of View tele (H x V) 48° x 27° |
| Automatic White Balance | 2,500 K – 10,000 K |
| IR Distance | 140m/459ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Mirror | Yes |
| ONVIF | Yes |
