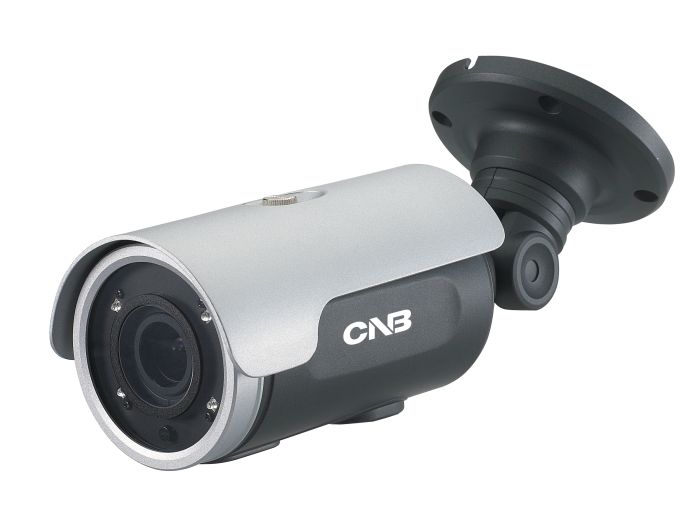

CNB NB52-7PR Network IP 5MP H.265 Bullet IR Camera, 3.6-10mm Lens
SKU
NB52-7PR

CNB Model NB52-7PR

CNB NB52-7PR Network IP 5MP H.265 Bullet IR Camera, 3.6-10mm Lens

  • 5MP
  • 3.6–10mm
  • Night Vision
Free shipping
Model No
NB52-7PR
$557.81
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 5MP H.265 Bullet IR IP Camera
  • 1/1.8″ Progressive scan CMOS Sensor
  • Multi Codec (H.264/H.265/MJPEG)
  • Progressive scan megapixel (5M CMOS)
  • Multi profile streaming (5 different streams per Resolution, Frame, Rate, Codec)

Overview

CNB NB52-7PR is a Multi Codec (H.265/H.264/MJPEG) 5 megapixel IP camera designed for both indoor and outdoor applications, featuring a rugged vandal-proof housing. This camera supports multiple simultaneous video streams which ensure the highest quality service while accommodating lower speed networks. With built-in PoE and analog video output, installation is simplified and cost-effective. Enjoy a remarkable 40-50% reduction in bitrate at the same visual quality with H.265 technology.

CNB NB52-7PR Camera Features

  • 5MP H.265 Bullet IR IP Camera: Delivers high-resolution video quality for clear surveillance.
  • 1/1.8” Progressive scan CMOS Sensor: Ensures superior image quality and performance in various lighting conditions.
  • Multi Codec (H.264/H.265/MJPEG): Provides flexibility in video compression for different storage and bandwidth needs.
  • Progressive scan megapixel (5M CMOS): Captures detailed images with no motion blur, vital for security monitoring.
  • Multi profile streaming: Supports 5 different streams per resolution, frame rate, and codec for versatile application.
  • Digital PTZ, video crop: Allows for easy adjustments to focus on specific areas in the video feed.
  • Analog video output (CVBS): Offers additional connectivity options to existing surveillance systems.
  • Built-in standard PoE: Simplifies installation by using a single cable for both power and data transmission.
  • Two-way audio communication: Facilitates direct communication and interaction through the camera.
  • Build-in D/N (TDN), Super IR LED: Enables clear night vision capabilities, enhancing security in low-light conditions.
  • Compact design & Easy installation: Streamlined design makes it easier to install in a variety of locations.
  • Vandal proof, Weather proof (IP66): Ensures durability and reliability in challenging environmental conditions.

CNB NB52-7PR Detailed Specifications

ModelCNB NB52-7PR
Resolution5MP
Sensor Type1/1.8” Progressive scan CMOS
Video CodecH.265/H.264/MJPEG
Lens3.6-10mm
IR RangeUp to 30 meters
AudioTwo-way audio communication
Power SupplyBuilt-in PoE
Protection RatingIP66 (Vandal proof, Weather proof)
DimensionsCompact design

Built-in Functions

  • Auto Gain Control
  • Day/Night
  • Automatic White Balance
  • Motion Detection Tracking
  • Wide Dynamic Range

Specifications

SKU  NB52-7PR
Features  Auto Gain Control, Automatic White Balance, Day/Night, Motion Detection Tracking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  CNB
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    0~60 Feet
Resolution    5 Megapixel
Lens Type    Varifocal
Lens Size    3.6-10mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG
Durability    Indoor, Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  Camera : Ø99mm x 252.7mm
Image Device    Progressive scan 1/1.8 inch CMOS 5M pixels
IR LEDs  4EA
Minimum Scene Illumination  0.1Lux (Color, DSS On), 0.05 Lux (IR LED On)
Operating Humidity    8 ~ 80% RH
Operating Temperature    -10℃ ~ 50℃
Protocols  IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS
S/N Ratio  50dB or more
Weatherproof    IP66
Synchronization  Internal
Motion Detection Tracking    3 regions
Automatic White Balance    AWB (2,000K ~ 10,000K)
