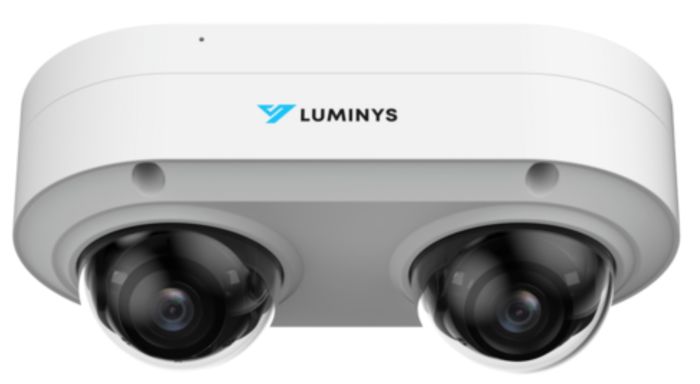

Luminys N9P-4RA2 2 X 4 Megapixel Network IP LumiFlex 360° & 180° Camera with 2.8mm Lens
SKU
N9P-4RA2
Model No
N9P-4RA2
$699.98
Product Highlights
- 2 x 4MP Dual-Sensor Dome Housing
- 2.8 mm Fixed Lenses
- LumiFlex
- Video Content Analytics: Line Crossing, Intrusion
- Intelligent Motion Detection (iMD)
Speak to an expert
The N9P-4RA2 is part of Luminys’s specialty series, designed to enhance operational efficiency while meeting the highest security standards. Its advanced technology provides increased situational awareness and comprehensive security solutions, making it ideal for various applications.
Luminys N9P-4RA2 Camera Features
- 2 x 4MP Dual-Sensor Dome Housing: Offers enhanced image clarity and detail, ensuring effective monitoring across expansive areas.
- 2.8 mm Fixed Lenses: Provides a wide field of view, capturing more of the environment in a single frame.
- LumiFlex: An innovative feature that optimizes video quality in diverse lighting conditions, ensuring reliability in all scenarios.
- Video Content Analytics: Line Crossing, Intrusion: Advanced analytics for proactive security, allowing for real-time alerts and improved incident response.
- Intelligent Motion Detection (iMD): Reduces false alarms by distinguishing between genuine movement and background motion.
- LumiDesertPro and LumiPolarPro: Specialized technologies that enhance performance in extreme temperatures, ensuring operational reliability in any environment.
Detailed Specifications for Luminys N9P-4RA2
| Model | N9P-4RA2 |
| Type | Dual-Sensor Dome Camera |
| Resolution | 4MP per sensor |
| Lens Type | Fixed 2.8 mm |
| Analytics Features | Line Crossing, Intrusion Detection |
| Intelligent Motion Detection | Yes |
| Environmental Ratings | LumiDesertPro and LumiPolarPro for extreme conditions |
SKU  | N9P-4RA2 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Pole, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 164.0 mm x 84.0 mm x 69.4 mm (6.46 in. x 3.31 in. x 6.7 in.) |
| Electronic Shutter | Automatic, Manual 1/3 s to 1/100,000 s |
| Image Device | Dual 4MP 1/2.7-in. CMOS sensor |
| Minimum Scene Illumination | Color: 0.0007 Lux at F1.6 , 0 Lux With IR Illumination On |
| Operating Humidity | < 95% RH (Non-Condensing) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Power Consumption | Maximum: 13.0 W , Standard: 4.8 W |
| Protocols | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1x, RTSP, DDNS, P2P, SMTP, RTMP, PPPoE, UPnP, SNMP, Bonjour, QoS, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, NTP, NFS |
| S/N Ratio | > 56 dB |
| Weatherproof | IP67, IK10 |
| Digital Noise Reduction | 3D NR |
| Mirror | Supported |
| Angle of View | Horizontal: 101° , Vertical: 54° , Diagonal: 120° |
| Motion Detection Tracking | Supported with Alarms for Vehicles and Humans |
| IR Distance | 30.5m/100ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
