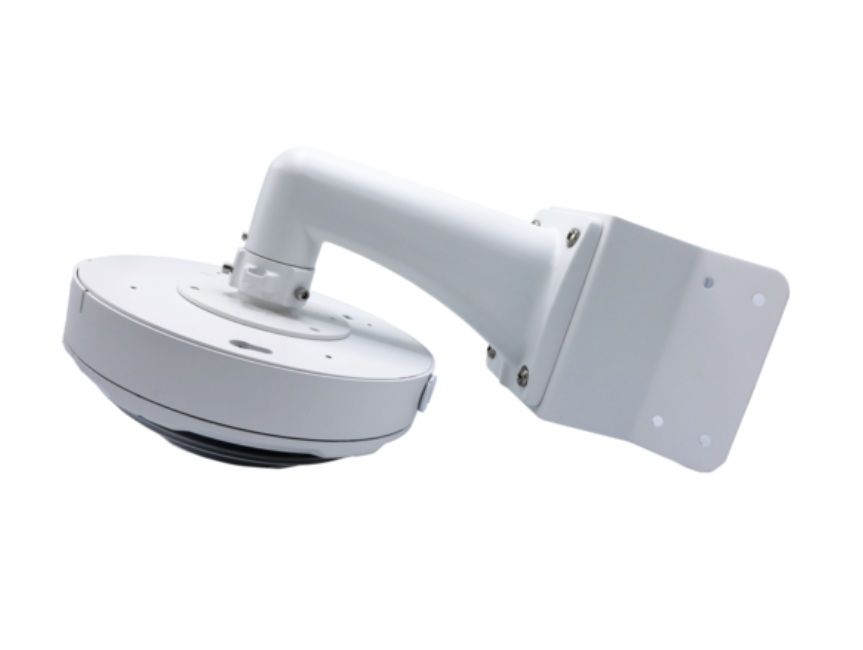

Luminys N9P-20RAV 4 X 5 Megapixel Network IP 360° & 180° Camera with 2.8-12mm Lens
SKU
N9P-20RAV
Model No
N9P-20RAV
$1,776.89
Product Highlights
- Captures 180°, 270°, and 360° Unstitched Video
- 2.8 mm to 12.0 mm Motorized Vari-Focal Lens
- Video Content Analytics+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
- LumiAnalytics1: Face Detection, People Counting, Smart Object Detection
- LumiFlex
Speak to an expert
The N9P-20RAV is part of Luminys’s N9 Specialty series. N9 series devices are designed to improve operations and surpass today’s highest security standards, providing increased situational awareness and comprehensive security.
Key Features
- Wide Angle Capture: Captures 180°, 270°, and 360° unstitched video to ensure comprehensive coverage of large areas, minimizing blind spots.
- Versatile Lens: 2.8 mm to 12.0 mm motorized vari-focal lens allows for customizable zoom and focus, adapting to various surveillance needs.
- Advanced Analytics: Video Content Analytics+ features like line crossing, intrusion, loitering, and parking detection improve security response times and reduce false alarms.
- Intelligent Recognition: LumiAnalytics1 provides face detection, people counting, and smart object detection, facilitating enhanced monitoring and data analysis.
- LumiFlex: Offers flexible mounting options and configurations for easy installation in diverse environments.
- LumiDesertPro: Enhances performance in outdoor settings, ensuring reliable operation even in challenging weather conditions.
Luminys N9P-20RAV Detailed Specifications
| Model | N9P-20RAV |
| Series | N9 Specialty |
| Video Capture | 180°, 270°, 360° unstitched video |
| Lens Type | Motorized vari-focal lens (2.8 mm - 12.0 mm) |
| Analytics Features | Video Content Analytics+: Line Crossing, Intrusion, Loitering, Parking Detection |
| Analytics Intelligence | LumiAnalytics1: Face Detection, People Counting, Smart Object Detection |
| Installation Flexibility | LumiFlex mounting options |
| Performance Enhancer | LumiDesertPro |
SKU  | N9P-20RAV |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |

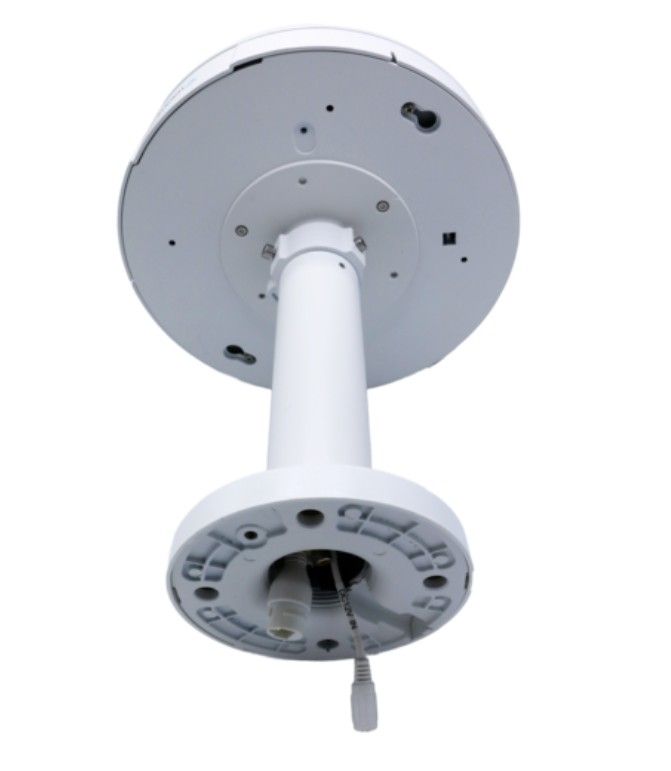

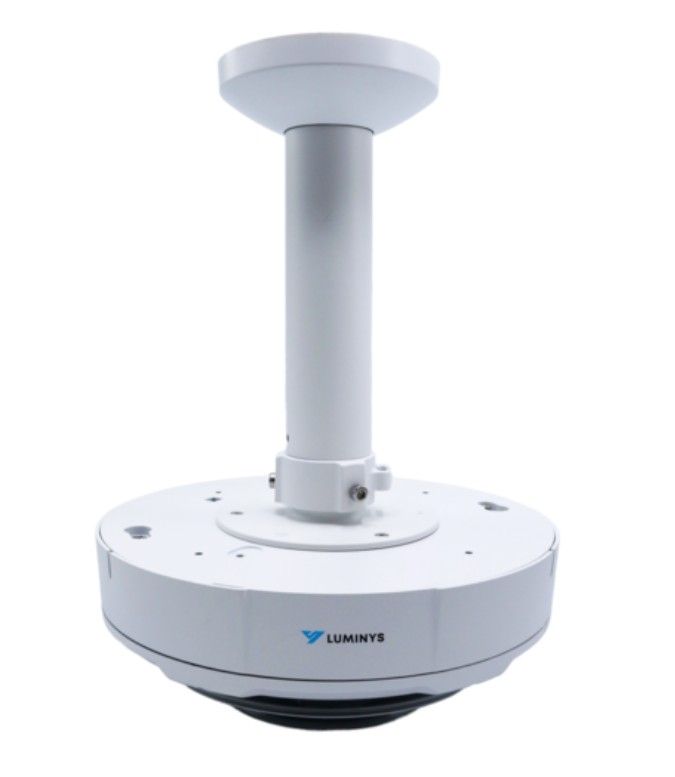

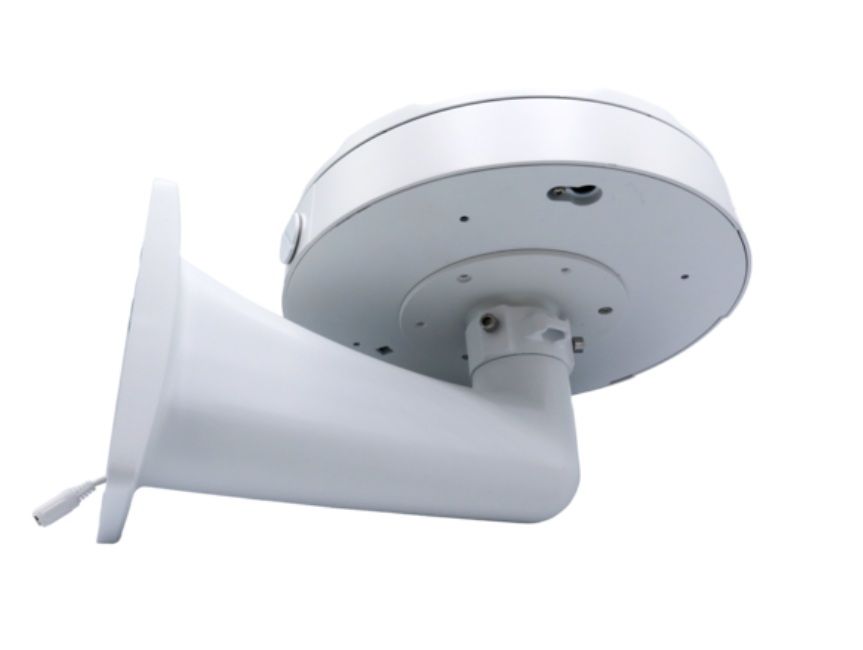

| Mount Type | Ceiling, Pole, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+, 12vDC |
| Dimensions (W x H) | 111.3 mm × Φ286.1 mm (4.4 in. × Φ11.3 in.) |
| Electronic Shutter | Automatic, Manual 1/30 s to 1/100,000 s |

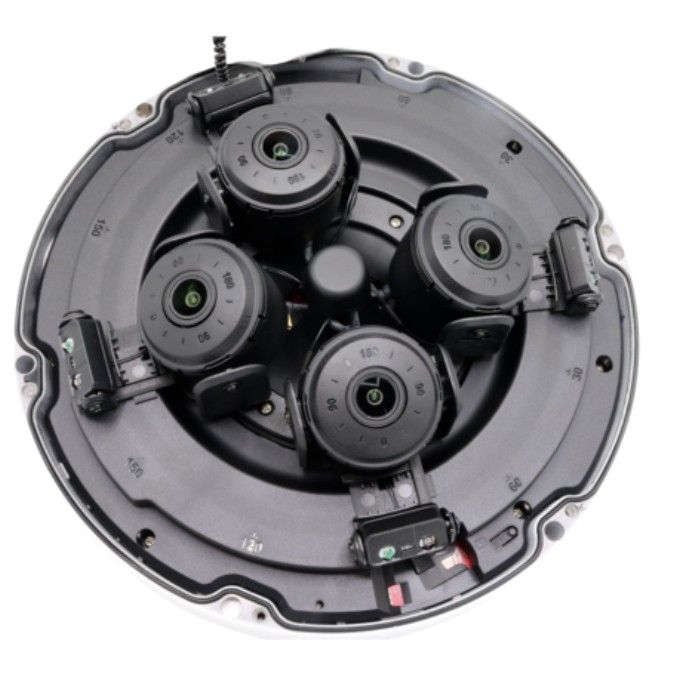

| Image Device | Four (4) 1/2.7-in. 5MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.005 Lux at F1.7 , Black and White: 0.0005 Lux at F1.7 0 Lux With IR Illumination On |
| Operating Humidity | < 95% RH (Non-Condensing) |
| Operating Temperature | -30 °C to 60 °C (-22°F to 140°F) |
| Power Consumption | < 24.7 W |
| Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP; NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x |
| S/N Ratio | > 56 dB |
| Weatherproof | IP67, IK10 |
| Digital Noise Reduction | 3D NR |
| Mirror | Supported |
| Angle of View | Horizontal: 100° to 42° , Vertical: 74° to 32° , Diagonal: 133° to 53° |
| Rotation Angle | 0° to 355° |
| IR Distance | 30m/98.4ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
