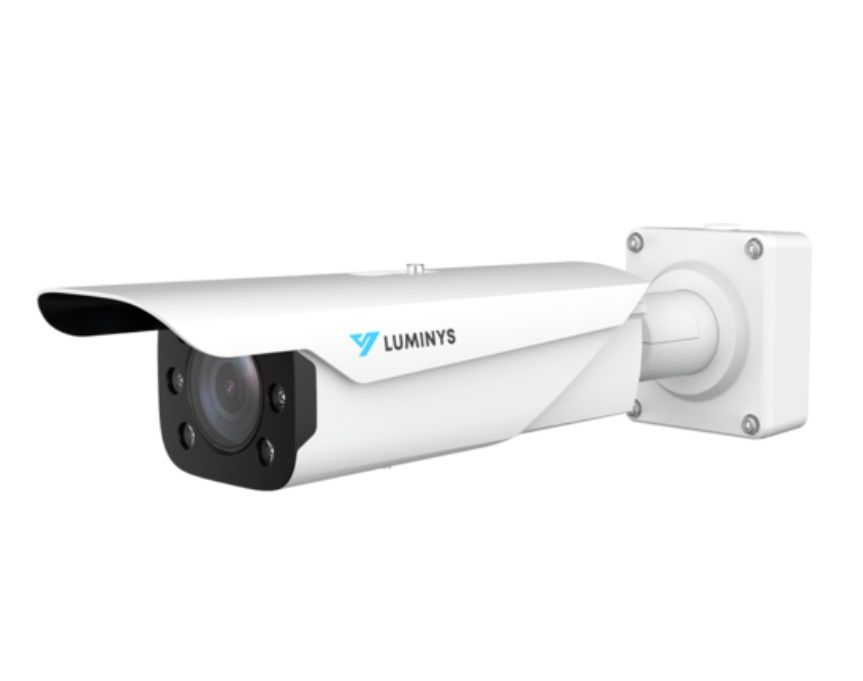

Luminys N9L-4RAL 4 Megapixel Network IP License Plate Camera with 10-50mm Lens
SKU
N9L-4RAL

Luminys Model N9L-4RAL

Luminys N9L-4RAL 4 Megapixel Network IP License Plate Camera with 10-50mm Lens

  • 4MP
  • 10–50mm
  • Night Vision
Free shipping
Model No
N9L-4RAL
$914.29
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 4MP Bullet Housing
  • 10 mm to 50 mm Motorized Lens
  • License Plate Recognition Speed up to 60 kmh (37 mph)
  • IR Distance up to 98 ft
  • ANPR with 99% Accuracy

Overview

The N9L-4RAL is part of Luminys’s N9 series of specialty security devices. Designed to improve operations and go beyond today’s highest security standards, this LPR camera provides an efficient, cost-effective way to manage vehicle access and traffic flow at key access points. The camera’s intelligent algorithms can accurately identify vehicle details. The LPR can categorize the type of vehicle (large bus, large truck, medium truck, sedan, van, small truck, medium bus, SUV, MPV, pickup truck) and if there are front-seat occupants. LumiTrajectory captures and displays the vehicle’s license plate number and path through the monitored area. The camera can recognize plates from the United States and Canada and up to 12 vehicle colors (gray, black, white, silver, blue, green, purple, red, orange, pink, brown, yellow). The Luminys LPR Gate System can automatically manage vehicle access at both entry and exit points. The LPR (license plate recognition) feature can also be used to control gate access based on vehicle identification. This camera is ideal for vehicle detection and identification in applications such as parking lots, community roads, toll gates, and more.

Luminys N9L-4RAL Camera Features

  • 4MP Bullet Housing: Provides high-resolution imaging for clear and detailed visuals, enhancing surveillance capabilities.
  • 10 mm to 50 mm Motorized Lens: Offers flexibility to adjust focal length for various monitoring needs, enabling optimization of camera positioning.
  • License Plate Recognition Speed up to 60 kmh (37 mph): Ensures accurate capture of vehicle license plates even at high speeds, increasing operational efficiency.
  • IR Distance up to 98 ft: Supports nighttime and low-light operations, ensuring 24/7 surveillance capability.
  • ANPR with 99% Accuracy: Delivers reliable license plate recognition, significantly reducing false positives and improving access control.

Detailed Specifications for Luminys N9L-4RAL

Camera Type4MP Bullet Camera
Lens TypeMotorized Lens (10 mm to 50 mm)
Maximum Speed60 kmh (37 mph)
IR RangeUp to 98 ft
Recognition Accuracy99% Accuracy for ANPR
Vehicle Category RecognitionMultiple categories (e.g., sedan, SUV, truck, etc.)
Color RecognitionDetects up to 12 colors

Built-in Functions

  • Audio
  • Auto Gain Control
  • Digital Noise Reduction
  • Automatic White Balance
  • Wide Dynamic Range
  • ONVIF

Specifications

SKU  N9L-4RAL
Features  Audio, Auto Gain Control, Automatic White Balance, Digital Noise Reduction, ONVIF, Weather Resistant, Wide Dynamic Range
Manufacturer  Luminys
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    4 Megapixel
Lens Type    Varifocal
Lens Size    10-50mm
Mount Type  Ceiling, Pole, Wall
Compression Method    H.264H, H.264M, M-JPEG, H.265
Durability    Weather Resistant
Voltage  PoE+, 12vDC
Dimensions (W x H)  497.4 × 121.6 × 130.0 mm (19.6 × 4.8 × 5.1 in.)
Electronic Shutter    Automatic, Manual 1/25 s–1/10,000 s
Image Device    1/1.8-in. 4MP Progressive CMOS
Minimum Scene Illumination  0.002 Lux (Built-In Illuminator On)
Operating Humidity    10 to 90% RH (Non-Condensing)
Operating Temperature    -30 to 65 °C (-22 to 149 °F)
Power Consumption  < 20 W
Weatherproof    IP67
Digital Noise Reduction    3D NR, Video 3D NR, Video Spatial 3D NR, Video Temporal 3D NR
Angle of View    Horizontal: 40.55° (W)–9.33° (T) , Vertical: 22.7° (W)–5.3° (T) , Diagonal: 46.6° (W)–10.63° (T)
IR Distance  30m/98.4ft
