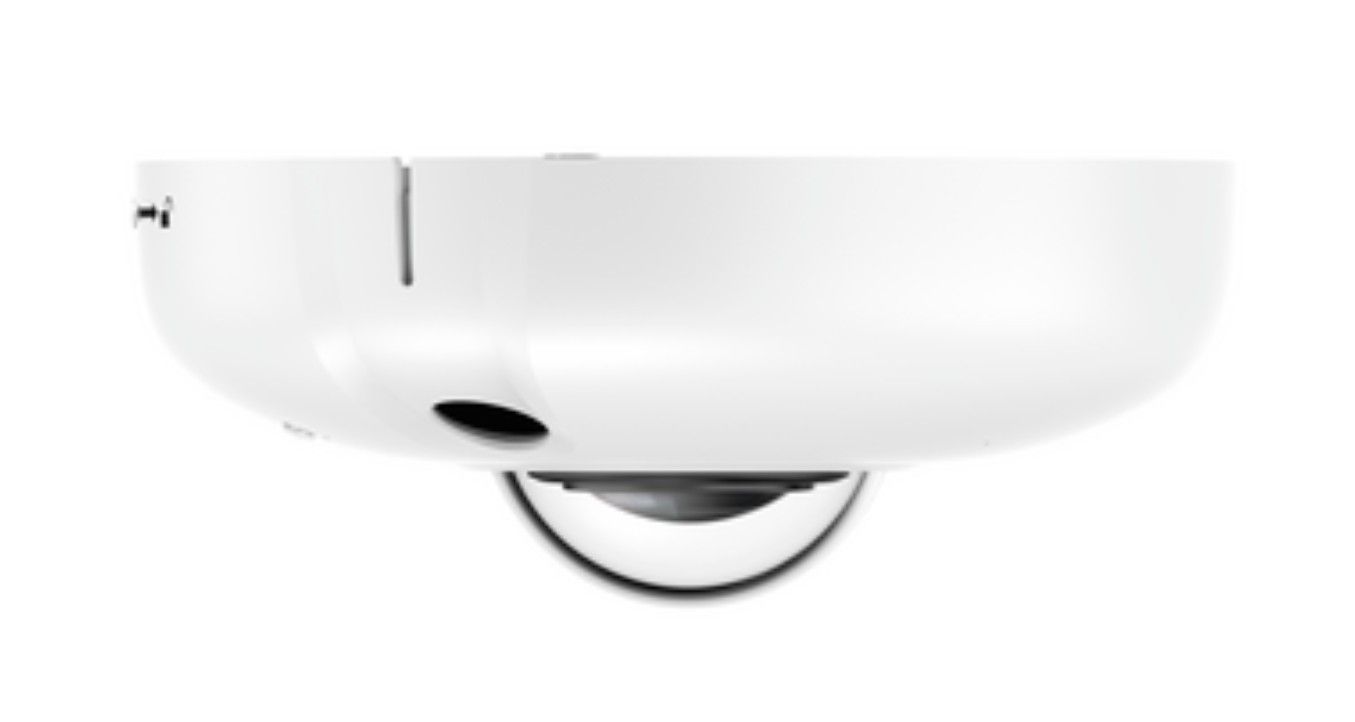

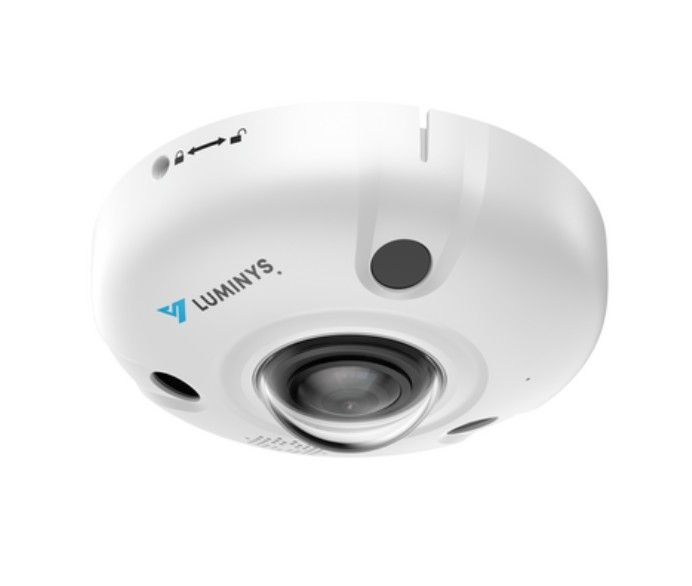

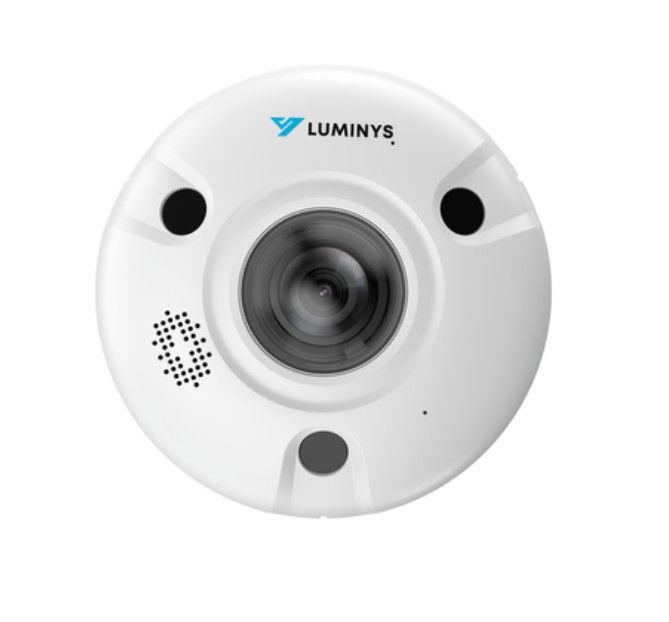

Luminys N9F-8RA1 8 Megapixel Network IP 360° & 180° Camera with 1.8mm Lens
- 8MP Fisheye Housing
- 360° or 180° Stitched Single-sensor
- 1.85 mm Lens
- IR Distance 33 ft
- Video Content Analytics: Line Crossing and Intrusion
Luminys N9F-8RA1 Camera Features
The N9F-8RA1 is part of Luminys’s N9 series of specialty security devices. This fisheye camera is programmed with LumiAnalytics People Counting and Heat Map to track target behavior and traffic. These analytics can help determine upticks and breaks in activity and if targets are crowding a specific area. This information is important for optimizing staffing and layout and preventing crowd surges and traffic jams. Users can also view queue management analytics. Queue management creates an alert when lines become long. Queue management reports can be generated for important insight into operational efficiency and data-driven decisions. Designed to improve operations and go beyond today’s highest security standards, the N9F8RA1 gives you increased situational awareness for comprehensive security and important analytics for improved business.
Features
- 8MP Fisheye Housing: Captures high-resolution images for detailed surveillance and monitoring.
- 360° or 180° Stitched Single-sensor: Provides versatile viewing angles to eliminate blind spots around the monitored area.
- 1.85 mm Lens: Offers a wide field of view, maximizing coverage with minimal blind spots.
- IR Distance 33 ft: Ensures visibility in low-light conditions, enhancing security 24/7.
- Video Content Analytics: Line Crossing and Intrusion: Automates monitoring and alerts for heightened security responsiveness.
- People Counting, Queue Management, Heat Map: Enables data-driven decisions to optimize business operations and enhance customer experiences.
Delineated Specifications for Luminys N9F-8RA1
| Camera Type | 8MP Fisheye Camera |
| Field of View | 360° or 180° |
| Lens Diameter | 1.85 mm |
| IR Range | Up to 33 ft |
| Analytics Features | People Counting, Queue Management, Heat Map, Line Crossing, Intrusion |
| Operating Environment | Designed for high-security applications |
SKU  | N9F-8RA1 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.8mm |
| Mount Type | Ceiling, Pole, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+, 12vDC |
| Dimensions (W x H) | 59.8 mm × Φ 149.8 mm (2.4 in. × Φ 5.9 in.) |
| Electronic Shutter | Automatic, Manual 1/3 s to 1/100,000 s |
| Image Device | 1/1.7-in. 8MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.01 Lux (F2.0) , Black/White: 0.001 Lux (F2.0) 0 Lux With IR Light On |
| Operating Humidity | 0 to 95% RH |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Protocols | IPv4, IPv6, TCP, UDP, RTP, RTCP, RTSP, RTMP, NTP, HTTP, ARP, SMTP, FTP, SFTP. DHCP, DNS, DDNS, QoS, UPnP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P |
| S/N Ratio | > 56 dB |
| Weatherproof | IP67, IK10 |
| Digital Noise Reduction | 3D NR |
| Angle of View | Horizontal: 185° , Vertical: 180° |
| IR Distance | 10m/32.81ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
N9F-8RA1-Specsheet N-Network-Camera-User-Manual.pdf
