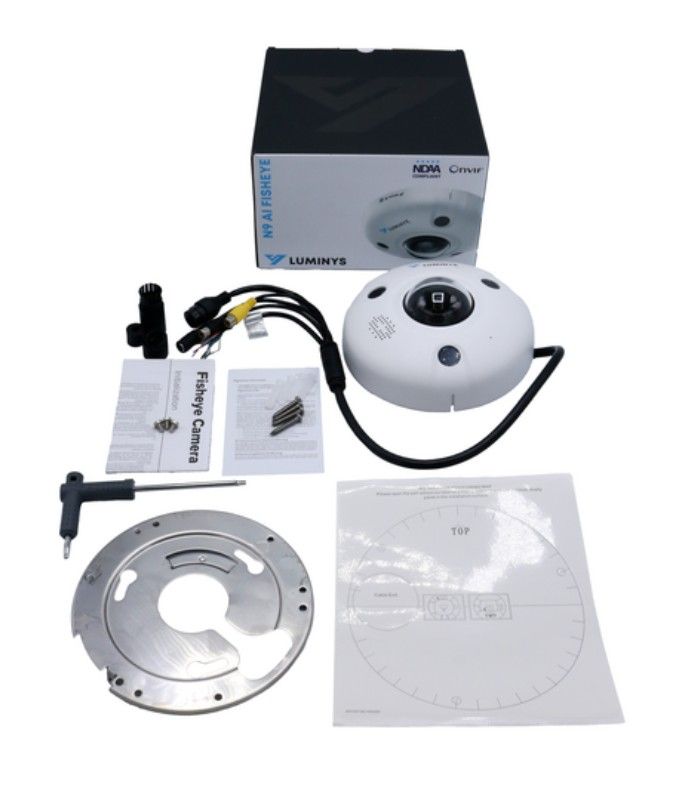

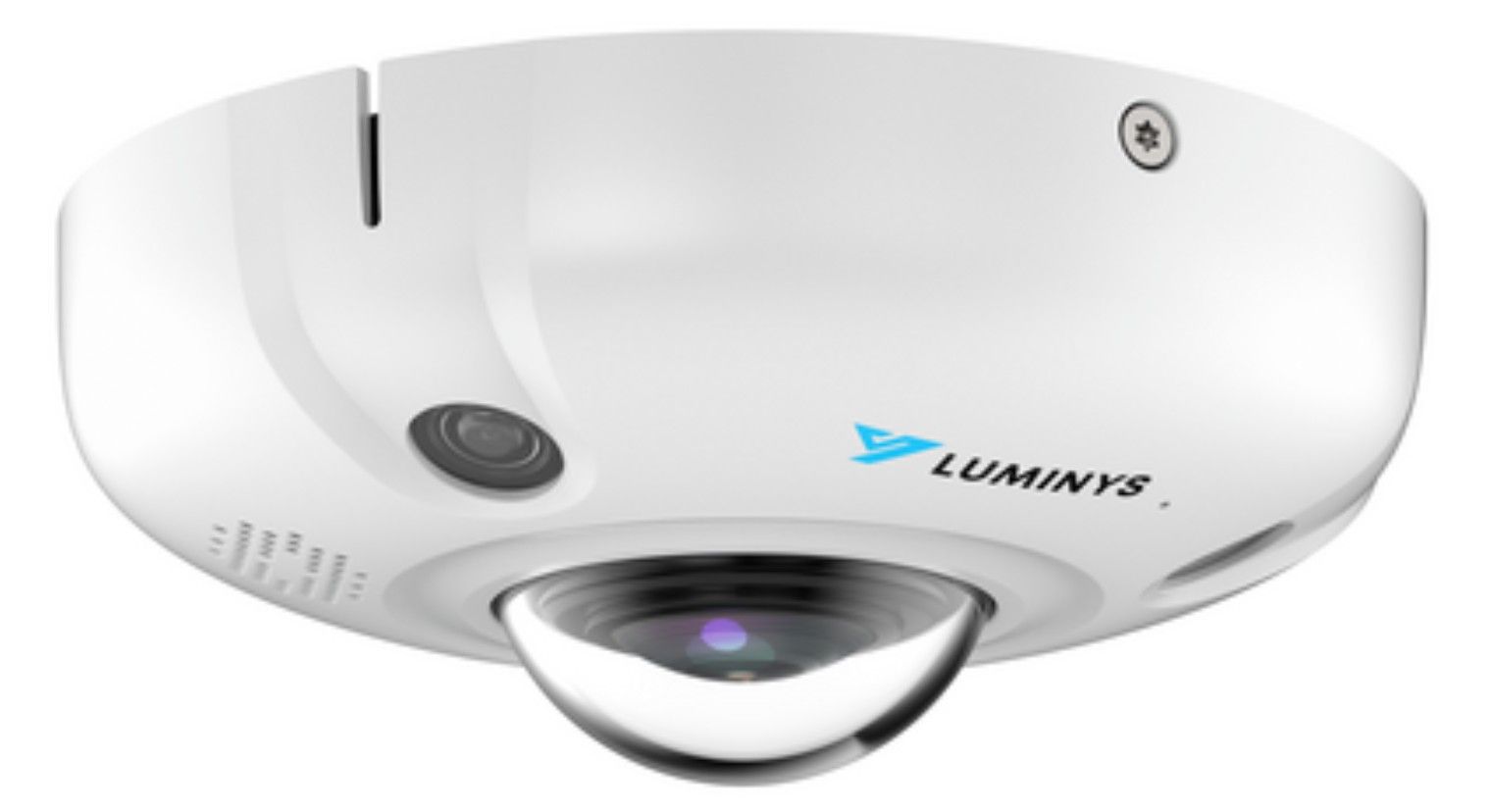

Luminys N9F-12RA1 12 Megapixel Network IP 360° & 180° Camera with 1.8mm Lens
- 12MP Fisheye Dome Housing
- 360° or 180° Stitched Single-sensor
- 1.85 mm Lens
- IR Distance 33 ft
- Video Content Analytics: Line Crossing and Intrusion
Luminys N9F-12RA1 Camera Features
The N9F-12RA1 is part of Luminys’s N9 series of specialty security devices.
This fisheye camera is programmed with LumiAnalytics People Counting and Heat Map to track target behavior and traffic. These analytics can help determine upticks and breaks in activity and if targets are crowding a specific area. This information is important for optimizing staffing and layout and preventing crowd surges and traffic jams.
Users can also view queue management analytics. Queue management creates an alert when lines become long. Queue management reports can be generated for important insight into operational efficiency and data-driven decisions.
Designed to improve operations and go beyond today’s highest security standards, the N9F12RA1 gives you increased situational awareness for comprehensive security and important analytics for improved business.
Features
- 12MP Fisheye Dome Housing: High resolution provides detailed images for better security monitoring.
- 360° or 180° Stitched Single-sensor: Offers greater coverage options to fit various surveillance needs.
- 1.85 mm Lens: Wide lens allows for expansive viewing angles, capturing more area in a single frame.
- IR Distance 33 ft: Enables night vision capabilities for 24/7 security monitoring.
- Video Content Analytics: Features line crossing and intrusion detection for proactive security alerts.
- LumiAnalytics: Incorporates people counting, queue management, and heatmap functionalities for operational insights.
Detailed Camera Specifications for Luminys N9F-12RA1
| Camera Type | Fisheye Dome |
| Resolution | 12MP |
| Field of View | 360° or 180° |
| Lens Type | 1.85 mm |
| IR Distance | 33 ft |
| Analytics Features | Line Crossing, Intrusion, People Counting, Queue Management, Heat Map |
SKU  | N9F-12RA1 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 12 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.8mm |
| Mount Type | Ceiling, Pole, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+, 12vDC |
| Dimensions (W x H) | 59.8 mm × Φ149.8 mm (2.35 in. × Φ5.90 in.) |
| Electronic Shutter | Automatic, Manual 1/3 s to 1/100,000 s |
| Image Device | 1/1.7-in. 12MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.01 Lux (F2.0) , Black/White: 0.001 Lux (F2.0) 0 Lux With IR Light On |
| Operating Humidity | 0 to 95% RH |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Protocols | IPv4, IPv6, TCP, UDP, RTP, RTCP, RTSP, RTMP, NTP, HTTP, ARP, SMTP, FTP, SFTP. DHCP, DNS, DDNS, QoS, UPnP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P |
| S/N Ratio | > 56 dB |
| Weatherproof | IP67, IK10 |
| Digital Noise Reduction | 3D NR |
| Angle of View | Horizontal: 185° , Vertical: 180° |
| IR Distance | 10m/32.81ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
N9F-12RA1-Specsheet N-Network-Camera-User-Manual.pdf
