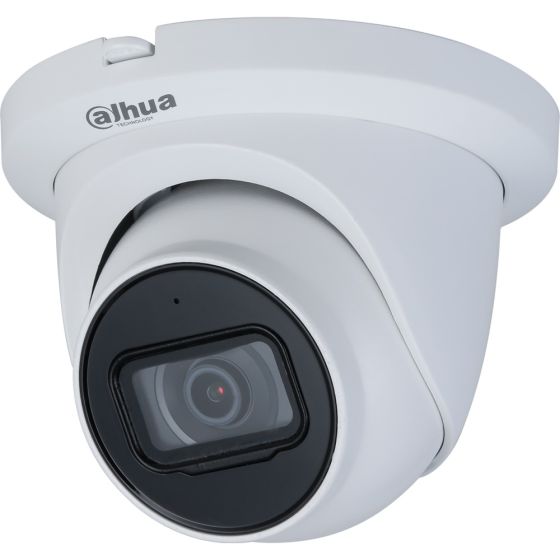

Dahua N85DJ62 8 Megapixel ePoE Starlight+ Network Fixed Eyeball Camera with 2.8mm Lens
SKU
N85DJ62
Model No
N85DJ62
$221.99
Product Highlights
- 1/1.8-in. 8 MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- AI Coding, Smart H.265+, and Smart H.264+ Video Compression
- 8 MP (3840 x 2160) at 30 fps, 2.8 mm Fixed Lens
- Enhanced Power and Data Transmission Distances (ePoE)
Speak to an expert
The Dahua N85DJ62 8 Megapixel ePoE Starlight+ Network Fixed Eyeball Camera is designed for complex surveillance applications, offering advanced Analytics+ functions for superior performance. With its excellent low-light capabilities, robust construction, and intelligent video analysis, this camera is perfect for environments requiring both high-detail imaging and reliable operation in various conditions, making it an invaluable tool for security professionals.
Dahua N85DJ62 + Camera Features
- 1/1.8-in. 8 MP Progressive-scan CMOS Sensor: Provides high-resolution images for clear video surveillance and detailed scene analysis.
- Triple-stream Encoding: Allows for multiple video streams at different resolutions, enabling flexible storage and viewing options.
- AI Coding, Smart H.265+, and Smart H.264+ Video Compression: Enhances storage efficiency while maintaining high video quality, reducing bandwidth usage.
- 8 MP (3840 x 2160) at 30 fps, 2.8 mm Fixed Lens: Captures high frame rate video for smooth playback, perfect for fast-moving scenes.
- Enhanced Power and Data Transmission Distances (ePoE): Extends installation options by allowing longer cable runs without sacrificing performance.
- Starlight+ Technology for Low-light Applications: Ensures clear, color images even in darkness, improving visibility during nighttime operations.
- Analytics+ Functions: Features like Perimeter Protection, People Counting, Queue Management, Smart Motion Detection+, and Face Detection enhance security and operational insights.
- Built-in Microphone: Offers audio monitoring capabilities, adding contextual information to video surveillance.
- ArcticPro Series Camera: Operates reliably in extreme temperatures, down to –40° C (–40° F).
- IP67 Ingress Protection: Guarantees durability against dust and water, making it suitable for outdoor use in harsh environments.
- Maximum IR LED Distance 30 m (98.43 ft): Delivers effective night vision performance for monitoring large areas in low-light conditions.
Dahua N85DJ62 + Detailed Camera Specifications
| Sensor Type | 1/1.8-in. 8 MP Progressive-scan CMOS |
| Video Resolution | 8 MP (3840 x 2160) |
| Frame Rate | 30 fps |
| Lens Type | 2.8 mm Fixed Lens |
| Power Transmission | ePoE technology |
| Low-light Capability | Starlight+ Technology |
| Weather Resistance | IP67 |
| Operating Temperature | –40° C to +60° C (–40° F to +140° F) |
| IR Distance | Up to 30 m (98.43 ft) |
| Audio Capabilities | Built-in Microphone |
SKU  | N85DJ62 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Dahua |
| Connection Type | Wired |
Infrared Distance  | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264B, H.264H, H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto, Manual, Gain Priority, Shutter Priority |
| Dimensions (W x H) | ø106.0 mm x 99.20 mm (ø4.17 in. x 3.91 in.) |
| Electronic Shutter | Auto, Manual, 1/3 s to 1/100,000 s |
| Image Device | 1/1.8-in. 8 MP CMOS |
| Image Pixels-Effective | 3840(H) x 2160(V) |
| IR LEDs | Two (2) |
| Minimum Scene Illumination | Color: 0.004 lux at F1.4 (30 IRE) B/W: 0.0004 lux at F1.4 (30 IRE) 0 lux at F1.4 4 (with IR on) |
| Operating Humidity | Less than 95% RH |
| Operating Temperature | –40° C to +60° C (–40° F to +140° F) |
| Power Consumption | 12 VDC Standard: 3.6 W with IR ON: 5.8 W, PoE Standard: 4.4 W with IR ON: 6.3 W |
| Privacy Zone | Off, On (8 Areas, Rectangular) |
| Protocols | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x |
| S/N Ratio | > 50 dB |
| Scanning System | Progressive |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Mirror | Off, On |
| Angle of View | Horizontal: 113°, Vertical: 60°, Diagonal: 131° |
| Rotation Angle | 0˚ to 355˚ |
| Motion Detection Tracking | Off, On (4 Zones, Rectangular) |
| Back Light Compensation | BLC, HLC, True WDR (120 dB), SSA |
| Automatic White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| IR Distance | 30m/98.43 ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
