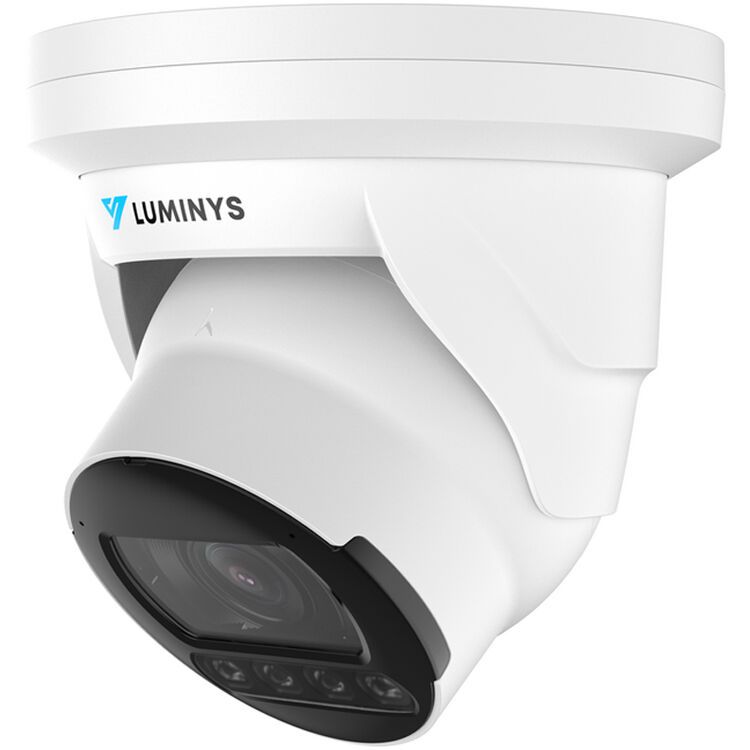

Luminys N5T-8LAV 8 Megapixel Network IP LumiLuxSmart Turret Camera with 2.7-12mm Lens

SKU
N5T-8LAV
Model No
N5T-8LAV
$432.46
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 8MP Turret Housing
  • 2.7 mm to 12 mm Motorized Lens
  • LumiLuxSmart — IR and White-Light LEDs
  • Video Content Analytics+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
  • iMD

Luminys is lighting the way for flexible low-light solutions with the LumiLuxSmart N5 Mainstream Series, the industry’s most extensive dual-functioning camera lineup.

LumiLuxSmart cameras allow users to switch between three low-light functionalities: covert IR-only mode, nighttime white-light LED lighting, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution.

The LumiLuxSmart series provide unparalleled customization and flexibility to meet the needs of today’s evolving security market.

Features

  • 8MP Turret Housing: High-resolution imaging ensures crystal-clear video quality for superior surveillance.
  • 2.7 mm to 12 mm Motorized Lens: Offers adjustable focal lengths for versatile monitoring options.
  • LumiLuxSmart — IR and White-Light LEDs: Enables seamless switching between infrared and visible light for adaptable security solutions.
  • Video Content Analytics+: Advanced analytics include Line Crossing, Intrusion, Loitering Detection, and Parking Detection to enhance security response.
  • iMD: Intelligent motion detection reduces false alarms and increases efficiency in monitoring activities.
  • LumiSearch+: Quickly searches through video footage to locate specific events or individuals, saving valuable time.
  • LumiAnalytics: Provides essential features like Face Detection, People Counting, Queue Management, Smart Object Detection, and Heat Map for comprehensive analysis.
  • LumiPower: Maintains high performance while optimizing power consumption for longer operational life.
  • LumiDesertPro: Specially designed for challenging environments, ensuring robust performance in extreme conditions.

Luminys LumiLuxSmart N5 Detailed Specifications

FeatureDetails
Camera Type8MP Turret
Lens TypeMotorized 2.7 mm to 12 mm
Low-Light FunctionalityIR-only, White-Light, Dual-Illumination
Analytics CapabilitiesLine Crossing, Intrusion, Loitering, Parking Detection
Additional FeaturesFace Detection, People Counting, Queue Management, Smart Object Detection, Heat Map
Power ConsumptionEnergy-efficient design
Environmental ResistanceDurable for extreme conditions
SKU  N5T-8LAV
Features  Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range, Facial Recognition
Manufacturer  Luminys
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    8 Megapixel
Lens Type    Varifocal
Lens Size    2.7-12mm

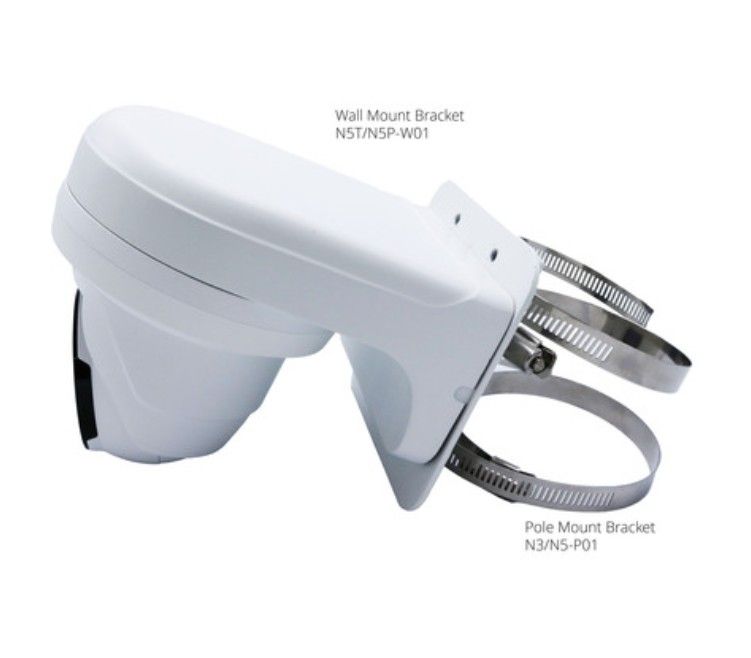

Mount Type  Ceiling, Pole, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  142.0 mm × 142.0 mm (5.6 in. × 5.6 in.)
Electronic Shutter    Automatic, Manual 1/3 s to 1/100,000 s
Image Device    1/1.8-in. 8MP Progressive CMOS
Minimum Scene Illumination  Color: 0.0007 Lux at F1.2 ,Black/White: 0.0004 Lux at F1.2 0 Lux With IR Light On
Operating Humidity    < 95% RH (Non-Condensing)
Operating Temperature    -30 °C to 60 °C (-22 °F to 140 °F)
Power Consumption  12 VDC: Maximum: 12.1 W, Normal: 5.0 W , PoE: Maximum: 12.9 W, Normal: 5.7 W
Protocols  IPv4, IPv6, HTTP, TCP, RTSP, RTMP, SNMP, FTP, NAS, DHCP, DDNS, QoS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP
S/N Ratio  > 50 dB
Weatherproof    IP67
Digital Noise Reduction    3D NR
Mirror    Supported
Angle of View    Horizontal: 112° to 48° , Vertical: 58° to 27° , Diagonal: 137° to 55°
Rotation Angle0° to 360°
Motion Detection Tracking    Supported with Alarms for Vehicles and Humans
IR Distance  40m/131.2ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
