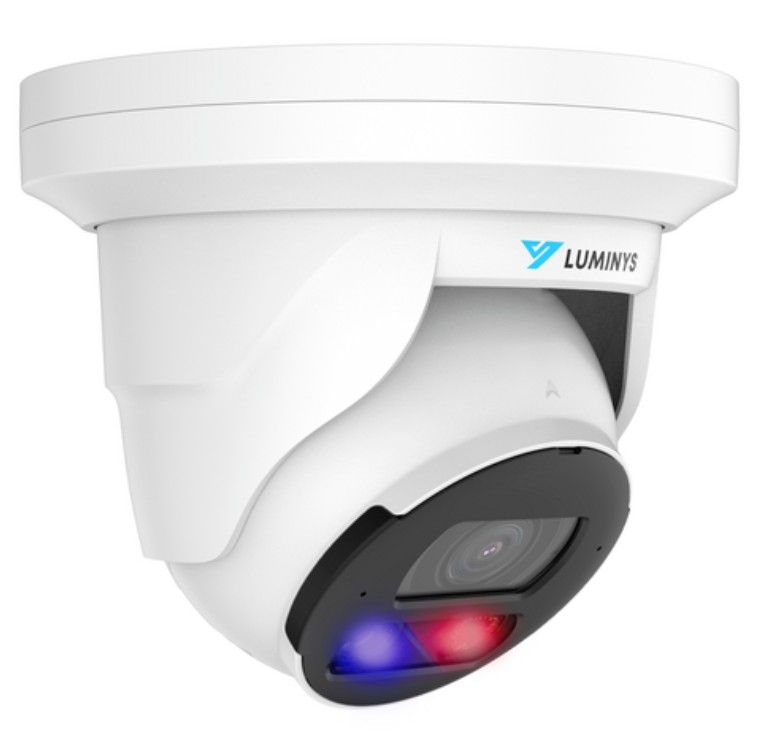

Luminys N5T-8DA2 8 Megapixel Network IP LumiDeterrent Turret Camera with 2.8mm Lens
SKU
N5T-8DA2
Model No
N5T-8DA2
$338.45
Product Highlights
- 8MP Turret Housing
- 2.8 mm Lens
- LumiLuxSmart — IR and White-Light LEDs
- LumiDeterrent With Red/Blue Lights and Built-In Speaker
- Video Content Analytics: Line Crossing, Intrusion, Loitering Detection
Speak to an expert
The N5T-8DA2 is part of Luminys’s Mainstream series of security devices, which is crafted to provide advanced security solutions tailored to the dynamic needs of today’s market. This model incorporates innovative LumiTechnologies that enhance performance and reliability, ensuring a higher standard of surveillance.
Luminys N5T-8DA2 Camera Features
- 8MP Turret Housing: Delivers high-resolution images for detailed monitoring and identification.
- 2.8 mm Lens: Offers a wide field of view, ensuring expansive coverage of the monitored area.
- LumiLuxSmart — IR and White-Light LEDs: Provides versatile lighting capabilities for clear visibility in both day and night environments.
- LumiDeterrent With Red/Blue Lights and Built-In Speaker: Acts as a proactive deterrent against potential intruders, enhancing security measures.
- Video Content Analytics: Includes features like Line Crossing, Intrusion, and Loitering Detection to improve threat response and reduce false alarms.
- iMD, LumiSearch: Intelligent motion detection and search features streamline monitoring and incident review.
- LumiPolarPro and LumiDesertPro: Specialized technologies that optimize performance in varying environmental conditions.
Detailed Camera Specifications for Luminys N5T-8DA2
| Camera Type | 8MP Turret |
| Lens | 2.8 mm |
| Lighting Technology | LumiLuxSmart - IR and White-Light LEDs |
| Deterrent Features | LumiDeterrent with Red/Blue Lights and Speaker |
| Analytics Features | Line Crossing, Intrusion, Loitering Detection |
| Intelligent Detection | iMD, LumiSearch |
| Environmental Adaptability | LumiPolarPro and LumiDesertPro |
SKU  | N5T-8DA2 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Pole, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 123.5 mm × Φ 142.0 mm (4.9 in. × Φ 5.6 in.) |
| Electronic Shutter | Automatic, Manual 1/3 s to 1/100,000 s |
| Image Device | 1/2.8-in. 8MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.001 Lux, Black/White: 0.0001 Lux 0 Lux With IR Light On |
| Operating Humidity | < 95% RH (Non-Condensing) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Power Consumption | 12 VDC: Maximum: 8.7 W, Normal: 4.0 W , PoE: Maximum: 10.9 W, Normal: 5.0 W |
| Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP; NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x |
| S/N Ratio | > 56 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D NR |
| Mirror | Supported |
| Angle of View | Horizontal: 106° , Vertical: 55° , Diagonal: 125° |
| Rotation Angle | 0° to 360° |
| Motion Detection Tracking | Supported with Alarms for Vehicles and Humans |
| IR Distance | 50m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
