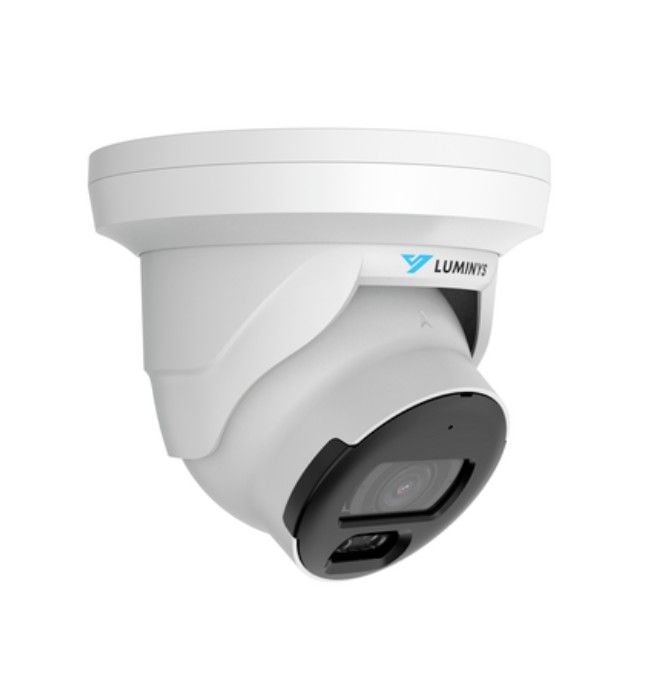

Luminys N5T-4LA2 4 Megapixel Network IP LumiLuxSmart Turret Camera with 2.8mm Lens
SKU
N5T-4LA2
Model No
N5T-4LA2
$229.15
Product Highlights
- 4MP Turret Housing
- 2.8 mm Lens
- LumiLuxSmart — IR and White-Light LEDs
- Video Content Analytics+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
- iMD
Speak to an expert
Luminys is lighting the way for flexible low-light solutions with the LumiLuxSmart N5 Mainstream Series, the industry’s most extensive dual-functioning camera lineup.
LumiLuxSmart cameras allow users to switch between three low-light functionalities: covert IR-only mode, nighttime white-light LED lighting, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution.
The LumiLuxSmart series provide unparalleled customization and flexibility to meet the needs of today’s evolving security market.
Luminys LumiLuxSmart N5 Camera Features
- High Definition Resolution: 4MP Turret Housing for clear and detailed images, enhancing security monitoring.
- Versatile Lens: 2.8 mm Lens provides a wide field of view, ideal for various surveillance environments.
- LumiLuxSmart Technology: Combines IR and White-Light LEDs for adaptable low-light performance.
- Advanced Analytics: Video Content Analytics+ detects Line Crossing, Intrusion, Loitering, and Parking for improved security responsiveness.
- Intelligent Motion Detection: iMD technology enhances accuracy in detecting genuine threats, reducing false alarms.
- Efficient Search Capability: LumiSearch+ enables quick retrieval of critical footage based on specific criteria.
- Comprehensive Analytics Suite: LumiAnalytics includes Face Detection, People Counting, Queue Management, Smart Object Detection, and Heat Map for enhanced operational insights.
- Optimal Power Management: LumiPower technology ensures efficient energy usage without compromising performance.
- Extensive Environmental Flexibility: LumiPolarPro and LumiDesertPro designs meet various installation and environmental requirements.
Luminys LumiLuxSmart N5 Detailed Specifications
| Camera Resolution | 4 Megapixels |
| Lens Type | 2.8 mm |
| IR and White-Light Technology | LumiLuxSmart with adjustable brightness |
| Analytic Features | Advanced Video Content Analytics+ |
| Intelligent Detection | iMD Technology |
| Search Functionality | LumiSearch+ |
| Additional Analytic Capabilities | LumiAnalytics Suite |
| Power Efficiency | LumiPower Management |
| Environmental Adaptability | LumiPolarPro and LumiDesertPro |
SKU  | N5T-4LA2 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 142.0 mm × 130.1 mm (5.6 in. × 5.1 in.) |
| Electronic Shutter | Automatic, Manual 1/3 s to 1/100,000 s |
| Image Device | 1/1.8-in. 4MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.0005 Lux , Black/White: 0.0003 Lux 0 Lux With IR Light On |
| Operating Humidity | < 95% RH (Non-Condensing) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Power Consumption | 12 VDC: Maximum: 8.0 W, Normal: 3.7 W , PoE: Maximum: 9.4 W, Normal: 4.8 W |
| Protocols | IPv4, IPv6, HTTP, TCP, RTSP, RTMP, SNMP, FTP, NAS, DHCP, DDNS, QoS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP |
| S/N Ratio | > 50 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D NR |
| Mirror | Supported |
| Angle of View | Horizontal: 111° , Vertical: 60° , Diagonal: 135° |
| Rotation Angle | 0°/90°/180°/270° (Supports 90°/270° with 2MP Resolution and Lower) |
| Motion Detection Tracking | Supported with Alarms for Vehicles and Humans |
| IR Distance | 30m/98.4ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
N5T-4LA2-Specsheet N-Network-Camera-User-Manual.pdf Turret-Camera-Quick-Start-Guide.pdf
