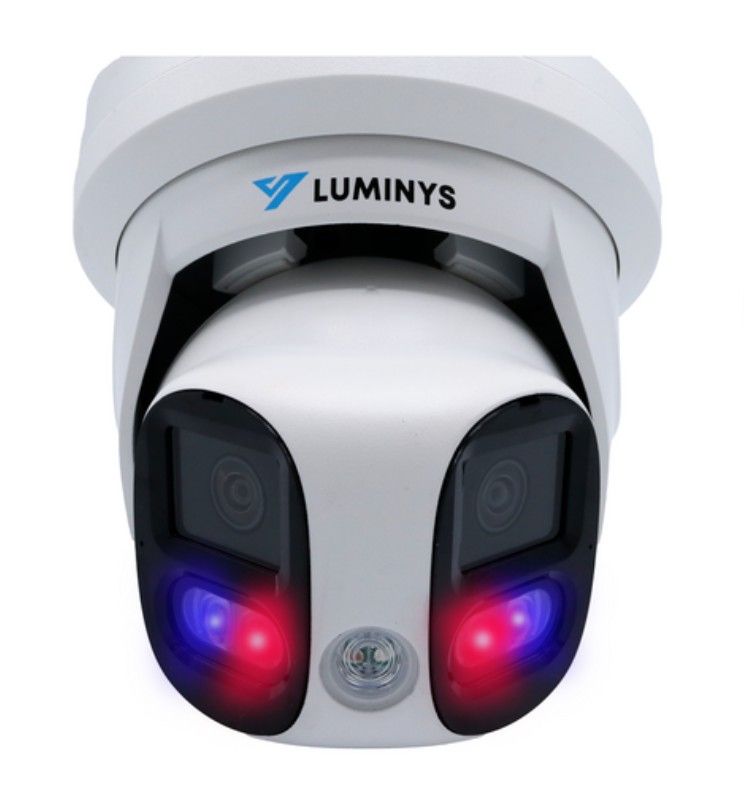

Luminys N5P-8DA2 2 X 4 Megapixel Network IP LumiDeterrent Turret Camera with 2.8mm Lens
SKU
N5P-8DA2
Model No
N5P-8DA2
$412.48
Product Highlights
- 2 x 4MP Turret Housing
- 180° Stitched Multi-Sensor
- 2.8 mm Lens
- LumiDeterrent With Red/Blue Lights and Built-In Speaker
- Video Content Analytics+1: Line Crossing, Intrusion, Loitering Detection
Speak to an expert
The N5P-8DA2 is part of Luminys’s Mainstream series of security devices, designed with a suite of advanced LumiTechnologies to meet the needs of today’s evolving security market. This high-performance security camera offers cutting-edge features that enhance surveillance capabilities, ensuring peace of mind for both residential and commercial properties.
Features
- 4MP Turret Housing: Provides superior image clarity and detail, ideal for capturing essential security footage in various environments.
- 180° Stitched Multi-Sensor: Expands your field of view, eliminating blind spots and enabling comprehensive monitoring of large areas.
- 2.8 mm Lens: Offers a wide angle of view to capture more of the scene, making it perfect for monitoring entrances and driveways.
- LumiDeterrent With Red/Blue Lights and Built-In Speaker: Enhances proactive security measures by deterring potential intruders and notifying them with audio alerts.
- Video Content Analytics+1: Features advanced detection capabilities including Line Crossing, Intrusion, and Loitering, ensuring timely alerts for suspicious activities.
- iMD, LumiTracking-E: Intelligent Motion Detection and Enhanced Tracking capabilities provide more accurate monitoring and reduce false alerts.
- LumiPolarPro and LumiDesertPro: Advanced imaging technologies ensure excellent performance under extreme lighting conditions, ensuring reliable surveillance around the clock.
Luminys N5P-8DA2 Detailed Specifications
| Camera Type | 4MP Turret Camera |
| Field of View | 180° |
| Lens Type | 2.8 mm |
| LumiDeterrent Features | Red/Blue lights, Built-In Speaker |
| Analytics Capabilities | Line Crossing, Intrusion, Loitering Detection |
| Motion Detection Technology | iMD, LumiTracking-E |
| Imaging Technologies | LumiPolarPro, LumiDesertPro |
SKU  | N5P-8DA2 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Pole, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 140.6 mm × Φ 142.5 mm (5.5 in. × Φ 5.6 in.) |
| Electronic Shutter | Automatic, Manual 1/3 s to 1/100,000 s |
| Image Device | 1/2.7-in. 4MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.002 Lux at F1.4 , Black/White: 0.0002 Lux at F1.4 0 Lux With IR Light On |
| Operating Humidity | < 95% RH (Non-Condensing) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Power Consumption | 12 VDC: Maximum: 8.7 W, Normal: 4.0 W , PoE: Maximum: 10.9 W, Normal: 5.0 W |
| Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP; NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x |
| S/N Ratio | > 56 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D NR |
| Angle of View | Horizontal: 180° , Vertical: 86° |
| Rotation Angle | 0° to 360° |
| Motion Detection Tracking | Supported with Alarms for Vehicles and Humans |
| IR Distance | 25m/82ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
