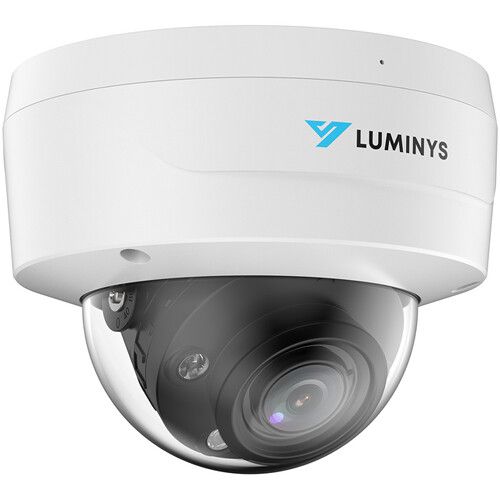

Luminys N5D-8LAV 8 Megapixel Network IP LumiLuxSmart Dome Camera with 2.7-12mm Lens
SKU
N5D-8LAV

Luminys Model N5D-8LAV

Luminys N5D-8LAV 8 Megapixel Network IP LumiLuxSmart Dome Camera with 2.7-12mm Lens

  • 4K
  • 2.7–12mm
  • AI
  • Night Vision
Free shipping
Model No
N5D-8LAV
$611.98
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 8MP Dome Housing
  • 2.7 mm to 12 mm Motorized Lens
  • LumiLuxSmart — IR and White-Light LEDs
  • Video Content Analytics+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
  • LumiAnalytics: Face Detection, People Counting, Heat Map, Queue Management, Smart Object Detection

Overview

Luminys is lighting the way for flexible low-light solutions with the LumiLuxSmart Mainstream Series, the industry’s most extensive dual-functioning camera lineup.

LumiLuxSmart cameras allow users to switch between three low-light functionalities: covert IR-only mode, nighttime white-light LED lighting, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution.

The LumiLuxSmart series provide unparalleled customization and flexibility to meet the needs of today’s evolving security market.

Luminys LumiLuxSmart Mainstream Series Camera Features

  • 8MP Dome Housing: Provides high-resolution imaging for superior clarity and detail in surveillance scenarios.
  • 2.7 mm to 12 mm Motorized Lens: Offers versatile zoom capabilities to capture various angles and distances seamlessly.
  • LumiLuxSmart — IR and White-Light LEDs: Allows users to switch between illumination modes for customized surveillance needs.
  • Video Content Analytics+: Includes intelligent detection features such as Line Crossing, Intrusion, Loitering Detection, and Parking Detection to enhance security monitoring.
  • LumiAnalytics: Advanced functionalities like Face Detection, People Counting, Heat Map, Queue Management, and Smart Object Detection provide actionable insights.
  • LumiSearch+: Streamlines footage searching and retrieval, saving time during investigations.
  • iMD: Intelligent Motion Detection minimizes false alarms by filtering out irrelevant movements.
  • LumiPower: Ensures reliable performance with optimized power usage, reducing operational costs.
  • LumiDesertPro: Designed for extreme environments, ensuring durability and performance in various conditions.

Luminys LumiLuxSmart Mainstream Series Detailed Specifications

Camera Resolution8 MP
Lens TypeMotorized Varifocal 2.7 mm to 12 mm
Illumination ModesIR-only, White-Light, Dual-Illumination
Video AnalyticsLine Crossing, Intrusion, Loitering, Parking Detection
Advanced AnalysisFace Detection, People Counting, Heat Map, Queue Management
Search FeatureLumiSearch+
Motion SensingIntelligent Motion Detection (iMD)
Power ManagementLumiPower
Environmental AdaptabilityLumiDesertPro

Built-in Functions

  • Audio
  • Auto Gain Control
  • Day/Night
  • Digital Noise Reduction
  • Motion Detection Tracking
  • Privacy Masking
  • Wide Dynamic Range
  • Mirror
  • ONVIF

Specifications

SKU  N5D-8LAV
Features  Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, Facial Recognition
Manufacturer  Luminys
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    8 Megapixel
Lens Type    Varifocal
Lens Size    2.7-12mm

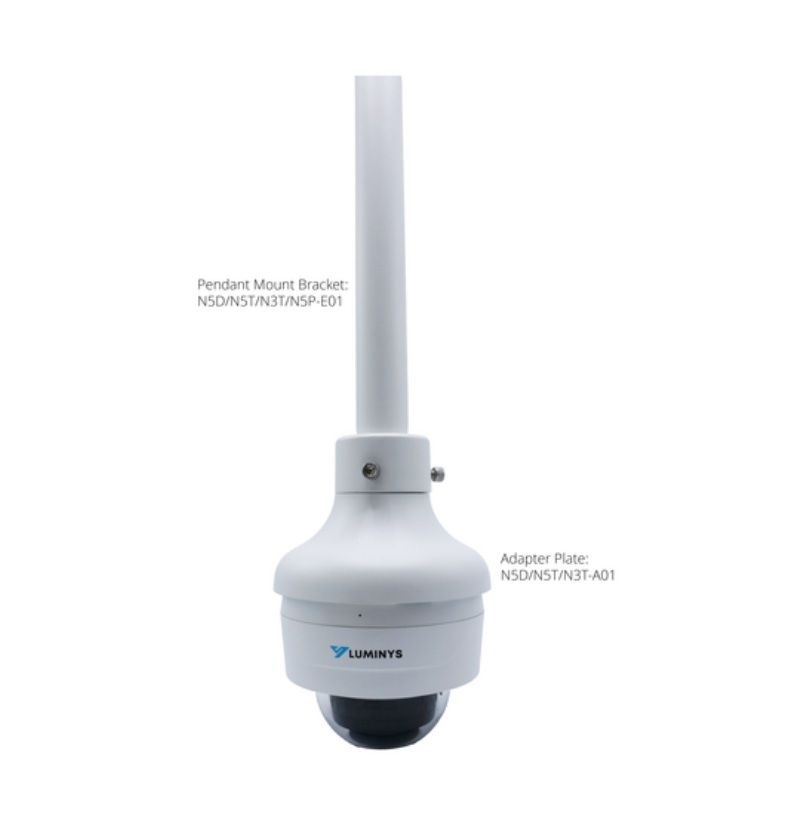

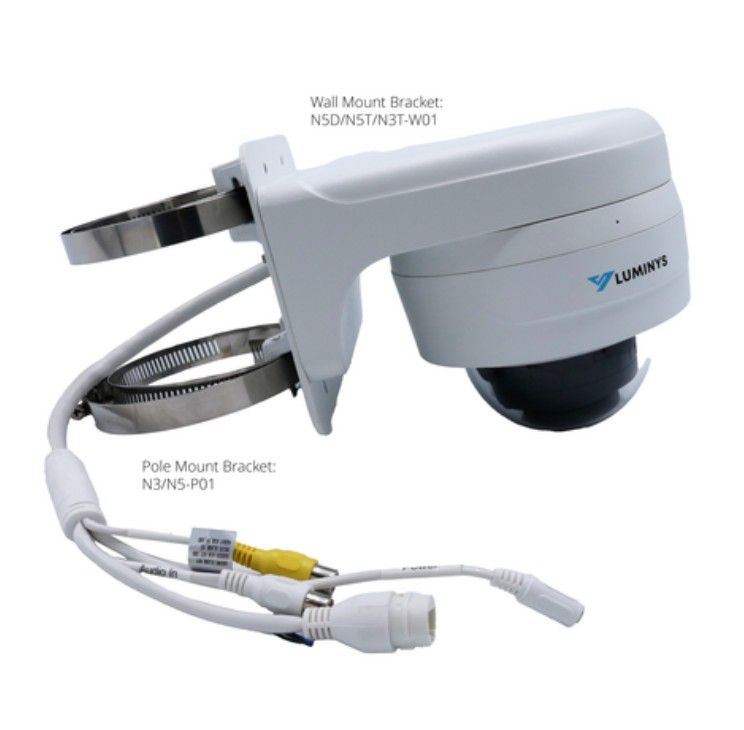

Mount Type  Ceiling, Pole, Wall
Compression Method    H.264, M-JPEG, H.265, H.264+, H.265+
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  126.0 mm × 100.0 mm (5.0 in. × 4.0 in.)
Electronic Shutter    Automatic, Manual 1/3 s to 1/100,000 s
Image Device    1/1.8-in. 8MP Progressive CMOS
Minimum Scene Illumination  Color: 0.0007 Lux at F1.2 ,Black/White: 0.0004 Lux at F1.2 0 Lux With IR Light On
Operating Humidity    < 95% RH (Non-Condensing)
Operating Temperature    -30 to 60 °C (-22 to 140 °F)
Power Consumption  12 VDC: Maximum: 12.1 W, Normal: 5.0 W , PoE: Maximum: 12.9 W, Normal: 5.7 W
Protocols  IPv4, IPv6, HTTP, TCP, RTSP, RTMP, SNMP, FTP, NAS, DHCP, DDNS, QoS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP
S/N Ratio  > 50 dB
Weatherproof    IP67, IK10
Digital Noise Reduction    3D NR
Mirror    Supported
Angle of View    Horizontal: 112° to 48° , Vertical: 58° to 27° , Diagonal: 137° to 55°
Rotation Angle0° to 355°
Motion Detection Tracking    Supported with Alarms for Vehicles and Humans
IR Distance  30m/98.4ft
