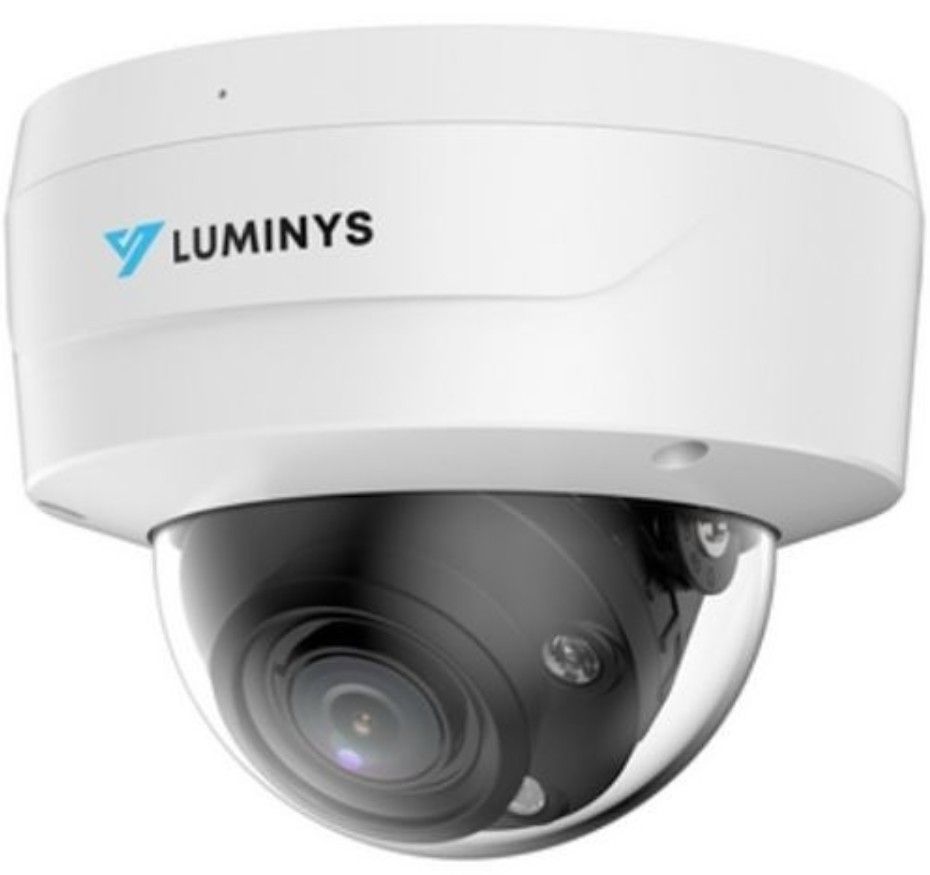

Luminys N5D-4LAV 4 Megapixel Network IP LumiLuxSmart Dome Camera with 2.7-12mm Lens
SKU
N5D-4LAV
Model No
N5D-4LAV
$546.98
Product Highlights
- 4MP Dome Housing
- 2.7 mm to 12 mm Motorized Lens
- LumiLuxSmart — IR and White-Light LEDs
- Video Content Analytics+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
- LumiAnalytics: Face Detection, People Counting, Heat Map, Queue Management, Smart Object Detection
Speak to an expert
Luminys is lighting the way for flexible low-light solutions with the LumiLuxSmart Mainstream Series, the industry’s most extensive dual-functioning camera lineup.
LumiLuxSmart cameras allow users to switch between three low-light functionalities: covert IR-only mode, nighttime white-light LED lighting, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution.
The LumiLuxSmart series provide unparalleled customization and flexibility to meet the needs of today’s evolving security market.
Luminys LumiLuxSmart Camera Features
- 4MP Dome Housing: Offers high-resolution video capture for clear image quality and detailed surveillance.
- 2.7 mm to 12 mm Motorized Lens: Provides adjustable focal lengths for versatile monitoring options across varying distances.
- LumiLuxSmart — IR and White-Light LEDs: Allows for switching between invisible IR illumination and visible white light, enhancing adaptability for different lighting conditions.
- Video Content Analytics+: Tracks and analyzes movement with features like Line Crossing and Intrusion Detection, improving situational awareness and security measures.
- LumiAnalytics: Includes advanced functionalities such as Face Detection and People Counting, enabling smart surveillance and actionable insights.
- LumiSearch+: Streamlines video searches, saving time and enhancing operational efficiency when reviewing footage.
- iMD: Intelligent Motion Detection capabilities to refine movement alerts and reduce false triggers.
- LumiPower: Maximizes energy efficiency, optimizing power usage without compromising performance.
- LumiDesertPro: Designed for extreme environments, ensuring reliability in challenging weather and conditions.
Luminys LumiLuxSmart Detailed Camera Specifications
| Camera Resolution | 4MP |
| Lens Type | Motorized, 2.7 mm to 12 mm |
| Illumination Modes | Covert IR, White-Light LED, IR & LED Dual |
| Analytics Capabilities | Video Content Analytics+, LumiAnalytics |
| Power Efficiency | LumiPower Technology |
| Durability | LumiDesertPro for extreme conditions |
SKU  | N5D-4LAV |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-12mm |
| Mount Type | Ceiling, Pole, Wall |
| Compression Method | H.264B, H.264H, H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 126.0 mm × 100.0 mm (5.0 in. × 3.9 in.) |
| Electronic Shutter | Automatic, Manual 1/3 s to 1/100,000 s |
| Image Device | 1/1.8-in. 4MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.0006 Lux (F1.2) , Black/White: 0.0003 Lux at (F1.2) 0 Lux With IR Light On |
| Operating Humidity | < 95% RH (Non-Condensing) |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Power Consumption | 12 VDC: Maximum: 11.4 W, Normal: 4.3 W , PoE: Maximum: 12.6 W, Normal: 5.2 W |
| Protocols | IPv4, IPv6, HTTP, TCP, RTSP, RTMP, SNMP, FTP, NAS, DHCP, DDNS, QoS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP |
| S/N Ratio | > 50 dB |
| Weatherproof | IP67, IK10 |
| Digital Noise Reduction | 3D NR |
| Mirror | Supported |
| Angle of View | Horizontal: 114° to 48° , Vertical: 59° to 27° , Diagonal: 143° to 56° |
| Rotation Angle | 0° to 355° |
| Motion Detection Tracking | Supported with Alarms for Vehicles and Humans |
| IR Distance | 30m/98.4ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
