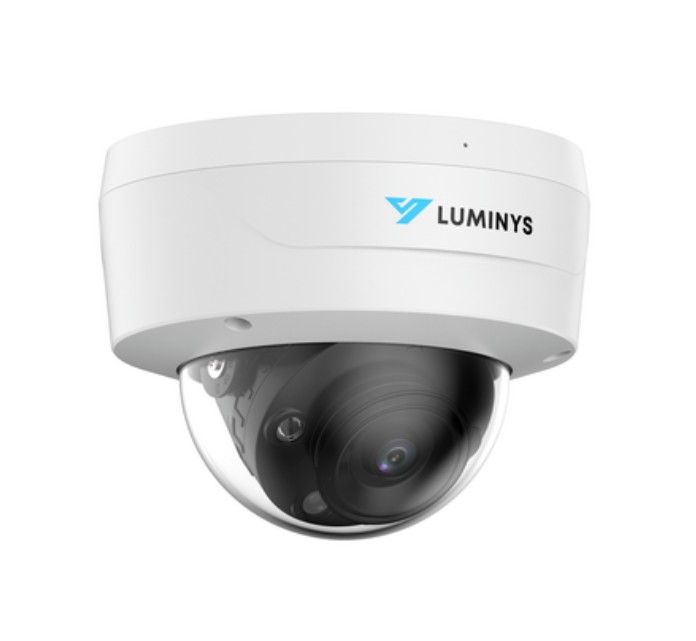

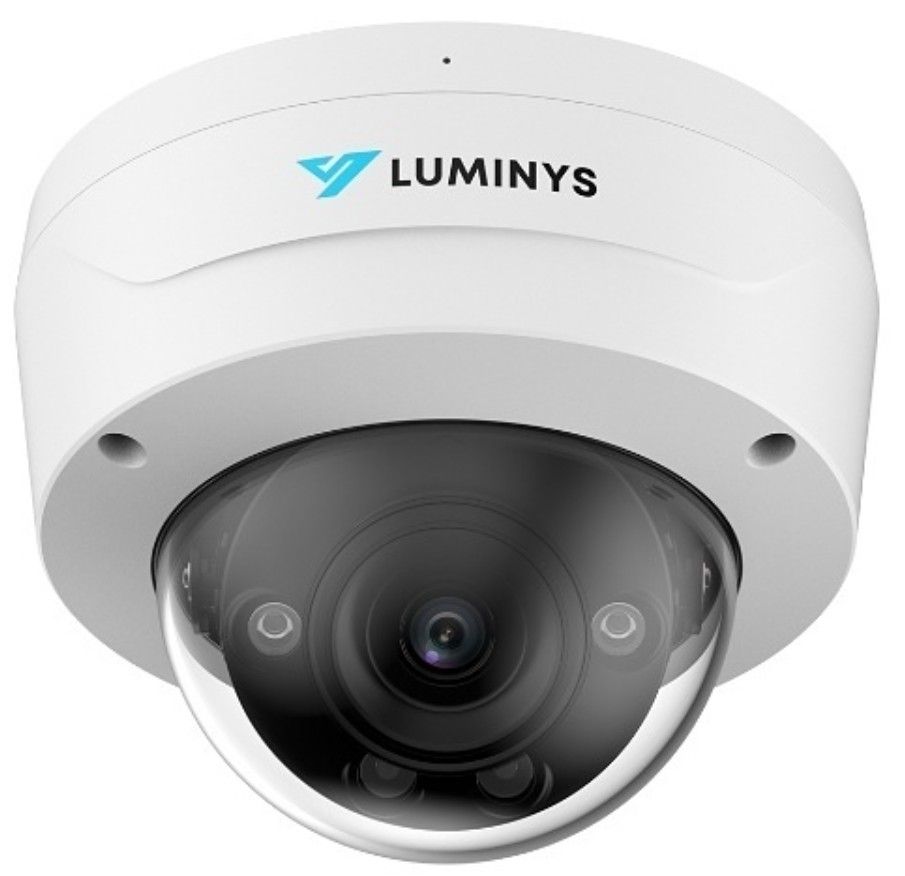

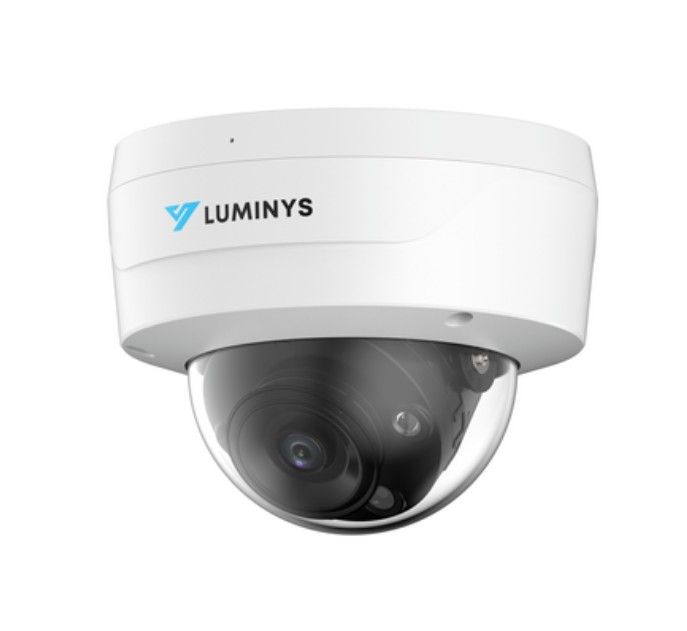

Luminys N5D-12LA2 12 Megapixel Network IP LumiLuxSmart Dome Camera with 2.8mm Lens
SKU
N5D-12LA2
Model No
N5D-12LA2
$330.22
Product Highlights
- 12MP Dome Housing
- 2.8 mm Fixed Lens
- LumiLuxSmart — IR and White-Light LEDs
- Video Content Analytics+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
- LumiAnalytics: Face Detection, People Counting, Heat Map, Queue Management, Smart Object Detection
Speak to an expert
Luminys LumiLuxSmart Mainstream Series — Key Features
Luminys is lighting the way for flexible low-light solutions with the LumiLuxSmart Mainstream Series, the industry’s most extensive dual-functioning camera lineup.
LumiLuxSmart cameras allow users to switch between three low-light functionalities: covert IR-only mode, nighttime white-light LED lighting, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution.
The LumiLuxSmart series provide unparalleled customization and flexibility to meet the needs of today’s evolving security market.
Features
- 12MP Dome Housing: High-resolution imaging for clear visuals.
- 2.8 mm Fixed Lens: Wide-angle view for enhanced surveillance coverage.
- LumiLuxSmart — IR and White-Light LEDs: Flexible lighting options for various environments.
- Video Content Analytics+: Advanced detection features to enhance security monitoring.
- LumiAnalytics: Comprehensive analytics including face detection and people counting for smart insights.
- LumiSearch+: Efficiently find specific events or people in recorded footage.
- iMD: Intelligent Motion Detection for proactive alerts.
- LumiPower: Energy-efficient functionality reducing operational costs.
- LumiDesertPro: Specialized features for various environmental conditions.
Luminys LumiLuxSmart Mainstream Series — Detailed Specifications
| Feature | Details |
|---|---|
| Camera Resolution | 12MP |
| Lens Type | 2.8 mm Fixed Lens |
| Lighting Options | IR-only, White-Light, Motion-activated IR and LED |
| Video Analytics | Line Crossing, Intrusion, Loitering Detection, Parking Detection |
| Analytics Features | Face Detection, People Counting, Heat Map, Queue Management, Smart Object Detection |
| Search Functionality | LumiSearch+ |
| Motion Detection | Intelligent Motion Detection (iMD) |
| Energy Management | LumiPower Technology |
| Environmental Adaptability | LumiDesertPro Features |
SKU  | N5D-12LA2 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 12 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |

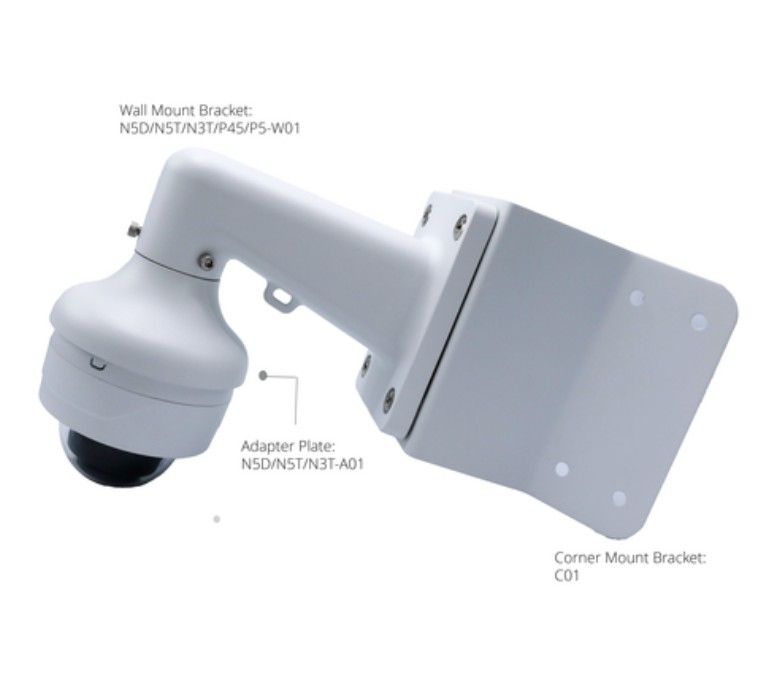

| Mount Type | Ceiling, Pole, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Φ 126.0 mm × 100.0 mm (Φ 5.0 in. × 4.0 in.) |
| Electronic Shutter | Automatic, Manual 1/3 s to 1/100,000 s |
| Image Device | 1/2.5-in. 12MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.0085 Lux at F1.6 , Black/White: 0.0008 Lux at F1.6 0 Lux With IR Light On |
| Operating Humidity | < 95% RH (Non-Condensing) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Power Consumption | 12 VDC: Maximum: 8.5 W, Normal: 4.6 W , PoE: Maximum: 10.7 W, Normal: 6.1 W |
| Protocols | IPv4, IPv6, HTTP, TCP, RTSP, RTMP, SNMP, FTP, NAS, DHCP, DDNS, QoS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP |
| S/N Ratio | > 50 dB |
| Weatherproof | IP67, IK10 |
| Digital Noise Reduction | 3D NR |
| Mirror | Supported |
| Angle of View | Horizontal: 112° , Vertical: 58° , Diagonal: 139° |
| Rotation Angle | 0° to 355° |
| Motion Detection Tracking | Supported with Alarms for Vehicles and Humans |
| IR Distance | 30m/98.4ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
N5D-12LA2-Specsheet N-Network-Camera-User-Manual.pdf Dome-Camera-Quick-Start-Guide.pdf
