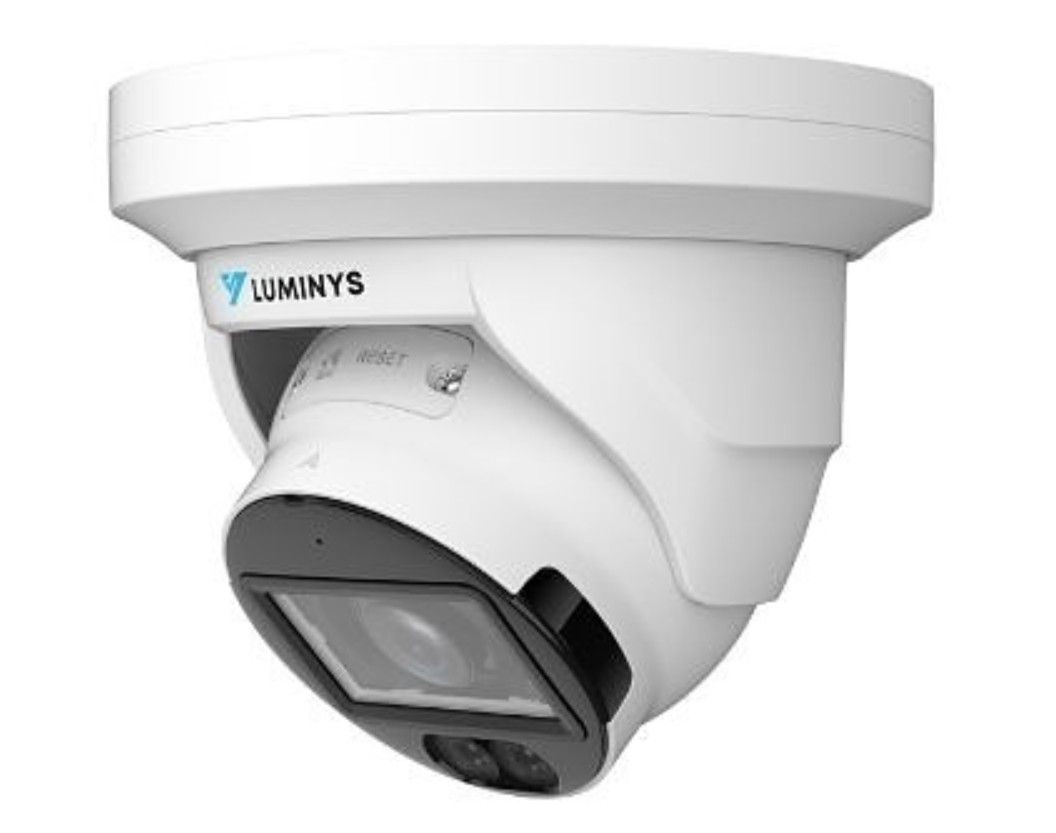

Luminys N3T-8LAV 8 Megapixel Network IP LumiLuxSmart Turret Camera with 2.7-13.5mm Lens
- 8MP Turret Housing
- 2.7 mm to 13.5 mm Motorized Vari-Focal Lens
- LumiLuxSmart — IR and White-Light LEDs
- Video Content Analytics: Line Crossing, Intrusion
- iMD
Luminys N3T-8LAV Camera Features
The N3T-8LAV is part of Luminys’s Starter series. Starter series devices are designed with a curated selection of technologies and features to provide high-quality security without unnecessary or complicated add-ons.
This camera is equipped with LumiLuxSmart technology to provide unparalleled customization and flexibility to meet the needs of today's security market. LumiLuxSmart cameras allow users to switch between three low-light functionalities: covert IR-only mode, nighttime white-light LED lighting, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution. With its smart design, this camera is ideal for small to mid-sized applications.
Features
- 8MP Turret Housing: Delivers high-resolution images for clear monitoring.
- 2.7 mm to 13.5 mm Motorized Vari-Focal Lens: Provides adaptable focal lengths for diverse viewing needs.
- LumiLuxSmart — IR and White-Light LEDs: Offers flexibility in lighting options to ensure optimal visibility at all times.
- Video Content Analytics: Line Crossing, Intrusion: Enhances security through smart alerts and monitoring capabilities.
- iMD: Features intelligent motion detection to minimize false alarms.
- LumiDesertPro: Provides enhanced performance in challenging environmental conditions.
Detailed Camera Specifications for Luminys N3T-8LAV
| Image Sensor | 8MP Sensor |
| Lens Type | Motorized Vari-Focal, 2.7 mm to 13.5 mm |
| Low-Light Functionality | Covert IR-only, Nighttime White-Light, Motion-Activated Dual-Illumination |
| Analytics Features | Line Crossing, Intrusion Detection |
| Adjustment | Remote intensity adjustment for LEDs |
| Design | Turret housing for versatile installation |
SKU  | N3T-8LAV |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-13.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Φ142.5 mm x 121.8mm (5.6 in. x 4.8 in.) |
| Electronic Shutter | Automatic, Manual 1/3 s to 1/100,000 s |
| Image Device | 1/2.7-in. 8MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.007 Lux at F1.5 , Black/White: 0.0007 Lux at F1.5 0 Lux With IR Light On |
| Operating Humidity | < 95% RH (Non-Condensing) |
| Operating Temperature | -30 to 60 °C (-22 to 140 °F) |
| Power Consumption | 12 VDC: Maximum: 8.4 W, Normal: 2.7 W , PoE: Maximum: 10.1 W, Normal: 3.3 W |
| Protocols | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| S/N Ratio | > 56 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D NR |
| Mirror | Supported |
| Angle of View | Horizontal: 114° to 32° , Vertical: 58° to 17° , Diagonal: 138° to 36° |
| Rotation Angle | 0° to 360° |
| Motion Detection Tracking | Supported with Alarms for Vehicles and Humans |
| IR Distance | 39.6m/130ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
N-Network-Camera-User-Manual.pdf Turret-Camera-Quick-Start-Guide.pdf
