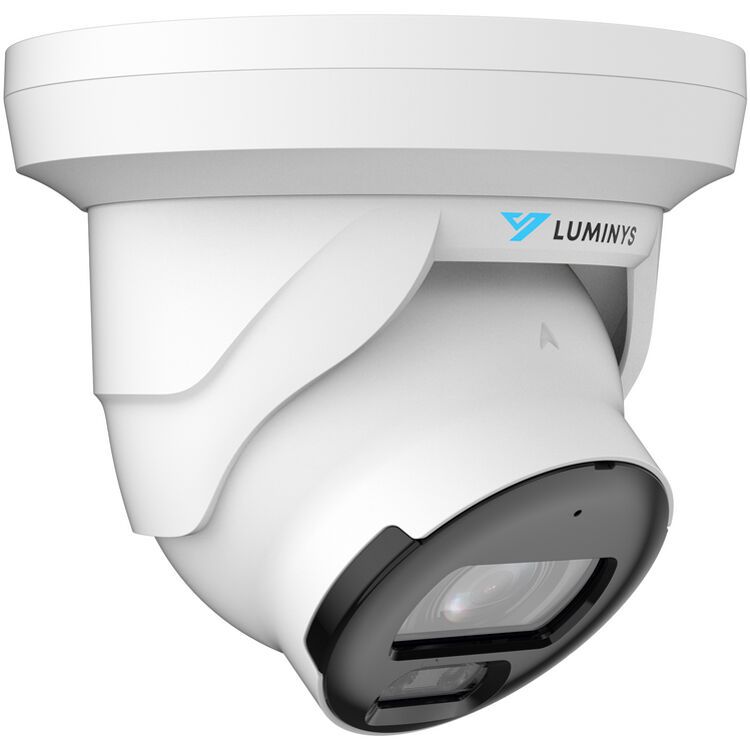

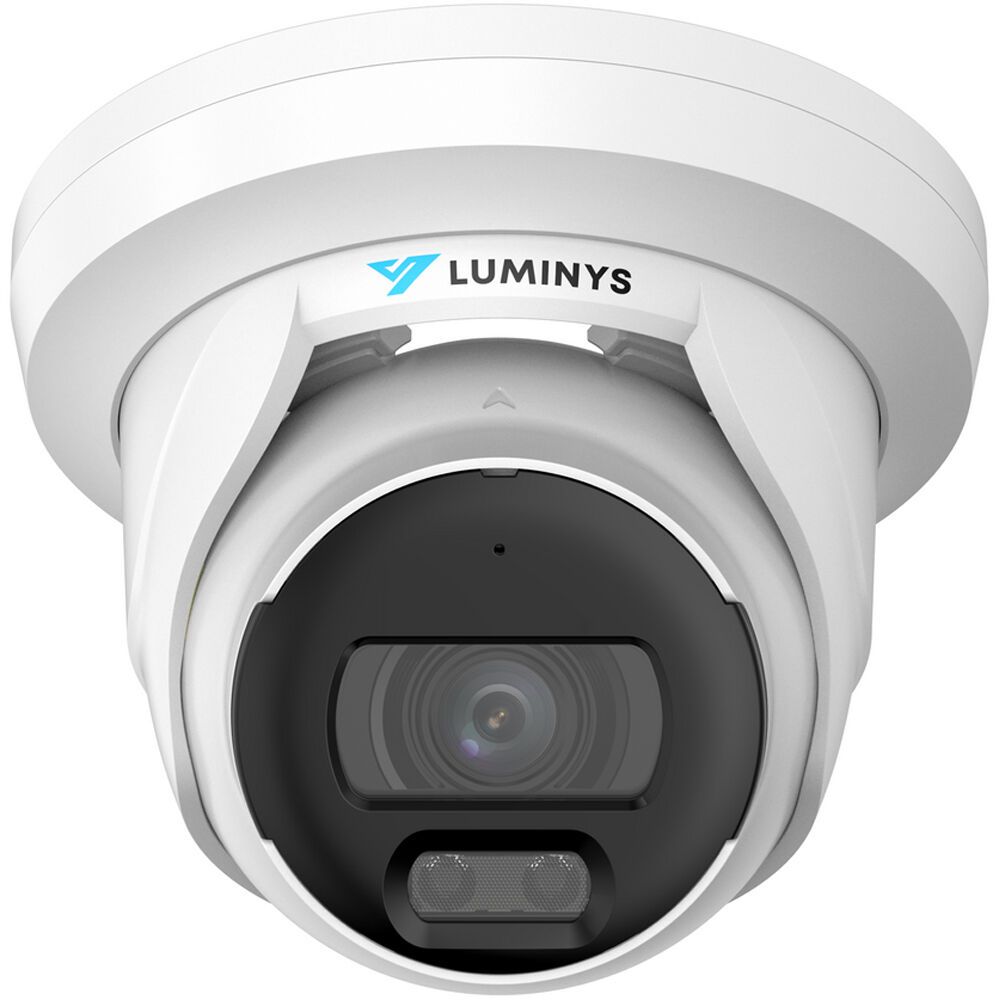

Luminys N3T-8LA2 8 Megapixel Network IP LumiLuxSmart Turret Camera with 2.8mm Lens
SKU
N3T-8LA2
Model No
N3T-8LA2
$229.15
Product Highlights
- 8MP Turret Housing
- 2.8 mm Lens
- Dual Illumination — IR and White-Light LEDs
- Video Content Analytics: Line Crossing, Intrusion
- iMD
Speak to an expert
The N3T-8LA2 is part of Luminys’s N3 Mainstream series, designed to deliver high-quality security solutions without unnecessary complexities. With a maximum resolution of 8MP, this camera offers clear images and videos. It includes intelligent motion detection (iMD), providing essential alerts for proactive security, making it a perfect fit for small to mid-sized applications.
Luminys N3T-8LA2 Camera Features
- 8MP Resolution: Captures high-definition images and video, ensuring clarity for detailed monitoring.
- 2.8 mm Lens: Offers a wide field of view, enhancing coverage in various environments.
- Dual Illumination: Combines IR and White-Light LEDs for effective surveillance in both dark and well-lit conditions.
- Video Content Analytics: Includes advanced features like Line Crossing and Intrusion detection to enhance security measures.
- Intelligent Motion Detection (iMD): Provides timely alerts for motion, allowing for quick responses to potential threats.
Luminys N3T-8LA2 Detailed Camera Specifications
| Maximum Resolution | 8MP |
| Lens Type | 2.8 mm |
| Illumination Type | IR and White-Light LEDs |
| Video Analytics | Line Crossing, Intrusion |
| Motion Detection | Intelligent Motion Detection (iMD) |
SKU  | N3T-8LA2 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |

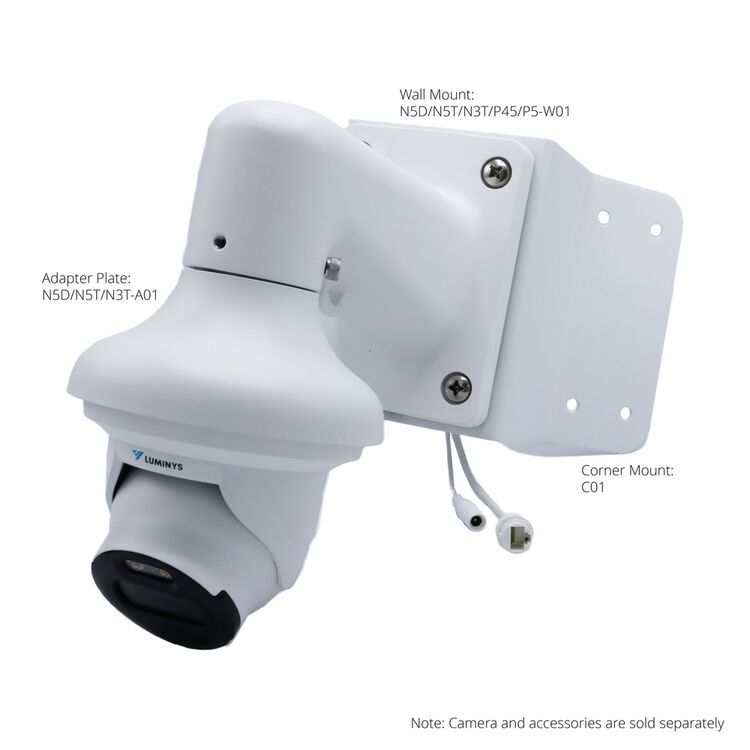

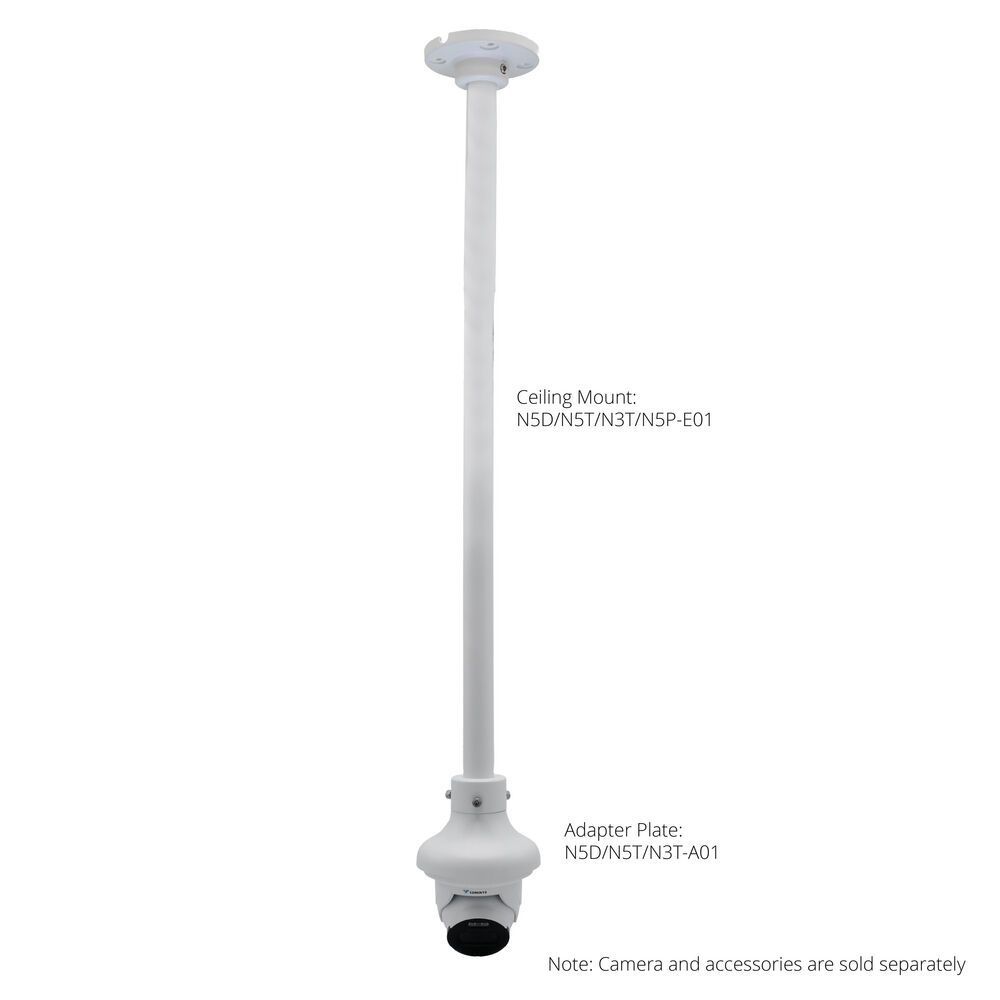

| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 122.0 mm × 111.8 mm (4.8 in. × 4.4 in.) |
| Electronic Shutter | Automatic, Manual 1/3 s to 1/100,000 s |
| Image Device | 1/2.7-in. 8MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.007 Lux at F1.6 , Black/White: 0.0007 Lux at F1.6 0 Lux With IR Light On |
| Operating Humidity | < 95% RH (Non-Condensing) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Power Consumption | 12 VDC: Maximum: 6.9 W, Normal: 2.6 W , PoE: Maximum: 8.3 W, Normal: 3.3 W |
| Protocols | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| S/N Ratio | > 56 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D NR |
| Mirror | Supported |
| Angle of View | Horizontal: 110° , Vertical: 58° , Diagonal: 132° |
| Rotation Angle | 0° to 360° |
| Motion Detection Tracking | Supported with Alarms for Vehicles and Humans |
| IR Distance | 30.5m/100ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
