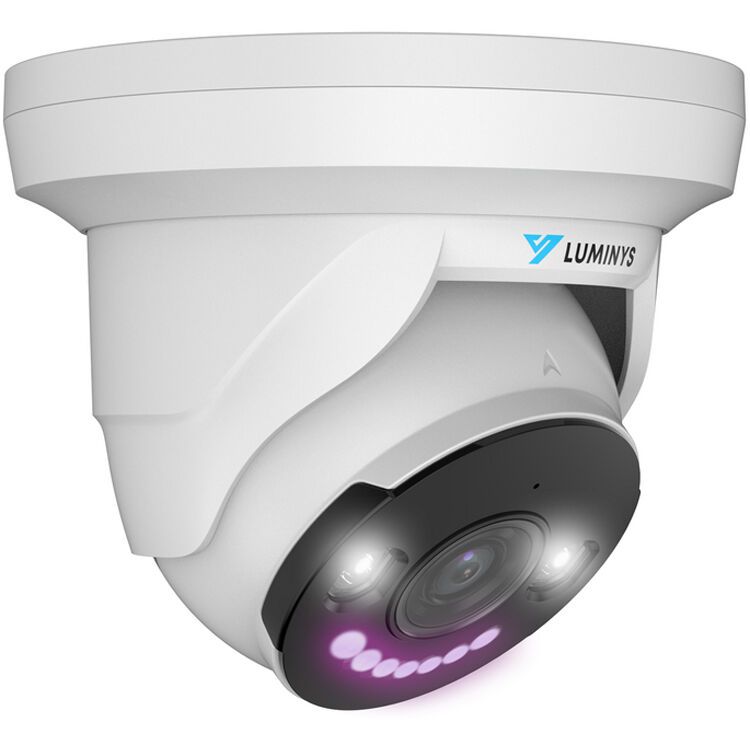

Luminys N3T-8BA2 8 Megapixel Network IP LumiLightBand Turret Camera with 2.8mm Lens
SKU
N3T-8BA2
Model No
N3T-8BA2
$246.78
Product Highlights
- 8MP Turret Housing
- 2.8 mm Lens
- LumiLightBand
- LumiLuxSmart — IR and White-Light LEDs
- Video Content Analytics: Line Crossing and Intrusion
Speak to an expert
The N3T-8BA2 is part of Luminys’s LumiLightBand N3 Entry-Level Series. LumiLightBand cameras offer three low-light modes: covert IR-only mode, nighttime white-light deterrent LEDs, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution. The LumiLightBand series provides smart features without unnecessary or complicated add-ons to meet the needs of today’s evolving security market.
Brand Name + Camera Features
- 8MP Turret Housing: Delivers high-resolution images for enhanced surveillance quality.
- 2.8 mm Lens: Offers a wider field of view, ensuring you capture more area with a single camera.
- LumiLightBand: Incorporates advanced lighting technology to improve visibility in various conditions.
- LumiLuxSmart — IR and White-Light LEDs: Provides flexible lighting options to adapt to changing security needs while reducing light pollution.
- Video Content Analytics: Features line crossing and intrusion detection for proactive security management.
- iMD: Includes intelligent motion detection to minimize false alarms and enhance response accuracy.
Detailed Camera Specifications for Luminys N3T-8BA2
| Camera Resolution | 8MP |
| Lens Type | 2.8 mm Fixed Lens |
| Lighting Modes | IR-only, White-light, Dual-illumination |
| Analytics | Line Crossing, Intrusion Detection |
| Remote Control | Adjustable LED brightness |
| Housing Type | Turret |
SKU  | N3T-8BA2 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Pole, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Φ 122.0 mm × 104.7 mm (Φ 4.8 in. × 4.1 in.) |
| Electronic Shutter | Automatic, Manual; 1/3 s to 1/100,000 s |
| Image Device | 1/2.8-in. 8MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.008 Lux at F1.6 (30 IRE) , Black/White: 0.0008 Lux at F1.6 (30 IRE) 0 Lux With IR Light On |
| Operating Humidity | < 95% RH (Non-Condensing) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Power Consumption | 12 VDC: 8.4 W (Max.), 3.2 W (Normal) PoE: 9.8 W (Max.), 4.3 W (Normal) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP,RTSP, RTMP, FTP, SFTP ,NAS, DHCP,DNS DDNS, QoS, UPnP, NTP, NFS, PPPoE, SMTP, 802.1x |
| S/N Ratio | > 50 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D NR |
| Mirror | Supported |
| Angle of View | Horizontal: 111° , Vertical: 58° , Diagonal: 132° |
| Rotation Angle | 0° to 360° |
| Motion Detection Tracking | Supported with Alarms for Vehicles and Humans |
| IR Distance | 30m/98.4ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
