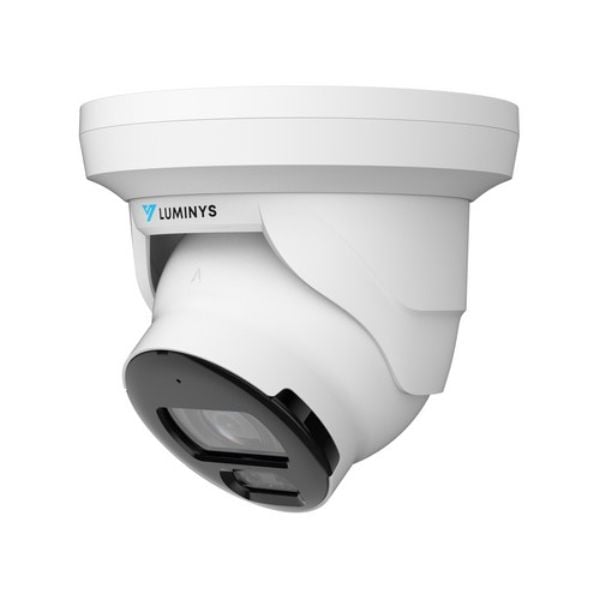

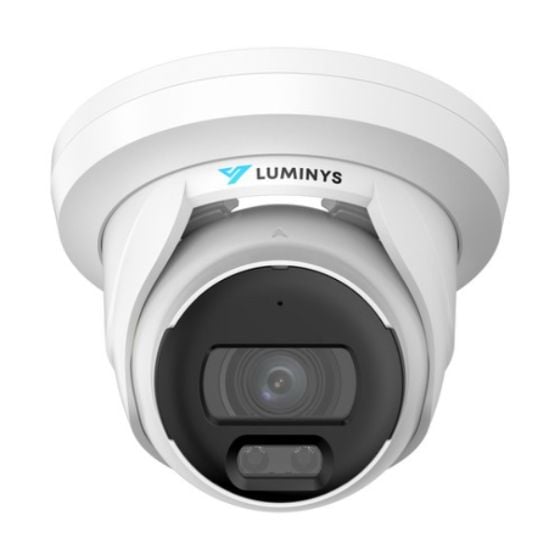

Luminys N3T-5DA2 5 Megapixel Network IP LumiDeterrent Turret Camera with 2.8mm Lens
SKU
N3T-5DA2
Model No
N3T-5DA2
$246.58
Product Highlights
- 5MP Turret Housing
- 2.8 mm Fixed Lens
- Dual-Illumination: IR and White-Light LEDs
- Video Content Analytics: Line Crossing, Intrusion
- LumiDeterrent With Flashing White-Lights and Built-In Speaker
Speak to an expert
The Luminys N3T-5DA2 5 Megapixel Network IP LumiDeterrent Turret Camera is designed to enhance your security with advanced technology and features. Boasting a powerful 5MP resolution, a versatile 2.8mm lens, and an integrated dual-illumination system, this camera ensures clear visibility in any lighting condition. Its intelligent video analytics and built-in deterrent capabilities make it a top choice for comprehensive surveillance solutions.
Luminys N3T-5DA2 Camera Features
- 5MP Turret Housing: Offers high-resolution imaging for detailed surveillance, ensuring that critical details are captured and recorded.
- 2.8 mm Fixed Lens: Provides a wide field of view perfect for monitoring larger areas while maintaining clarity and focus on key locations.
- Dual-Illumination: IR and White-Light LEDs: Ensures visibility day and night, enhancing effectiveness in low-light conditions with both infrared and visible light options.
- Video Content Analytics: Line Crossing, Intrusion: Smart features allow for proactive monitoring, alerting you to potential security breaches in real-time.
- LumiDeterrent With Flashing White-Lights and Built-In Speaker: Features designed to deter intruders and alert off-site monitoring when events are detected, increasing overall security responsiveness.
Luminys N3T-5DA2 Detailed Specifications
| Camera Type | Network IP Turret Camera |
| Resolution | 5 Megapixels |
| Lens | 2.8 mm Fixed |
| Illumination Type | IR and White-Light LEDs |
| Video Analytics | Line Crossing, Intrusion Detection |
| Deterrent Features | Flashing White-Lights, Built-In Speaker |
SKU  | N3T-5DA2 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | Smart H.264, Smart H.265, Smart H.265+, Smart H.264+, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 122.0 mm × 111.8 mm (4.8 in. × 4.4 in.) |
| Electronic Shutter | Automatic, Manual 1/3 s to 1/100,000 s |
| Image Device | 1/2.7-in. 5MP Progressive CMOS |
| IR LEDs | 1 |
| Minimum Scene Illumination | Color: 0.007 Lux at F1.6 Black/White: 0.0007 Lux at F1.6 0 Lux With IR Light On |
| Operating Humidity | < 95% RH (Non-Condensing) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Power Consumption | 12 VDC • Maximum: 6.9 W • Normal: 2.5 W PoE • Maximum: 8.2 W • Normal: 3.2 W |
| Protocols | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| S/N Ratio | > 56 dB |
| Weatherproof | IP67, IK10 |
| Digital Noise Reduction | 3D NR |
| Angle of View | Horizontal: 111° Vertical: 58° Diagonal: 132° |
| Rotation Angle | 0° to 360° |
| IR Distance | 30.5m/100ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
