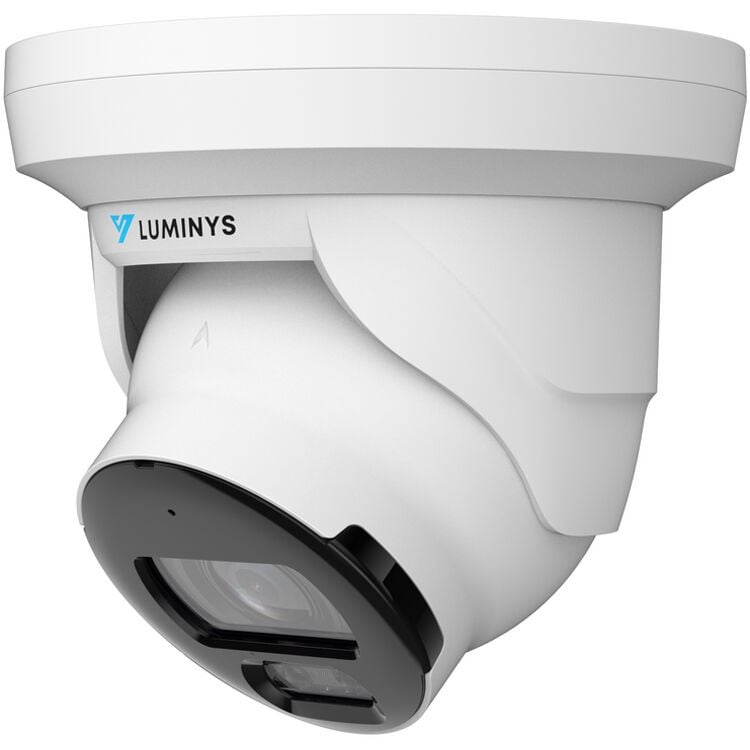

Luminys N3T-4LA2 4 Megapixel Network IP LumiLuxSmart Turret Camera with 2.8mm Lens
SKU
N3T-4LA2
Model No
N3T-4LA2
$162.23
Product Highlights
- 4MP Turret Housing
- 2.8 mm Fixed Lens
- Dual Illumination — IR and White-Light LEDs
- Video Content Analytics: Line Crossing, Intrusion
- iMD
Speak to an expert
The N3T-4LA2 is part of Luminys’s N3 Mainstream series. N3 series devices are designed with a curated selection of technologies and features to provide high-quality security without unnecessary or complicated add-ons.
This camera provides clear images and video with a maximum resolution of 4MP and is equipped with intelligent motion detection (iMD). iMD provides vital motion detection alerts for proactive security. With its smart design, this camera is an ideal choice for small to mid-sized applications.
Key Features
- 4MP Resolution: Delivers high-definition images ensuring detailed monitoring and identification.
- 2.8 mm Fixed Lens: Offers a wider field of view, making it suitable for various surveillance environments.
- Dual Illumination: Combines IR and White-Light LEDs for excellent visibility in both low-light and daytime conditions.
- Video Content Analytics: Includes smart features such as Line Crossing and Intrusion alerts for enhanced security measures.
- Intelligent Motion Detection (iMD): Provides real-time alerts for motion, allowing for immediate response to potential threats.
Luminys N3T-4LA2 Camera Specifications
| Maximum Resolution | 4MP |
| Lens Type | 2.8 mm Fixed Lens |
| Illumination Type | IR and White-Light LEDs |
| Analytics Features | Line Crossing, Intrusion |
| Motion Detection | Intelligent Motion Detection (iMD) |
SKU  | N3T-4LA2 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 122.0 mm × 111.8 mm (4.8 in. × 4.4 in.) |
| Electronic Shutter | Automatic, Manual 1/3 s to 1/100,000 s |
| Image Device | 1/2.9-in. 4MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.005 Lux at F1.6 , Black/White: 0.0005 Lux at F1.6 0 Lux With IR Light On |
| Operating Humidity | < 95% RH (Non-Condensing) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Power Consumption | 12 VDC: Maximum: 6.6 W, Normal: 2.4 W , PoE: Maximum: 7.9 W, Normal: 3.0 W |
| Protocols | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| S/N Ratio | > 56 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D NR |
| Mirror | Supported |
| Angle of View | Horizontal: 95° , Vertical: 52° , Diagonal: 114° |
| Rotation Angle | 0° to 360° |
| Motion Detection Tracking | Supported with Alarms for Vehicles and Humans |
| IR Distance | 30.5m/100ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
