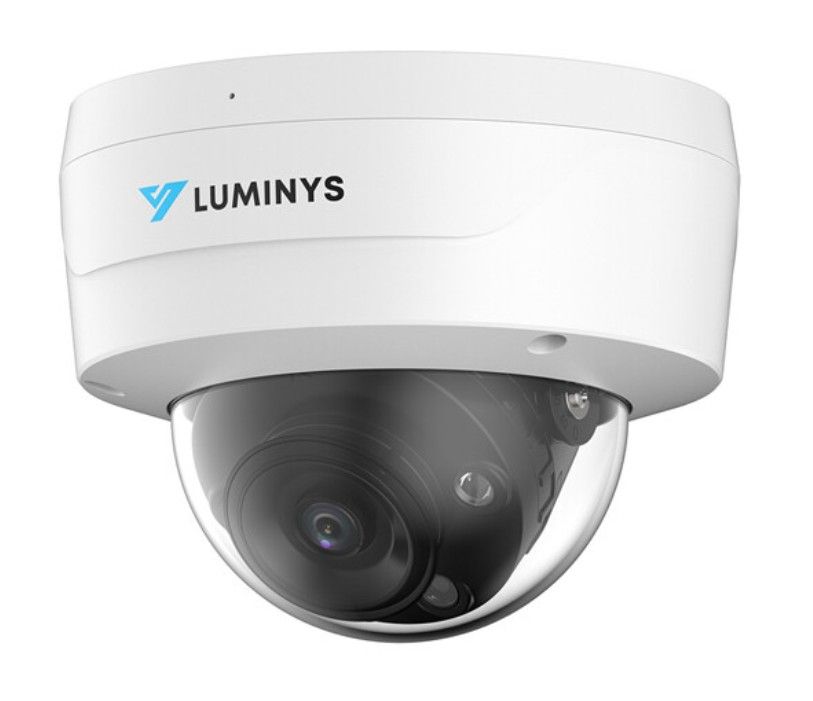

Luminys N3D-8LA2 8 Megapixel Network IP LumiLuxSmart Dome Camera with 2.8mm Lens

SKU
N3D-8LA2
Model No
N3D-8LA2
$229.15
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 8MP Dome Housing
  • 2.8 mm Fixed Lens
  • LumiLuxSmart — IR and White-Light LEDs
  • Video Content Analytics: Line Crossing, Intrusion
  • iMD

Luminys N3D-8LA2 Camera Features

The N3D-8LA2 is part of Luminys’s Starter series. Starter series devices are designed with a curated selection of technologies and features to provide high-quality security without unnecessary or complicated add-ons.

This camera is equipped with LumiLuxSmart technology to provide unparalleled customization and flexibility to meet the needs of today's security market. LumiLuxSmart cameras allow users to switch between three low-light functionalities: covert IR-only mode, nighttime white-light LED lighting, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution. With its smart design, this camera is ideal for small to mid-sized applications.

Features

  • High-Resolution Imaging: 8MP Dome Housing delivers crystal clear video quality for enhanced surveillance.
  • Fixed Lens: 2.8 mm Fixed Lens provides a wide-angle view for better coverage of monitored areas.
  • LumiLuxSmart Technology: Offers IR and White-Light LEDs ensuring optimal visibility in all lighting conditions.
  • Advanced Video Analytics: Video Content Analytics enables features like Line Crossing and Intrusion detection for smarter monitoring.
  • Intelligent Motion Detection: iMD technology reduces false alarms by accurately distinguishing between real threats and non-threatening movements.
  • Dual-Mode Illuminations: LumiPolarPro and LumiDesertPro provide options for various environmental needs, enhancing adaptability.

Luminys N3D-8LA2 Detailed Specifications

SpecificationDetails
ModelN3D-8LA2
Resolution8 Megapixels
Lens TypeFixed Lens, 2.8 mm
Low-Light TechnologiesLumiLuxSmart: Covert IR, White-Light LED, Motion-Activated
Video AnalyticsLine Crossing, Intrusion Detection
Intelligent DetectioniMD
Illumination OptionsLumiPolarPro, LumiDesertPro
SKU  N3D-8LA2
Features  Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Luminys
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    8 Megapixel
Lens Type    Fixed
Lens Size    2.8mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265, H.264+, H.265+
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  Φ 126.0 mm Ă— 100.0 mm (Φ 5.0 in. Ă— 4.0 in.)
Electronic Shutter    Automatic, Manual 1/3 s to 1/100,000 s
Image Device    1/2.7-in. 8MP Progressive CMOS
Minimum Scene Illumination  Color: 0.007 Lux at F1.6 , Black/White: 0.0007 Lux at F1.6 0 Lux With IR Light On
Operating Humidity    < 95% RH (Non-Condensing)
Operating Temperature    -40 to 60 °C (-40 to 140 °F)
Power Consumption  12 VDC: Maximum: 6.9 W, Normal: 2.6 W , PoE: Maximum: 8.3 W, Normal: 3.3 W
Protocols  IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS
S/N Ratio  > 56 dB
Weatherproof    IP67, IK10
Digital Noise Reduction    3D NR
Mirror    Supported
Angle of View    Horizontal: 110° , Vertical: 58° , Diagonal: 132°
Rotation Angle0° to 355°
Motion Detection Tracking    Supported with Alarms for Vehicles and Humans
IR Distance  30.5m/100ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
