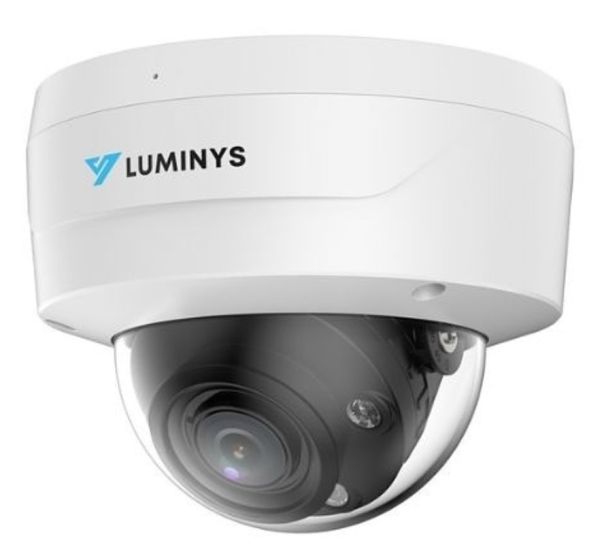

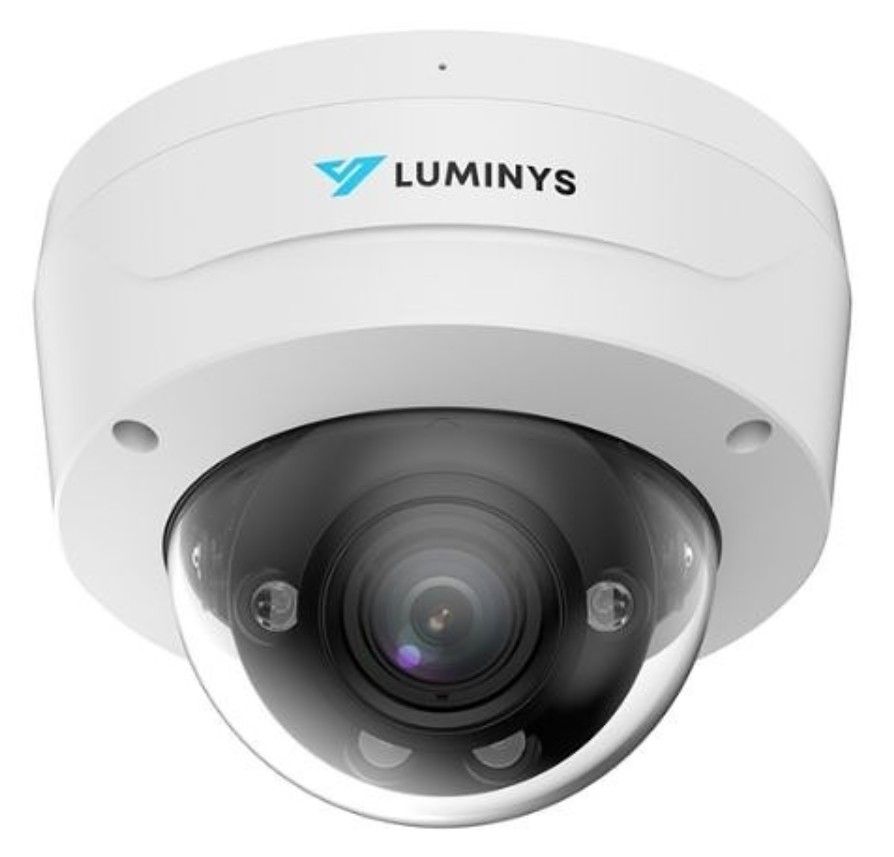

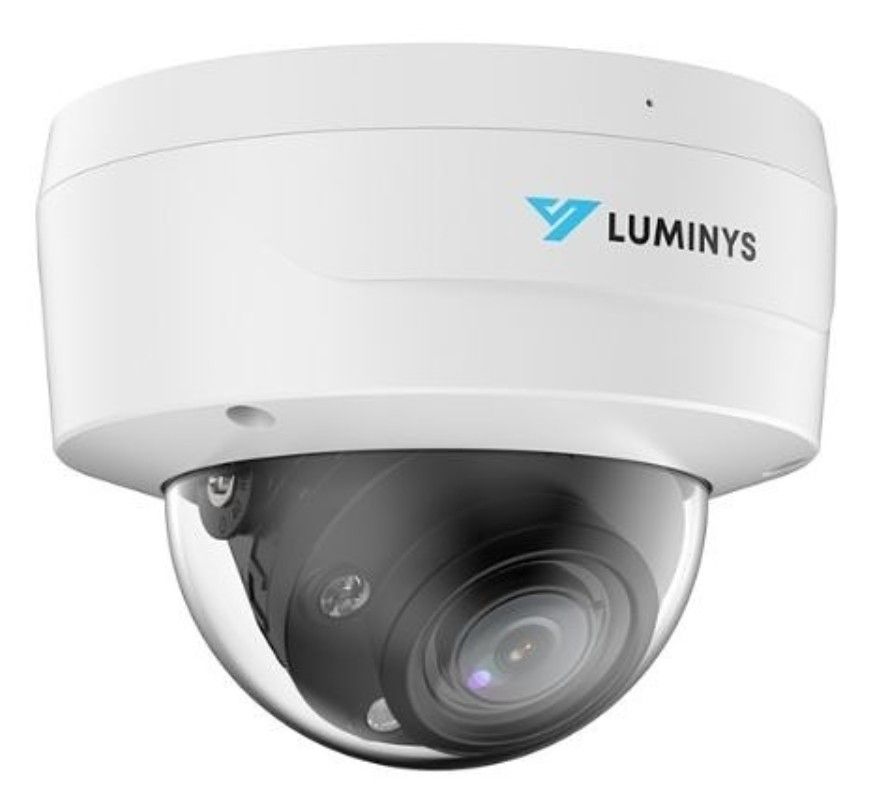

Luminys N3D-4LAV 4 Megapixel Network IP LumiLuxSmart Dome Camera with 2.7-13.5mm Lens
SKU
N3D-4LAV

Luminys Model N3D-4LAV

Luminys N3D-4LAV 4 Megapixel Network IP LumiLuxSmart Dome Camera with 2.7-13.5mm Lens

  • 4MP
  • 2.7–13.5mm
  • AI
  • Night Vision
Free shipping over $450
Model No
N3D-4LAV
$323.98
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 4MP Dome Housing
  • 2.7 mm to 13.5 mm Motorized Vari-Focal Lens
  • LumiLuxSmart — IR and White-Light LEDs
  • Video Content Analytics: Line Crossing, Intrusion
  • iMD

Overview

The N3D-4LAV is part of Luminys’s Starter series. Starter series devices are designed with a curated selection of technologies and features to provide high-quality security without unnecessary or complicated add-ons.

This camera is equipped with LumiLuxSmart technology to provide unparalleled customization and flexibility to meet the needs of today's security market. LumiLuxSmart cameras allow users to switch between three low-light functionalities: covert IR-only mode, nighttime white-light LED lighting, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution. With its smart design, this camera is ideal for small to mid-sized applications.

Luminys N3D-4LAV Camera Features

  • 4MP Dome Housing: Provides high-resolution imaging for detailed surveillance.
  • 2.7 mm to 13.5 mm Motorized Vari-Focal Lens: Enables flexible field of view adjustments to capture specific areas of interest.
  • LumiLuxSmart — IR and White-Light LEDs: Offers superior low-light performance and customizable lighting options to enhance visibility as needed.
  • Video Content Analytics: Line Crossing and Intrusion detection allow for proactive monitoring and alerting.
  • iMD: Intelligent Motion Detection reduces false alarms by discerning between relevant motion events.
  • LumiPolarPro and LumiDesertPro: Advanced technologies that optimize performance in harsh weather and lighting conditions.

Detailed Camera Specifications for Luminys N3D-4LAV

Camera Resolution4MP
Lens TypeMotorized Vari-Focal
Lens Range2.7 mm - 13.5 mm
LED TechnologyIR and White-Light
Video AnalyticsLine Crossing, Intrusion
Smart FeaturesLumiLuxSmart, iMD
CompatibilityLumiPolarPro, LumiDesertPro

Built-in Functions

  • Audio
  • Auto Gain Control
  • Day/Night
  • Digital Noise Reduction
  • Motion Detection Tracking
  • Privacy Masking
  • Wide Dynamic Range
  • Mirror
  • ONVIF

Specifications

SKU  N3D-4LAV
Features  Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Luminys
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    4 Megapixel
Lens Type    Varifocal
Lens Size    2.7-13.5mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265, H.264+, H.265+
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  Φ 126.0 mm × 100.0 mm (Φ 5.0 in. × 4.0 in.)
Electronic Shutter    Automatic, Manual 1/3 s to 1/100,000 s
Image Device    1/2.9-in. 4MP Progressive CMOS
Minimum Scene Illumination  Color: 0.005 Lux at F1.5 , Black/White: 0.0005 Lux at F1.5 0 Lux With IR Light On
Operating Humidity    < 95% RH (Non-Condensing)
Operating Temperature    -40 to 60 °C (-40 to 140 °F)
Power Consumption  12 VDC: Maximum: 10.2 W, Normal: 2.6 W , PoE: Maximum: 12.7 W, Normal: 3.1 W
Protocols  IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS
S/N Ratio  > 56 dB
Weatherproof    IP67, IK10
Digital Noise Reduction    3D NR
Mirror    Supported
Angle of View    Horizontal: 97° to 28° , Vertical: 52° to 16° , Diagonal: 117° to 32°
Rotation Angle0° to 355°
Motion Detection Tracking    Supported with Alarms for Vehicles and Humans
IR Distance  39.6m/130ft

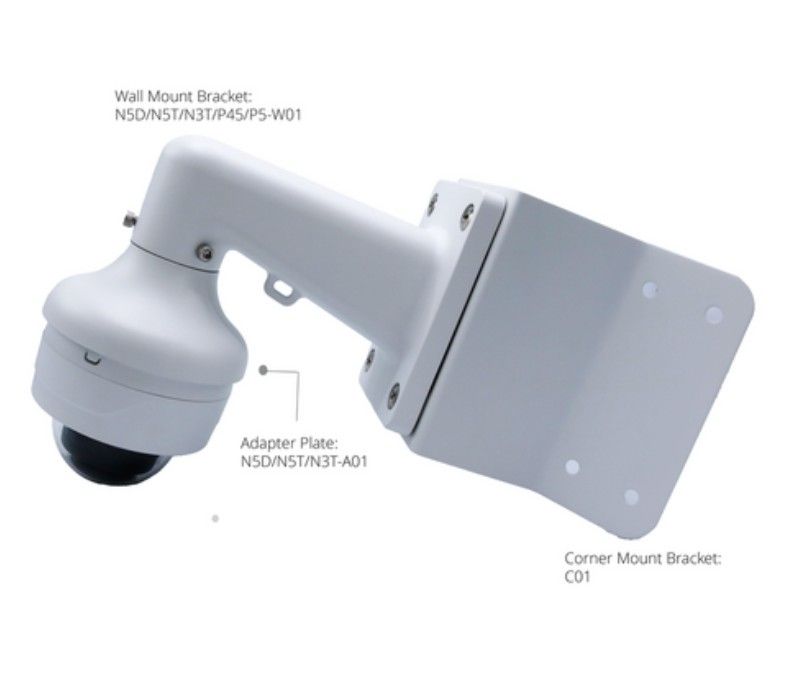

Fits with these accessories
