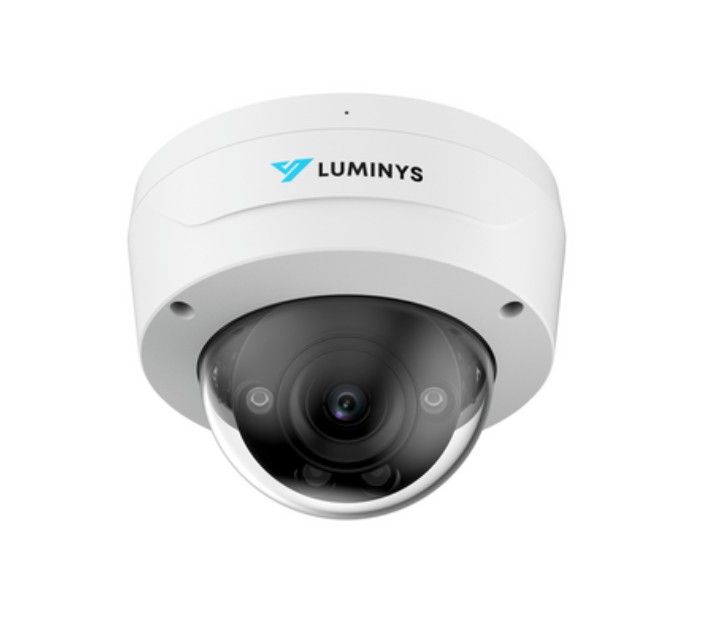

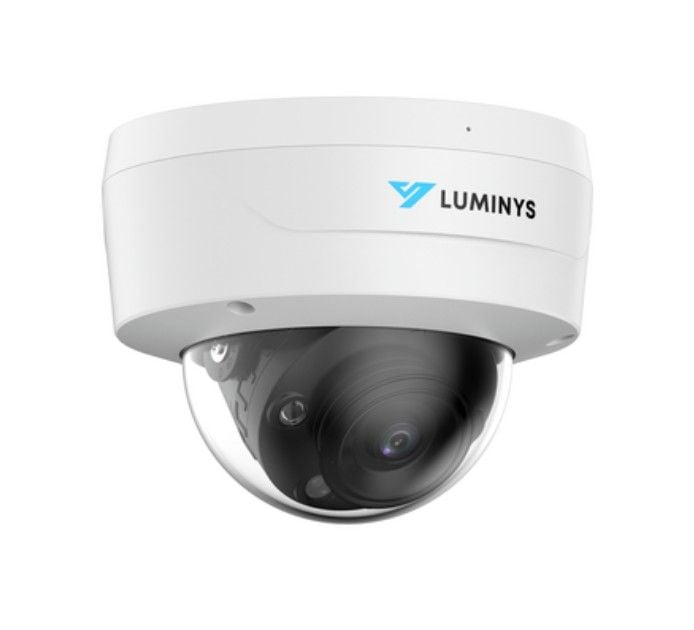

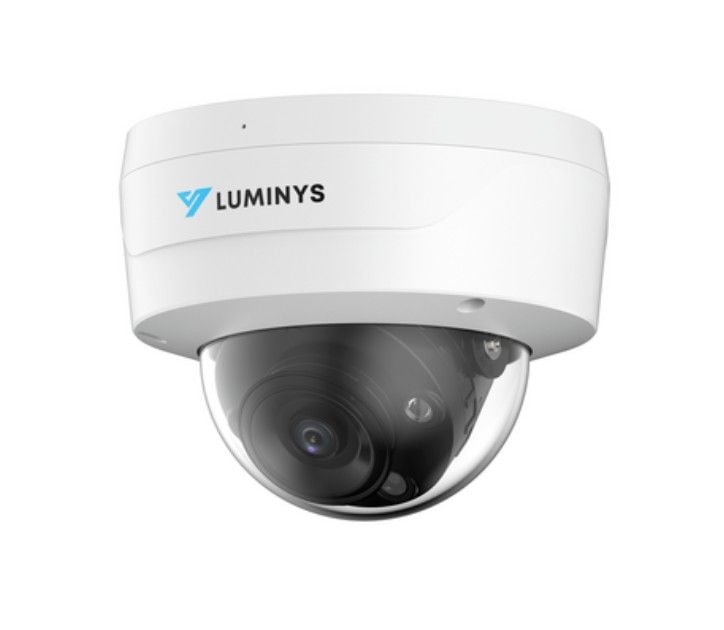

Luminys N3D-4LA2 4 Megapixel Network IP LumiLuxSmart Dome Camera with 2.8mm Lens
- 4MP Dome Housing
- 2.8 mm Fixed Lens
- LumiLuxSmart — IR and White-Light LEDs
- Video Content Analytics: Line Crossing, Intrusion
- iMD
Luminys N3D-4LA2 Camera Features
The N3D-4LA2 is part of Luminys’s Starter series. Starter series devices are designed with a curated selection of technologies and features to provide high-quality security without unnecessary or complicated add-ons.
This camera is equipped with LumiLuxSmart technology to provide unparalleled customization and flexibility to meet the needs of today's security market. LumiLuxSmart cameras allow users to switch between three low-light functionalities: covert IR-only mode, nighttime white-light LED lighting, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution. With its smart design, this camera is ideal for small to mid-sized applications.
Features
- 4MP Dome Housing: Provides high-resolution imaging for detailed surveillance.
- 2.8 mm Fixed Lens: Offers a wide field of view, ensuring extensive coverage.
- LumiLuxSmart — IR and White-Light LEDs: Enables flexible lighting options for various security needs.
- Video Content Analytics: Line Crossing and Intrusion detection enhances security monitoring.
- iMD: Intelligent Motion Detection ensures accurate alerts and reduces false alarms.
- LumiPolarPro and LumiDesertPro: Advanced features for optimized performance in varying environments.
Detailed Specifications for Luminys N3D-4LA2
| Model | N3D-4LA2 |
| Resolution | 4MP |
| Lens Type | 2.8 mm Fixed Lens |
| Low-Light Functionality | Covert IR, White-Light LED, Motion-Activated Dual-Illumination |
| Video Analytics | Line Crossing, Intrusion |
| Special Features | LumiLuxSmart, iMD, LumiPolarPro, LumiDesertPro |
| Camera Type | Dome Housing |
SKU  | N3D-4LA2 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Φ 126.0 mm × 100.0 mm (Φ 5.0 in. × 4.0 in.) |
| Electronic Shutter | Automatic, Manual 1/3 s to 1/100,000 s |
| Image Device | 1/2.9-in. 4MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.005 Lux at F1.6 , Black/White: 0.0005 Lux at F1.6 0 Lux With IR Light On |
| Operating Humidity | < 95% RH (Non-Condensing) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Power Consumption | 12 VDC: Maximum: 6.6 W, Normal: 2.4 W , PoE: Maximum: 7.9 W, Normal: 3.0 W |
| Protocols | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| S/N Ratio | > 56 dB |
| Weatherproof | IP67, IK10 |
| Digital Noise Reduction | 3D NR |
| Mirror | Supported |
| Angle of View | Horizontal: 95° , Vertical: 52° , Diagonal: 114° |
| Rotation Angle | 0° to 355° |
| Motion Detection Tracking | Supported with Alarms for Vehicles and Humans |
| IR Distance | 30.5m/100ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
N3D-4LA2-Specsheet N-Network-Camera-User-Manual.pdf Dome-Camera-Quick-Start-Guide.pdf
