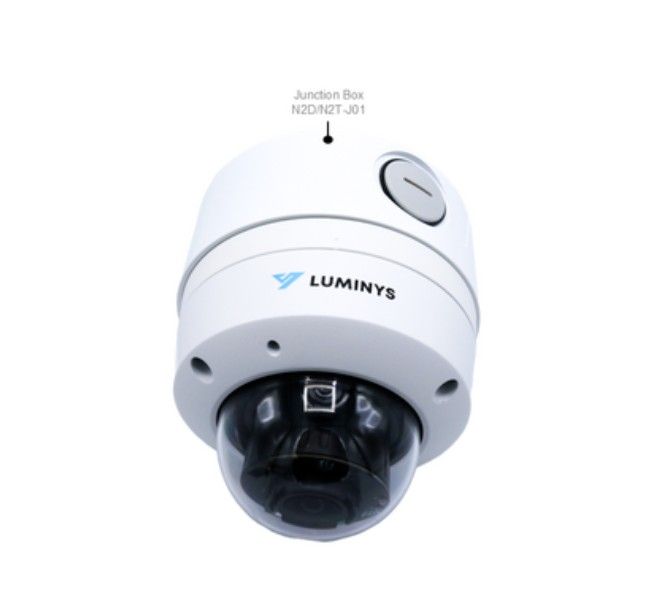

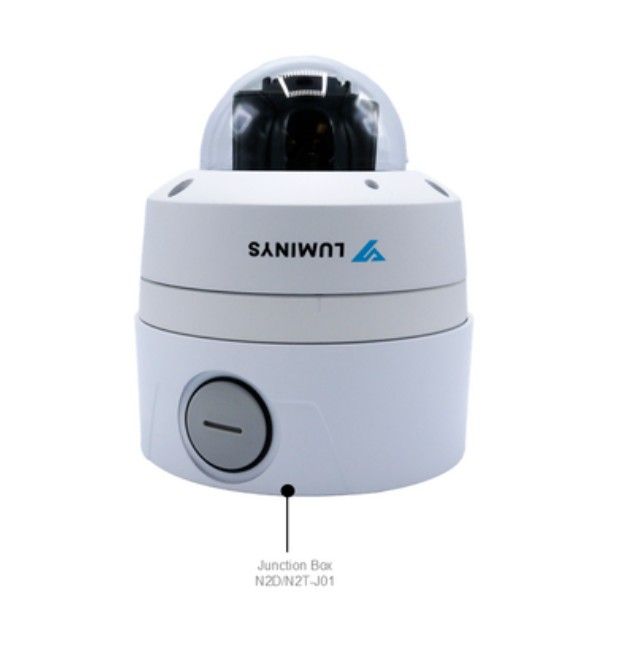

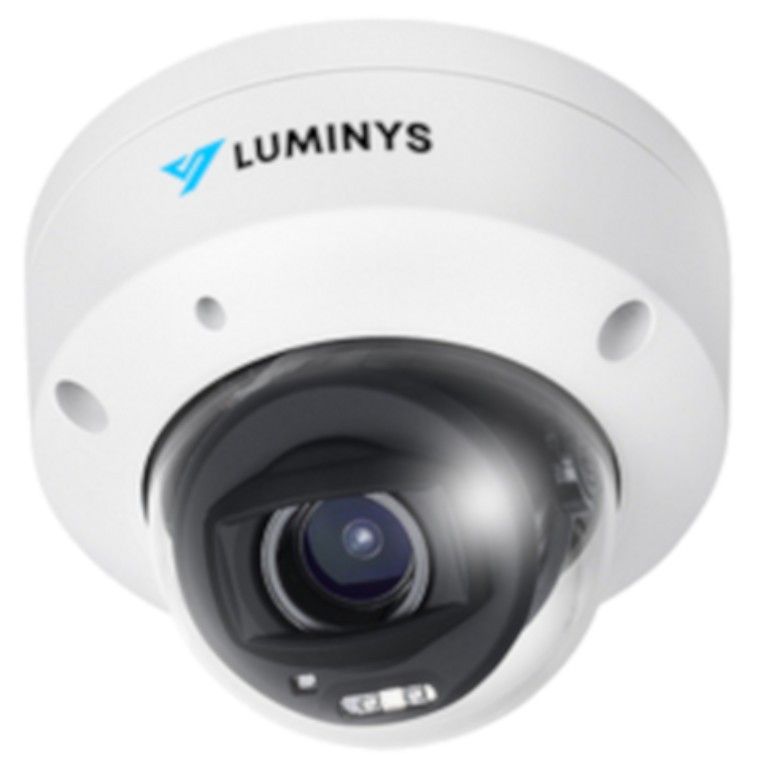

Luminys N2D-8RBV 8 Megapixel Network IP Dome Camera with 2.7-13.5mm Lens
SKU
N2D-8RBV
Model No
N2D-8RBV
$305.54
Product Highlights
- 8MP Dome Housing
- 2.7 mm to 13.5 mm Motorized Lens
- iMD
Speak to an expert
The N2D-8RBV from Luminys’s N2 Mainstream series offers an efficient solution for high-quality security. Designed to be user-friendly and straightforward, this camera excels in clarity and performance without unnecessary complexity. Its advanced motorized lens and Intelligent Motion Detection (iMD) make it an excellent choice for small to mid-sized applications, ensuring you stay informed and secure.
Luminys N2D-8RBV Camera Features
- 8MP Resolution: Captures high-definition images and video, providing clear details crucial for security monitoring.
- Motorized Lens (2.7 mm to 13.5 mm): Allows for flexible zoom options, adapting to various environments and ensuring optimal coverage.
- Intelligent Motion Detection (iMD): Sends alerts for any detected movement, enabling proactive surveillance and immediate response to potential threats.
Detailed Specifications for Luminys N2D-8RBV
| Camera Type | Dome |
| Image Sensor | 8MP |
| Lens Type | Motorized Lens |
| Lens Focal Length | 2.7 mm to 13.5 mm |
| Intelligent Motion Detection | Yes |
| Application | Small to Mid-sized |
SKU  | N2D-8RBV |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-13.5mm |
| Mount Type | Ceiling, Pole, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Φ133.7 mm x 103.8 mm (Φ5.3 in. x 4.1 in.) |
| Electronic Shutter | Automatic, Manual 1/30 s to 1/32,000 s |
| Image Device | 1/2.7-in. 8MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.2 lux at F1.6 , Black and White: < 0.005 Lux at F1.6 0 Lux With IR On |
| Operating Humidity | < 90% RH |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Power Consumption | 12 VDC: 6.6 W (IR On) , PoE: 6.5 W (IR On) |
| Protocols | 802.1x, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPSICMP, IGMPV3, IPV4, IPV6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| S/N Ratio | > 60 dB |
| Weatherproof | IP66, IK10 |
| Digital Noise Reduction | 3DNR |
| Mirror | Supported |
| Angle of View | Horizontal: 111° to 32° , Vertical: 57° to 18° , Diagonal: 136° to 37° |
| Rotation Angle | 0° to 350° |
| Motion Detection Tracking | Supported with Alarms for Vehicles and Humans |
| IR Distance | 30m/98.4ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
