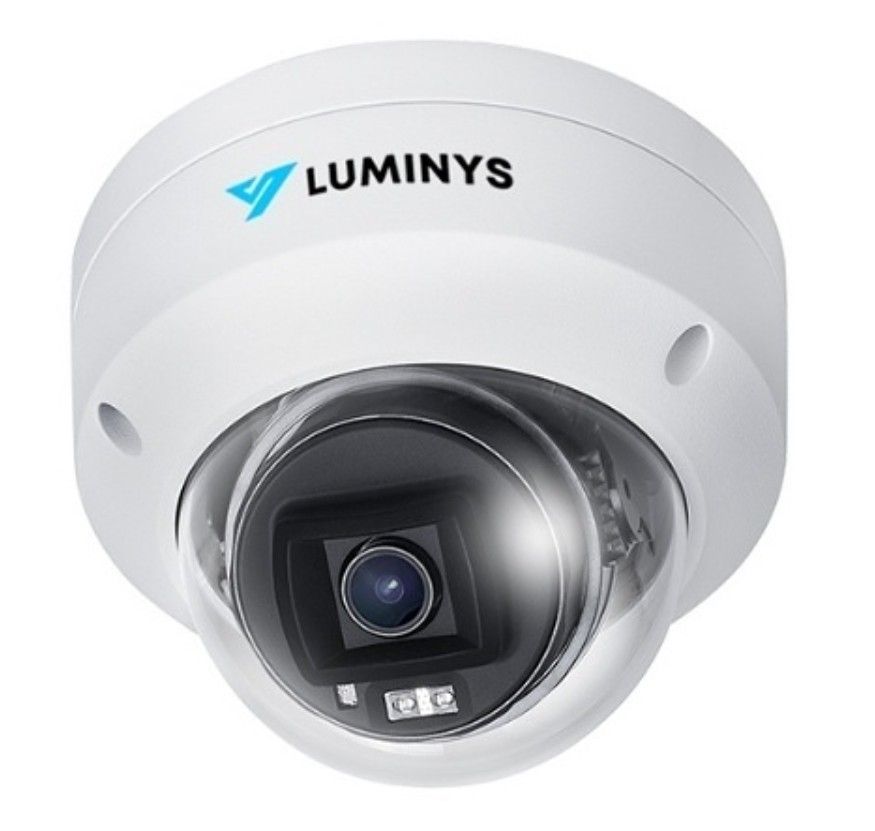

Luminys N2D-8RB2 8 Megapixel Network IP Dome Camera with 2.8mm Lens
SKU
N2D-8RB2
Model No
N2D-8RB2
$213.40
Product Highlights
- 8MP Dome Housing
- 2.8 mm Fixed Lens
- iMD
Speak to an expert
Luminys N2D-8RB2 Camera Features
The N2D-8RB2 is part of Luminys’s N2 Mainstream series. N2 series devices are designed with a curated selection of technologies and features to provide high-quality security without unnecessary or complicated add-ons.
This camera features a high-grade motorized lens and Intelligent Motion Detection (iMD). The lens provides clear images and video with a maximum resolution of 8MP. iMD provides vital motion detection alerts for proactive security. With its smart design, this camera is an ideal entry level camera for small to mid-sized applications.
Features
- 8MP Dome Housing: Delivers high-resolution images and video for superior surveillance clarity.
- 2.8 mm Fixed Lens: Offers a wide field of view to cover more area with fewer cameras.
- iMD: Enables intelligent motion detection alerts to ensure timely responses to security events.
Luminys N2D-8RB2 Detailed Camera Specifications
| Camera Type | Dome |
| Resolution | 8MP |
| Lens Type | Fixed 2.8 mm |
| Motion Detection | Intelligent Motion Detection (iMD) |
| Design | Compact and user-friendly for easy installation |
| Usage | Ideal for small to mid-sized applications |
SKU  | N2D-8RB2 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Luminys |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Pole, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Φ117.1 mm x 89.5 mm (Φ4.6 in. x 3.5 in.) |
| Electronic Shutter | Automatic, Manual 1/30 s to 1/32,000 s |
| Image Device | 1/2.7-in. 8MP Progressive CMOS |
| Minimum Scene Illumination | Color: 0.18 Lux at F1.6 , Black and White: < 0.005 Lux at F1.6 0 Lux With IR On |
| Operating Humidity | < 90% RH |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Power Consumption | 12 VDC: 6.6 W (IR On) , PoE: 6.5 W (IR On) |
| Protocols | 802.1x, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPSICMP, IGMPV3, IPV4, IPV6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| S/N Ratio | > 60 dB |
| Weatherproof | IP66, IK10 |
| Digital Noise Reduction | 3DNR |
| Mirror | Supported |
| Angle of View | Horizontal: 111° , Vertical: 59° , Diagonal: 133° |
| Rotation Angle | 0° to 350° |
| Motion Detection Tracking | Supported with Alarms for Vehicles and Humans |
| IR Distance | 30m/98.4ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
