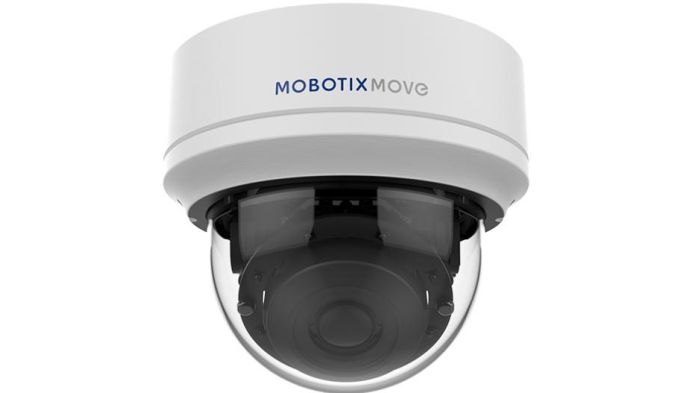

Mobotix Mx-VD3A-2-IR-VA 2 Megapixel Network IR Vandal Fixed Dome Analytics Camera

SKU
Mx-VD3A-2-IR-VA
Model No
Mx-VD3A-2-IR-VA
$664.16
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • EverClear coating of dome
  • Motorized Remote Zoom & Focus
  • Motorized Vari-Focal Lens 2.7 to 12 mm, F1.6 to F2.9 with One-Push Auto Focus
  • Wide Dynamic Range (WDR) max. 130 dB
  • Mobotix MxMessageSystem communication system

Performant 2MP, full HD 1080p resolution camera with integrated Video Analytics features for the daily security and surveillance needs. The camera performs fast and reliable auto focus and adapts to different indoor and outdoor scenes.

Mobotix Mx-VD3A-2-IR-VA Camera Features

  • EverClear coating of dome: Ensures clear images by reducing glare and water spots.
  • Motorized Remote Zoom & Focus: Allows for easy adjustments without physical access to the camera, enhancing flexibility.
  • Motorized Vari-Focal Lens 2.7 to 12 mm, F1.6 to F2.9 with One-Push Auto Focus: Provides superior image quality and focus accuracy for various surveillance needs.
  • Wide Dynamic Range (WDR) max. 130 dB: Captures clear images in challenging lighting conditions, enhancing visibility in both bright and dark areas.
  • Mobotix MxMessageSystem communication system: Facilitates smart notifications and alerts for real-time monitoring.
  • Integrated Video Analytics: Offers intelligent analysis of video data, aiding in proactive security measures.
  • Integrated IR LEDs up to 40 m Distance: Ensures night vision capability, allowing for round-the-clock surveillance.
  • ONVIF Profile S/G/T/M support: Guarantees compatibility with a wide range of third-party systems, providing flexibility in integration.
  • Triple Power Support (PoE/12 VDC/24 VAC): Offers multiple power options for easy installation and reduces dependency on specific power sources.
  • Extended Temperature Range: –55 to 60°C/–41 to 140°F: Suitable for use in extreme weather conditions, ensuring longevity and reliability.
  • IP66 and IK10: Provides excellent protection against dust and water, as well as physical impacts, ensuring durability in various environments.
  • Quick Connection Mount: Simplifies installation and maintenance procedures, saving time and effort.

Detailed Specifications for Mobotix Mx-VD3A-2-IR-VA

Camera TypeNetwork IR Vandal Fixed Dome
Megapixels2 MP
Video ResolutionFull HD 1080p
Lens TypeMotorized Vari-Focal 2.7-12 mm
Minimum IlluminationIR LEDs up to 40 m
Operating Temperature–55 to 60°C (–41 to 140°F)
Protection RatingIP66 and IK10
Power SupplyPoE/12 VDC/24 VAC
Video AnalyticsIntegrated
WDRMax. 130 dB
SKU  Mx-VD3A-2-IR-VA
Features  Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Mobotix
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    2 Megapixel
Lens Type    Varifocal
Lens Size    2.7-12mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Indoor, Vandal Resistant, Weather Resistant
Voltage  12vDC, 24vAC, PoE
Dimensions (W x H)  ø 133.8 x 117.4 mm
Electronic Shutter    Manual Mode: WDR: up to 1/67500 s, Linear: up to 1/67500 s, Automatic Mode: Up to 1/10000 s
Image Device    5MP, 1/2.7" Progressive CMOS
Image Pixels-EffectiveH x V = 1920x1080 (2MP)
Minimum Scene Illumination  Color: 0.08 lux, B/W: 0.008 lux
Operating Humidity    10 to 90 % non-condensing
Operating Temperature    –55 to 60°C/–41 to 140°F
Protocols  iARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, SMBv2
Weatherproof    IP66
Digital Noise Reduction    2DNR, 3DNR
Angle of View    Horizontal: 102.1° (Wide), 31.5° (Tele), Vertical: 70.3° (Wide), 22.7° (Tele)
IR Distance  40m/131ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Motion Detection Tracking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
Digital ZoomYes
