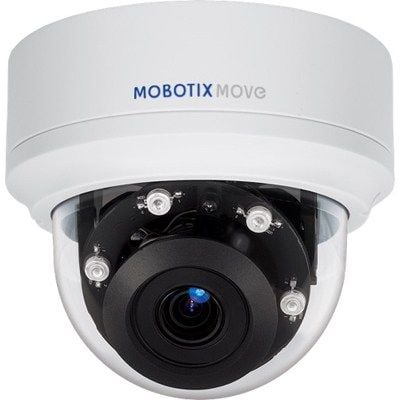

Mobotix Mx-VD2A-2-IR 2 Megapixel Network IR Vandal Dome Camera
SKU
Mx-VD2A-2-IR
Model No
Mx-VD2A-2-IR
$556.19
Product Highlights
- 2.8 to 12 mm Vari-Focal Lens
- Wide Dynamic Range (WDR) max. 130 dB
- Light Sensitivity: down to 0,008 lux
- PoE Power Support
- Integrated IR LEDs up to 40 m distance
Speak to an expert
A performant 2MP, full HD 1080p resolution camera for the daily security and surveillance needs. The camera easily adapts to different indoor and outdoor scenes.
Mobotix Mx-VD2A-2-IR Camera Features
- 2.8 to 12 mm Vari-Focal Lens: Offers flexibility in zoom and focus making it ideal for various surveillance scenarios.
- Wide Dynamic Range (WDR) max. 130 dB: Ensures clear images even in challenging lighting conditions, providing optimal visibility at all times.
- Light Sensitivity: down to 0,008 lux: Captures clear images in low-light conditions, enhancing night-time surveillance capabilities.
- PoE Power Support: Simplifies installation with a single cable providing both power and data, reducing costs and complexity.
- Integrated IR LEDs up to 40 m distance: Ensures clear night vision capabilities by illuminating areas in total darkness.
- Outdoor suitable (IP66) and vandal proof design (IK10): Protects against harsh weather conditions and physical damage, ensuring longevity and durability.
- ONVIF Profile S/G/T/M support: Ensures compatibility with a wide range of third-party devices and software, enhancing integration possibilities.
- Extended Temperature Range: –30 to 60°C/–22 to 140°F: Operates effectively in extreme temperatures, making it suitable for diverse environments.
Detailed Camera Specifications for Mobotix Mx-VD2A-2-IR
| Camera Resolution | 2 Megapixels (1080p) |
| Lens Type | Vari-Focal 2.8 to 12 mm |
| Dynamic Range | Max. 130 dB |
| Minimum Illumination | 0.008 lux |
| Power Supply | PoE (Power over Ethernet) |
| IR Range | Up to 40 m |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| Temperature Range | –30 to 60°C |
SKU  | Mx-VD2A-2-IR |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor, Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | ø 133,8 x 117,4 mm |
| Electronic Shutter | Manual mode: WDR: 1/17550 s, Linear: 30 fps, 1/37440 s, Automatic Mode: 1 to 1/10000 s |
| Image Device | 5MP, 1/2.7" Progressive scan |
| Image Pixels-Effective | H x V = 1920x1080 (2MP) |
| Minimum Scene Illumination | Color: 0.08 lux, B/W: 0.008 lux |
| Operating Humidity | 10 to 90 % non-condensing |
| Operating Temperature | –30 to 60 °C/–22 to 140 °F |
| Protocols | iARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, SMBv2 |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2DNR, 3DNR |
| Angle of View | Horizontal: 96.76° (Wide), 34.13° (Tele), Vertical: 52.21° (Wide), 19.24° (Tele) |
| IR Distance | 40m/131ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
