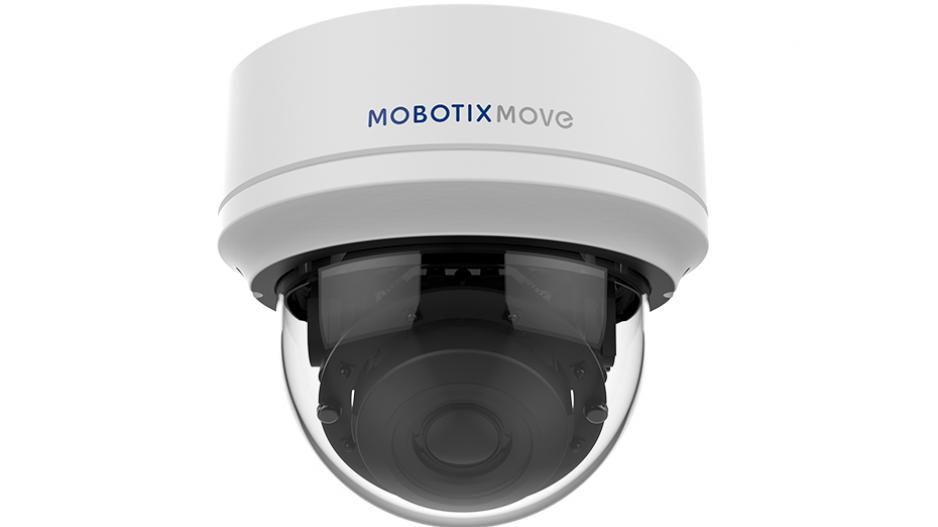

Mobotix Mx-VD1A-8-IR-VA 8 Megapixel 4K Network IR Vandal Fixed Dome Analytics Camera

SKU
Mx-VD1A-8-IR-VA
Mobotix Mx-VD1A-8-IR-VA 8 Megapixel 4K Network IR Vandal Fixed Dome Analytics Camera Mx-VD1A-8-IR-VA by Mobotix
Mobotix Mx-VD1A-8-IR-VA 8 Megapixel 4K Network IR Vandal Fixed Dome Analytics Camera Mx-VD1A-8-IR-VA by Mobotix
Model No
Mx-VD1A-8-IR-VA
$755.10
Qty:
Product Highlights
    • EverClear coating of dome
    • Motorized Remote Zoom & Focus
    • Motorized Vari-Focal Lens 3.6 to 11 mm, F1.5 to F2.0 with One-Push Auto Focus
    • Wide Dynamic Range (WDR) max. 130 dB
    • Mobotix MxMessageSystem communication system

The Mobotix MOVE 4K (8MP) Vandal Fixed Dome Analytics Camera extends the existing range of MOVE IP Camera series with a performant 4K (8MP) resolution camera with DNN (Deep Neural Network) video analytics features, perfect for the daily security and surveillance needs. The camera performs fast and reliable auto focus and adapts to different indoor and outdoor scenes. The integrated Mobotix MxMessageSystem allows direct communication and interaction with Mobotix IoT cameras via the IP network. The dome is protected by MobotixEverClear superhydrophilic nano coating for best image quality even in the rain; its self-cleaning capabilities reduce cleaning efforts and operational costs.

Features

  • EverClear coating of dome
  • Motorized Remote Zoom & Focus
  • Motorized Vari-Focal Lens 3.6 to 11 mm, F1.5 to F2.0 with One-Push Auto Focus
  • Wide Dynamic Range (WDR) max. 130 dB
  • Mobotix MxMessageSystem communication system
  • Integrated Video Analytics (DNN ready)
  • Integrated IR LEDs up to 40 m Distance
  • ONVIF Profile S/G/T/M support
  • Triple Power Support (PoE/12 VDC/24 VAC)
  • Extended Temperature Range: –55 to 60°C/–41 to 140°F with activated heater
  • IP66 and IK10
  • Quick Connection Mount
SKU  Mx-VD1A-8-IR-VA
Features  Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range, 4K Resolution
Manufacturer  Mobotix
Camera Signal    Network IP
Connection Type  Wired
Infrared Distance   101 Feet +
Resolution   8 Megapixel
Lens Type   Varifocal
Lens Size   3.6-11mm
Mount Type  Ceiling, Wall
Compression Method   H.264, M-JPEG, H.265
Durability   Indoor, Vandal Resistant, Weather Resistant
Voltage  12vDC, 24vAC, PoE
Dimensions (W x H)  ø 133.8 x 117.4 mm
Electronic Shutter   Manual Mode: WDR: up to 1/67500 s, Linear: up to 1/67500 s, Automatic Mode: Up to 1/10000 s
Image Device   SONY 4K (8MP), 1/1.8" Progressive CMOS
Image Pixels-Effective H x V = 3864x2180 (4K/8MP)
Minimum Scene Illumination  Color: 0.04 lux, B/W: 0.002 lux
Operating Humidity   10 to 90 % non-condensing
Operating Temperature   –55 to 60 °C/–41 to 140 °F with activated heater
Protocols  iARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, SMBv2
Weatherproof   IP66
Digital Noise Reduction   2DNR, 3DNR
Angle of View   Horizontal: 115.0° (Wide), 47.5° (Tele), Vertical: 61.2° (Wide), 27.0° (Tele)
IR Distance  40m/131ft
Audio Yes
Auto Gain Control   Yes
Day/Night   Yes
Digital Noise Reduction   Yes
Automatic White Balance   Yes
Motion Detection Tracking   Yes
Wide Dynamic Range   Yes
ONVIF  Yes
Digital Zoom Yes
