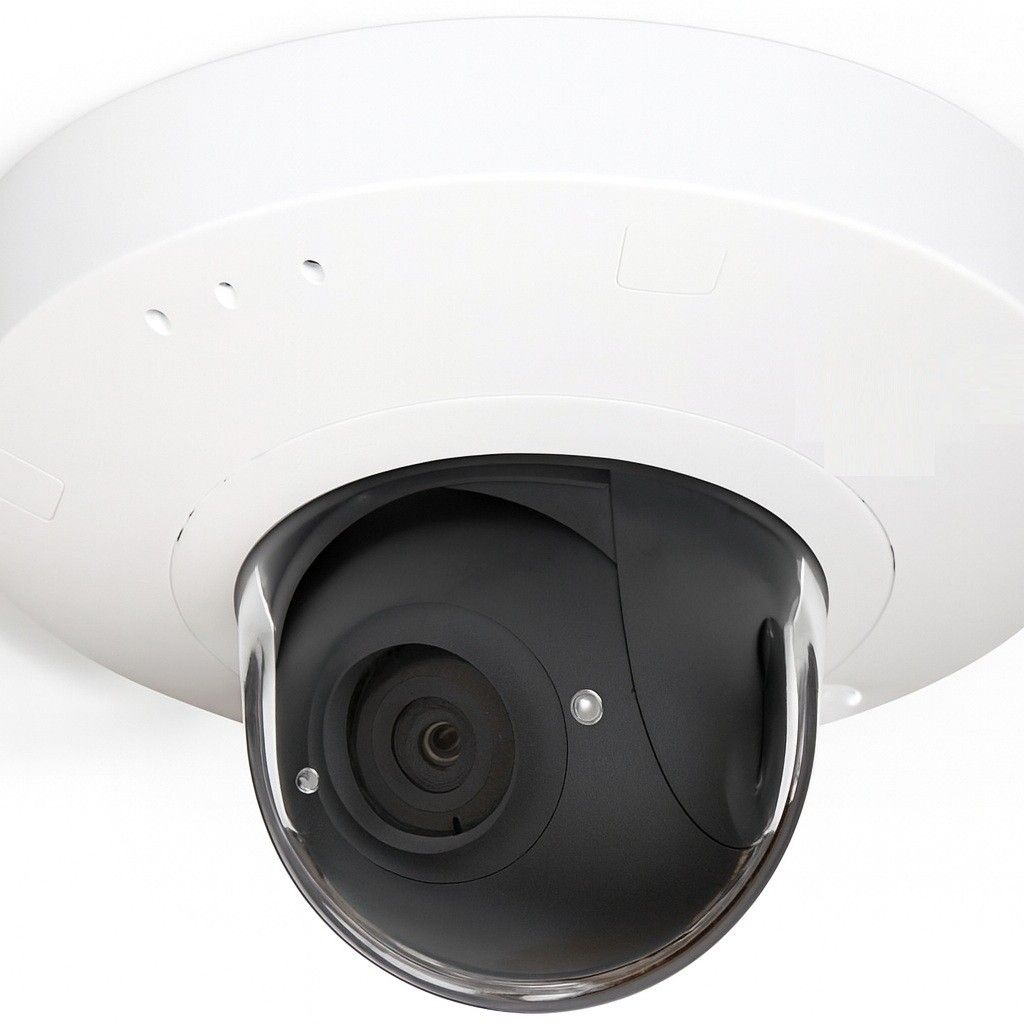

Mobotix Mx-v71B-8DN080 Indoor Network IP 4K DN080 - 60°x33° Day/Night Dome Camera
SKU
Mx-v71B-8DN080
Model No
Mx-v71B-8DN080
$1,234.73
Product Highlights
- 4K UHD resolution (3840 × 2160)
- Premium wide-angle lens with f/1.8 aperture
- Maximum image angle (H × V): 60° × 33°
- Integrated IR LED illuminators
- Wide Dynamic Range (WDR) up to 120 dB
Speak to an expert
The Mobotix Mx-v71B-8DN080 is a versatile indoor surveillance camera that combines 4K ultra-HD resolution with a balanced 60°x33° field of view. This makes it ideal for medium-sized indoor spaces where both detail and coverage are essential. With advanced day/night functionality, the camera ensures seamless performance in varying lighting conditions, delivering sharp, high-contrast images around the clock.
Mobotix Mx-v71B-8DN080 Camera Features
- 4K UHD resolution: Capture every detail with an impressive resolution of 3840 × 2160 pixels, ensuring crystal-clear images.
- Premium wide-angle lens: The f/1.8 aperture provides enhanced light intake, allowing for brighter images in low-light conditions.
- Maximum image angle (H × V): A wide viewing field of 60° × 33° ensures comprehensive coverage of your indoor space.
- Integrated IR LED illuminators: These allow for night vision capabilities, enhancing visibility in complete darkness.
- Wide Dynamic Range (WDR): Up to 120 dB ensures balanced exposure in challenging lighting scenarios, preventing overexposure or underexposure.
- Day and night sensors: The advanced IR cut filter guarantees high-quality images regardless of the time of day.
- 3-axis mechanical pan/tilt head: Easily adjustable to provide the perfect angle for monitoring your space.
- IK10-rated housing: The durable standard dome offers vandal resistance, ensuring long-lasting performance.
- Operating temperature range: Functions flawlessly between -10°C to +50°C, making it suitable for various environments.
- Built-in speaker and microphone: Facilitates two-way audio communication for enhanced surveillance and interaction.
- USB-C connectivity: Allows for straightforward data transfer and connection to external devices.
- 8GB memory card included: Provides immediate storage to start using the camera right away.
- MTBF: With a mean time between failures of 80,000 hours, expect reliable performance over time.
Mobotix Mx-v71B-8DN080 Detailed Specifications
| Product Model | Mobotix Mx-v71B-8DN080 |
| Resolution | 3840 × 2160 (4K UHD) |
| Field of View | 60° × 33° |
| Aperture | f/1.8 |
| Illumination | Integrated IR LED illuminators |
| Dynamic Range | Wide Dynamic Range up to 120 dB |
| Sensor Type | Day and night sensors with IR cut filter |
| Adjustment | 3-axis mechanical pan/tilt head |
| Housing | IK10-rated standard dome |
| Operating Temperature | -10°C to +50°C |
| Audio Features | Built-in speaker and microphone |
| Connectivity | USB-C |
| Included Storage | 8GB memory card |
| MTBF | 80,000 hours |
SKU  | Mx-v71B-8DN080 |
|---|---|
| Features | Day/Night, ONVIF, Vandal Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 8 Megapixel |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MxPEG+, M-JPEG, H.265 |
| Durability | Indoor, Vandal Resistant |
| Voltage | PoE+ |
| Minimum Scene Illumination | Color sensor (day): 0,1 lx @ 1/60 s; 0,005 lx @ 1 s, BW sensor (night): 0,02 lx @ 1/60 s; 0,001 lx @ 1 s |
| Operating Temperature | –10 to 50 °C/–14 to 122 °F |
| Power Consumption | max. 25 W |
| Protocols | DHCP (client and server), DNS, ICMP, IGMP v3, IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, NFS, NTP (client and server), RTP, RTCP, RTSP, SFTP, SIP (client and server), SMB/CIFS, SNMP, SMTP, SSL/TLS 1.3, UDP, VLAN, VPN, Zeroconf/mDNS |
| Angle of View | 60° X 33° |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
