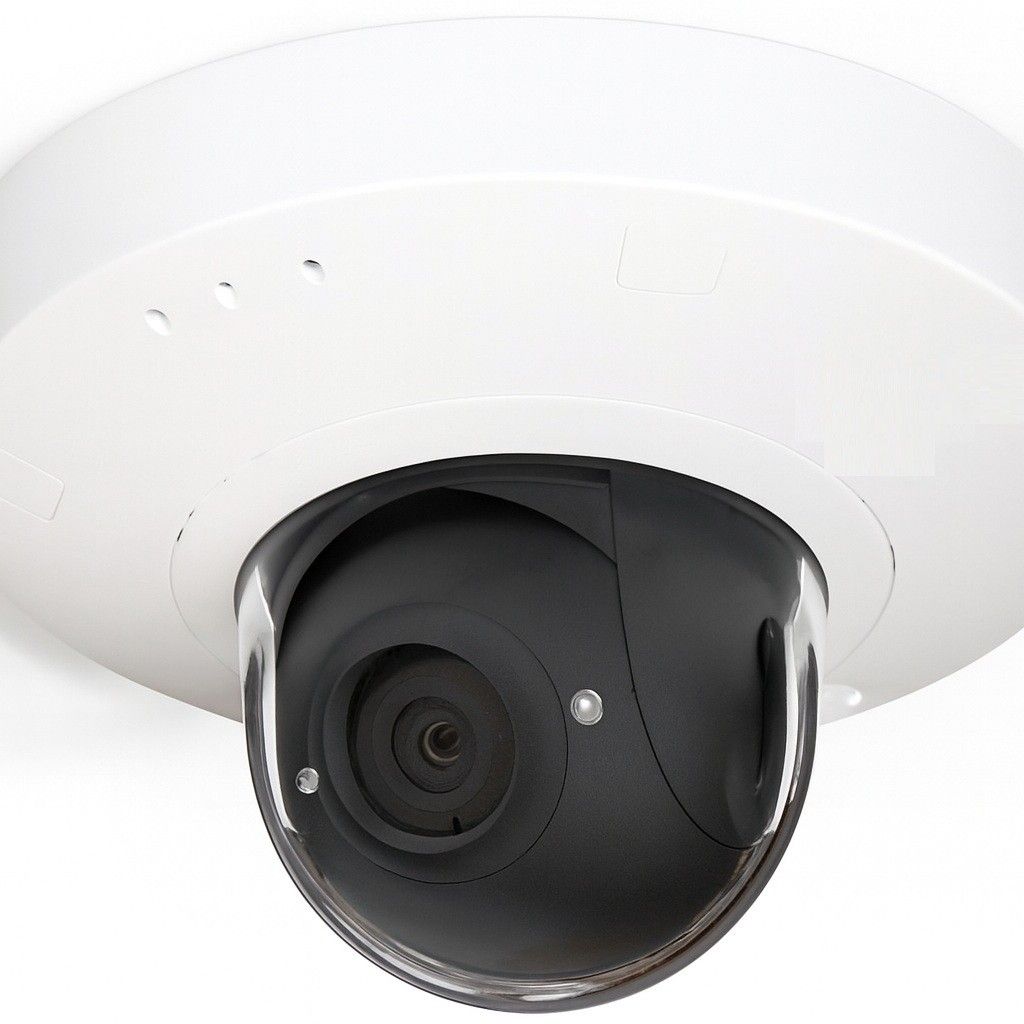

Mobotix Mx-v71B-8DN050 Indoor Network IP 4K DN050 - 95°x50° Day/Night Dome Camera
SKU
Mx-v71B-8DN050
Model No
Mx-v71B-8DN050
$1,234.73
Product Highlights
- 4K UHD resolution (3840 × 2160)
- Premium wide-angle lens with f/1.8 aperture
- Maximum image angle (H × V): 95° × 50°
- Integrated IR LED illuminators
- Wide Dynamic Range (WDR) up to 120 dB
Speak to an expert
The Mobotix Mx-v71B-8DN050 is a high-definition indoor surveillance camera designed for wide-area coverage with exceptional clarity. Featuring a 4K resolution sensor, it delivers ultra-sharp detail for reliable monitoring in both day and night conditions. The DN050 lens provides a 95° horizontal × 50° vertical field of view, making it ideal for open indoor spaces such as lobbies, retail floors, and public areas where broad visibility is essential.
Features
- Resolution: High-definition 4K UHD (3840 × 2160) for crystal-clear images.
- Lens: Premium wide-angle lens with f/1.8 aperture for optimal light capture.
- Field of View: Maximum image angle of 95° horizontal × 50° vertical for expansive coverage.
- Illumination: Integrated IR LED illuminators ensure visibility in low-light conditions.
- Dynamic Range: Wide Dynamic Range (WDR) up to 120 dB for detailed images in varying light.
- Day & Night Functionality: Day and night sensors with IR cut filter for reliable performance around the clock.
- Flexibility: 3-axis mechanical pan/tilt head allows for customizable positioning.
- Durability: IK10-rated housing ensures protection against vandalism and damage.
- Operating Temperature: Wide operating range of -10°C to +50°C for versatility in different environments.
- Audio: Built-in speaker and microphone for two-way communication capabilities.
- Connectivity: USB-C connectivity for easy integration and setup.
- Storage: 8GB memory card included for immediate use and storage expansion.
- Longevity: MTBF of 80,000 hours signifies reliable long-term performance.
Mobotix Mx-v71B-8DN050 Camera Specifications
| Specification | Details |
|---|---|
| Resolution | 4K UHD (3840 × 2160) |
| Lens Aperture | f/1.8 |
| Field of View | 95° horizontal × 50° vertical |
| IR Illuminators | Integrated |
| Dynamic Range | Up to 120 dB |
| Sensor Type | Day/night with IR cut filter |
| Pan/Tilt | 3-axis mechanical |
| Housing Rating | IK10 |
| Operating Temperature | -10°C to +50°C |
| Audio Features | Built-in speaker and microphone |
| Connectivity | USB-C |
| Storage | 8GB memory card included |
| MTBF | 80,000 hours |
SKU  | Mx-v71B-8DN050 |
|---|---|
| Features | Day/Night, ONVIF, Vandal Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 8 Megapixel |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MxPEG+, M-JPEG, H.265 |
| Durability | Indoor, Vandal Resistant |
| Voltage | PoE+ |
| Minimum Scene Illumination | Color sensor (day): 0,1 lx @ 1/60 s; 0,005 lx @ 1 s, BW sensor (night): 0,02 lx @ 1/60 s; 0,001 lx @ 1 s |
| Operating Temperature | –10 to 50 °C/–14 to 122 °F |
| Power Consumption | max. 25 W |
| Protocols | DHCP (client and server), DNS, ICMP, IGMP v3, IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, NFS, NTP (client and server), RTP, RTCP, RTSP, SFTP, SIP (client and server), SMB/CIFS, SNMP, SMTP, SSL/TLS 1.3, UDP, VLAN, VPN, Zeroconf/mDNS |
| Angle of View | 95° X 50° |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
