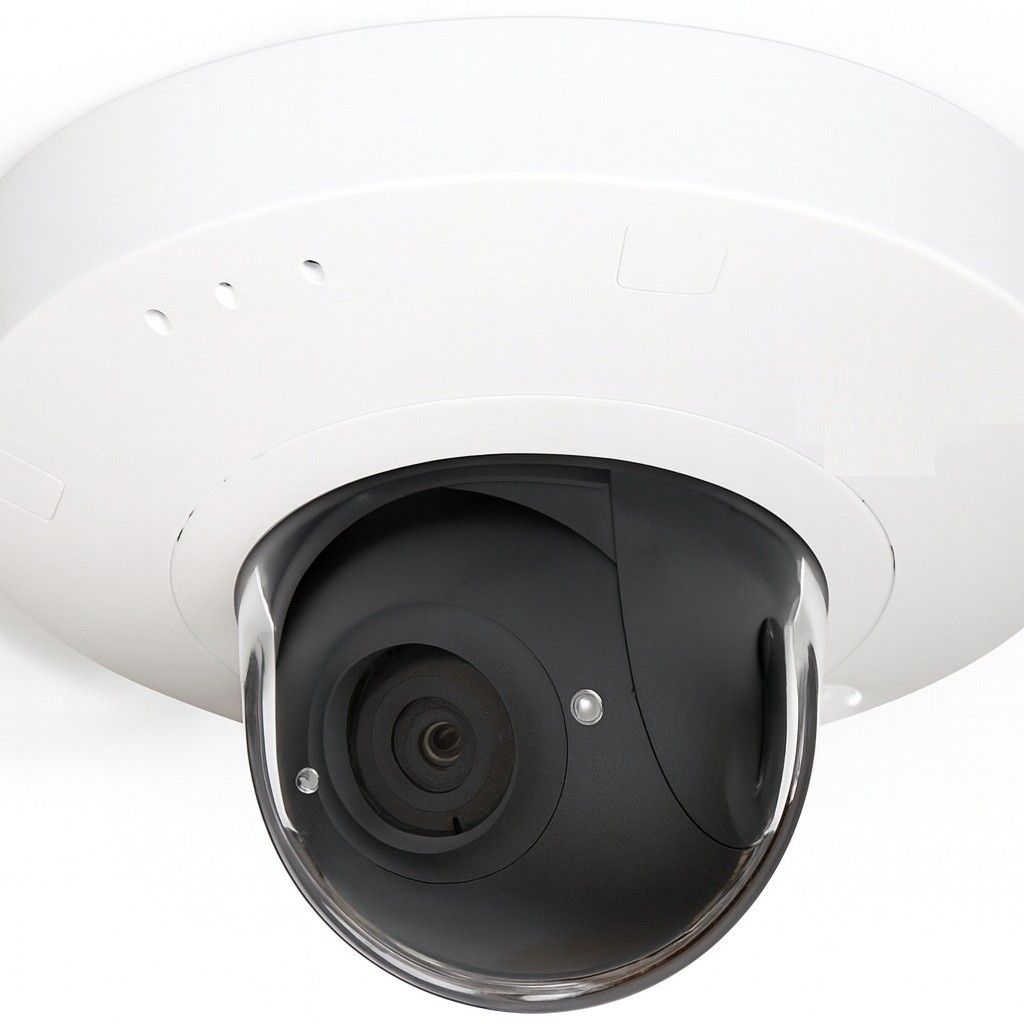

Mobotix Mx-v71B-4DN080 Indoor Network IP 4 Megapixel Ultra Lowlight DN080 - 60°x33° Day/Night Dome Camera

SKU
Mx-v71B-4DN080
Model No
Mx-v71B-4DN080
$1,234.73
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 4MP Ultra Lowlight Sensor (2688 × 1512)
  • Premium wide-angle lens with f/1.8 aperture
  • Maximum image angle (H × V): 60° × 33°
  • Integrated IR LED illuminators
  • Wide Dynamic Range (WDR) up to 120 dB

The Mobotix Mx-v71B-4DN080 is a premium indoor surveillance camera designed for ultra-low-light performance, delivering crisp 4MP resolution and a focused 60°x33° field of view for reliable day/night monitoring in high-security environments.

Camera Features

  • 4MP Ultra Lowlight Sensor: 2688 × 1512 resolution ensures clear images even in low-light conditions.
  • Premium Wide-Angle Lens: Featuring an f/1.8 aperture, it captures more light, enhancing image quality and clarity.
  • Maximum Image Angle (H × V): 60° × 33° provides a broad area of coverage to avoid blind spots.
  • Integrated IR LED Illuminators: Enables night vision for continuous monitoring in complete darkness.
  • Wide Dynamic Range (WDR): Up to 120 dB allows for clear imaging in challenging lighting situations.
  • Day and Night Sensors: Equipped with an IR cut filter to transition seamlessly between day and night monitoring.
  • 3-Axis Mechanical Pan/Tilt Head: Provides flexibility in positioning for customized surveillance angles.
  • IK10-Rated Housing: Ensures durability and protection against impacts, making it ideal for high-security settings.
  • Operating Temperature Range: -10°C to +50°C enables reliable operation in varied environments.
  • Built-in Speaker and Microphone: Facilitates two-way audio communication for enhanced interaction.
  • USB-C Interface: Offers modern connectivity options for data transfer and peripheral connections.
  • 8GB Memory Card Included: Provides immediate storage capability for recordings without additional purchases.
  • MTBF: 80,000 hours indicating outstanding reliability and longevity of performance.

Mobotix Mx-v71B-4DN080 Detailed Specifications

Sensor Resolution2688 × 1512 (4MP)
Lens Aperturef/1.8
Field of View60° × 33°
IR LED IlluminatorsIntegrated
Wide Dynamic RangeUp to 120 dB
Sensor TypeDay and night with IR cut filter
Mechanical Head3-axis pan/tilt
Housing RatingIK10
Operating Temperature-10°C to +50°C
Audio FeaturesBuilt-in speaker and microphone
ConnectivityUSB-C
Memory Card8GB included
MTBF80,000 hours
SKU  Mx-v71B-4DN080
Features  Day/Night, ONVIF, Vandal Resistant, Wide Dynamic Range
Manufacturer  Mobotix
Camera Signal     Network IP
Connection Type  Wired
Resolution    4 Megapixel
Mount Type  Ceiling, Wall
Compression Method    H.264, MxPEG+, M-JPEG, H.265
Durability    Indoor, Vandal Resistant
Voltage  PoE+
Minimum Scene Illumination  Color sensor (day): 0,1 lx @ 1/60 s; 0,005 lx @ 1 s, BW sensor (night): 0,02 lx @ 1/60 s; 0,001 lx @ 1 s
Operating Temperature    –10 to 50 °C/–14 to 122 °F
Power Consumption  max. 25 W
Protocols  DHCP (client and server), DNS, ICMP, IGMP v3, IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, NFS, NTP (client and server), RTP, RTCP, RTSP, SFTP, SIP (client and server), SMB/CIFS, SNMP, SMTP, SSL/TLS 1.3, UDP, VLAN, VPN, Zeroconf/mDNS
Angle of View    60° X 33°
Auto Gain Control    Yes
Day/Night    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
