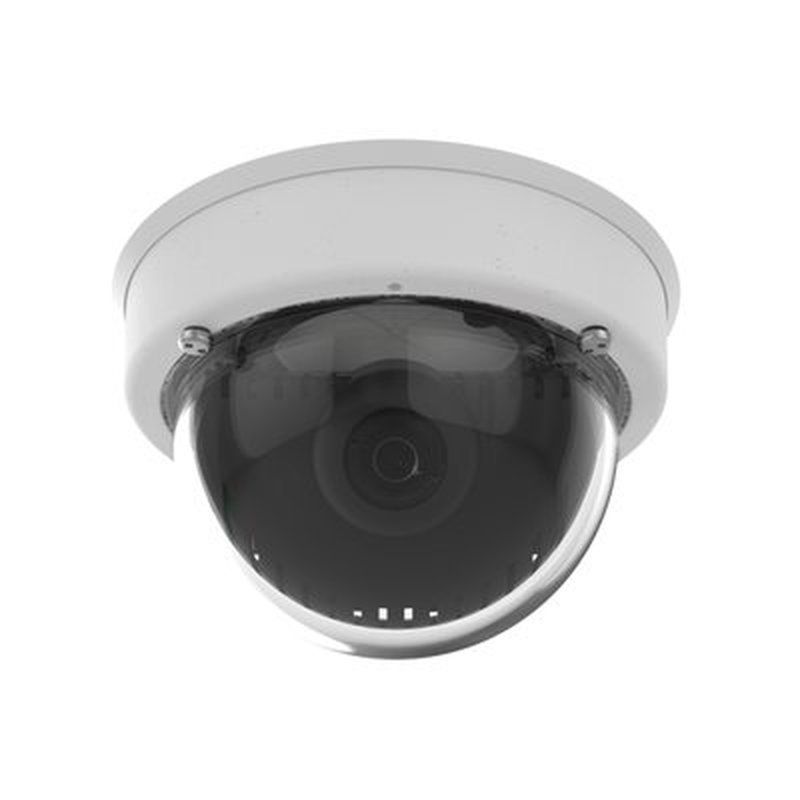

Mobotix Mx-v26B-6D036 6 Megapixel Indoor Network Dome Camera, B036, Day, White
SKU
Mx-v26B-6D036
Model No
Mx-v26B-6D036
$622.06
Product Highlights
- Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility
- Recording on an internal MicroSD card (4 GB as standard)
- Easily installed in the ceiling, optionally available with on-wall set with audio
- Manually adjustable lens tilt angle of 0° to 90°
- Heightened manipulation protection through optional vandalism set
Speak to an expert
The Mobotix Mx-v26B-6D036 6 Megapixel Indoor Network Dome Camera is a versatile and high-performance surveillance solution designed for indoor use. With the capability to accommodate various lens options, integrated audio features, and exceptional durability, this camera ensures comprehensive security coverage and robust performance in various environments.
Mobotix Mx-v26B-6D036 Camera Features
- System Platform: Mx6 2nd generation with MxBus, H.264, and ONVIF compatibility for seamless integration into existing security systems.
- Storage: Recording on an internal MicroSD card (4 GB as standard) for easy and efficient video storage.
- Installation: Easily installed in the ceiling, with optional on-wall set available that includes audio capabilities for versatile placement options.
- Lens Adjustment: Manually adjustable lens tilt angle of 0° to 90° to capture the desired field of view.
- Durability: Heightened manipulation protection through an optional vandalism set with a stainless steel ring and reinforced dome for enhanced security.
- Analytics: MxAnalytics Video Analysis tools as standard for advanced surveillance insights and monitoring.
- Sensors: Integrated vibration and temperature sensor to enhance security and alert of any unusual activity.
Mobotix Mx-v26B-6D036 Detailed Specifications
| Resolution | 6 Megapixels |
| Lens Options | Six different HD premium lenses with fields of view from 103° to 15° |
| Audio Features | Optional on-wall set with integrated microphone and speaker |
| Protection | Optional vandalism set including stainless steel ring and reinforced dome |
| Video Compression | H.264 |
| Connectivity | MxBus connection with MxIOBoard-IC accessory |
| Inputs/Outputs | Two inputs and two 12V outputs |
| Weight | Standard weight (check specifications) |
SKU  | Mx-v26B-6D036 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Zoom, ONVIF, Privacy Masking |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MxPEG+, M-JPEG |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | 90 x 150 mm |
| Image Device | 1/1.8" CMOS, 6MP (3072 x 2048), Progressive scan |
| Minimum Scene Illumination | Color sensor (day): 0.1 lx @ 1/60s; 0.005 lx @ 1s, BW sensor (night): 0.02 lx @ 1/60s; 0.001 lx @ 1s |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Consumption | 5 watts |
| Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, SFTP, RTP, RTSP, UDP, SNMP, SMTP, DHCP (client and server), NTP (client and server), SIP (client and server) G.711 (PCMA and PCMU) and G.722 |
| Angle of View | Horizontal: 103°, Vertical: 77° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
