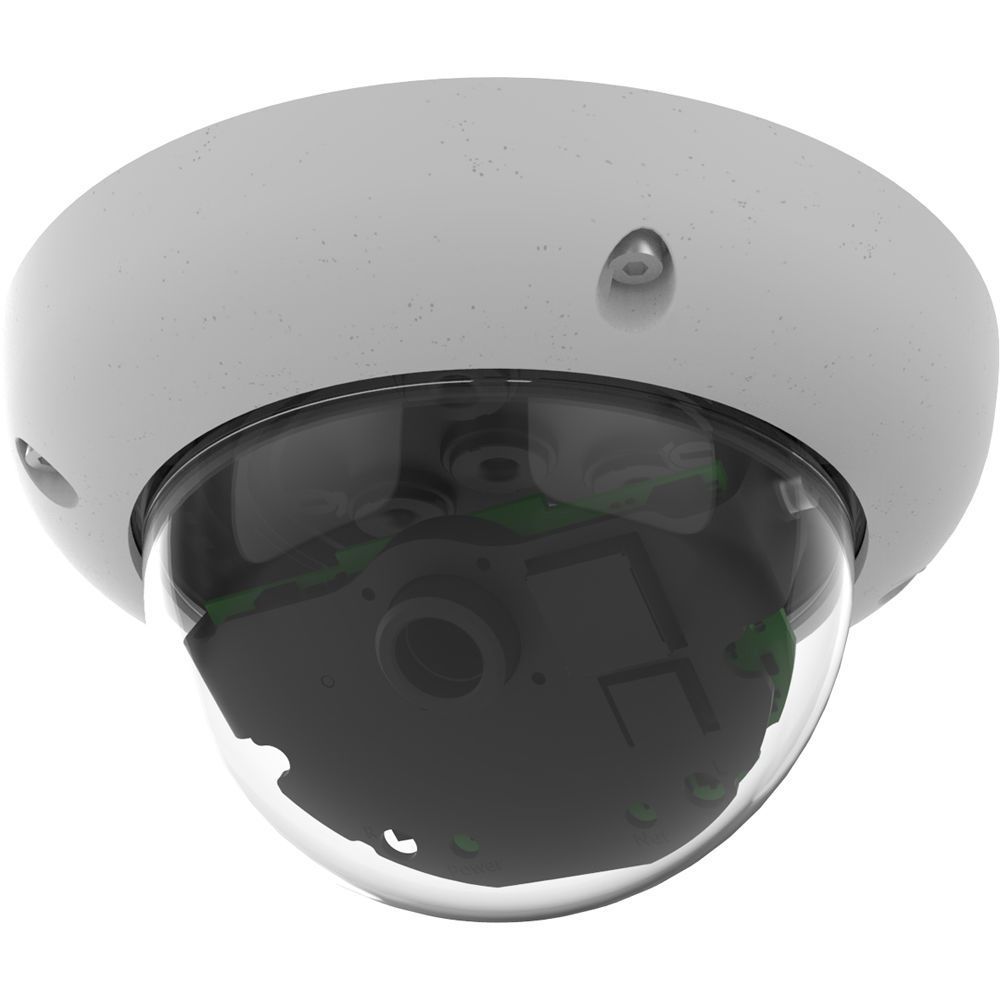

Mobotix Mx-v26B-6D 6 Megapixel Network Dome Camera Body with Day Sensor, No Lens, White
SKU
Mx-v26B-6D
Model No
Mx-v26B-6D
$535.99
Product Highlights
- Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility
- Recording on an internal MicroSD card (4 GB as standard)
- Easily installed in the ceiling, optionally available with on-wall set with audio
- Manually adjustable lens tilt angle of 0° to 90°
- Heightened manipulation protection through optional vandalism set
Speak to an expert
The Mx-v26B-6D from Mobotix is a versatile 6 Megapixel Network Dome Camera designed for both performance and security. With its flexible lens options and advanced features such as built-in video analytics, it caters to various surveillance needs while ensuring ease of installation and protection against vandalism.
Mobotix Mx-v26B-6D Camera Features
- High-Resolution Imaging: 6 Megapixel sensor provides clear and detailed images for enhanced surveillance.
- Versatile Lens Options: Compatible with six different Mobotix HD premium lenses offering fields of view from 103° to 15°, allowing you to customize coverage.
- Easy Installation: Designed for ceiling mounting with optional on-wall set with audio capabilities, simplifying setup.
- Adjustable Lens Tilt: Manual adjustment range of 0° to 90° for optimized camera positioning.
- Vandal Protection: Optional vandalism set enhances security with a stainless steel ring and reinforced dome.
- Integrated Video Analytics: MxAnalytics tools included for effective monitoring and analysis.
- Environmental Sensors: Built-in vibration and temperature sensors enhance operational reliability.
Detailed Specifications for Mobotix Mx-v26B-6D
| Model | Mobotix Mx-v26B-6D |
| Image Sensor | 6 Megapixels |
| Lens Compatibility | 6 Mobotix HD premium lenses |
| Field of View | 103° to 15° |
| Audio Capabilities | Optional microphone and speaker |
| Mounting Options | Ceiling and on-wall |
| Adjustable Tilt Angle | 0° to 90° |
| Vandal Resistance | Optional stainless steel ring and reinforced dome |
| Video Analytics | Included MxAnalytics |
| Integrated Sensors | Vibration and temperature sensor |
| Storage | Internal MicroSD card (4 GB standard) |
| Compatibility | H.264 and ONVIF |
SKU  | Mx-v26B-6D |
|---|---|
| Features | Audio, Auto Gain Control, Digital Zoom, Motion Detection Tracking, ONVIF, Privacy Masking |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 6 Megapixel |
| Lens Type | Not Included |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, MxPEG, JPEG |
| Durability | Indoor |
| Dimensions (W x H) | 90 x 150 mm |
| Image Device | 1/1.8" CMOS Progressive Scan |
| Minimum Scene Illumination | 0.1/0.005 (Color) |
| Operating Temperature | 0 to 40°C (32 to 104 °F) |
| Power Consumption | 5 W |
| Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (client and server), NTP (client and server), SIP (client and server) G.711 (PCMA and PCMU) and G.722 |
| Audio | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
