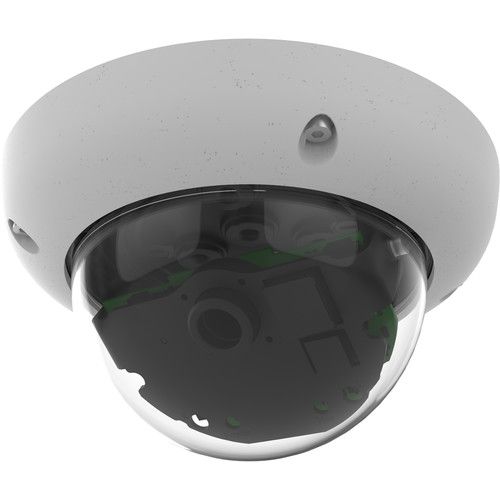

Mobotix Mx-v26A-6D036 6 Megapixel Network Camera with Day Sensor Module, B036 3.6mm Lens, White

SKU
Mx-v26A-6D036
Model No
Mx-v26A-6D036
$575.85
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Mx6 system platform with H.264 and ONVIF compatibility
  • Includes MxAnalytics video analysis tools out-of-the-box
  • Signal inputs and outputs via optional MxIOBoard-IC
  • Recording on internal MicroSD card
  • Lens tilt angle manually adjustable from 0° to -90°

The Mx-v26A-6D036 from Mobotix is a 6MP network camera equipped with a day sensor module and a B036 3.6mm lens, designed for superior surveillance and monitoring. This high-resolution camera offers features such as H.264 and ONVIF compatibility, advanced video analytics, and flexible installation options, ensuring reliable performance in various environments.

Mobotix Mx-v26A-6D036 Camera Features

  • Mx6 system platform: Ensures compatibility with H.264 and ONVIF, providing high-quality video streaming and seamless integration into existing systems.
  • MxAnalytics tools: Features advanced video analysis capabilities out-of-the-box, enhancing security and operational insights.
  • Optional MxIOBoard-IC: Allows for signal inputs and outputs, enabling expanded functionality and connectivity with other devices.
  • Internal MicroSD recording: Supports reliable storage solutions, ensuring recorded footage is safely stored on-device.
  • Adjustable lens tilt: Offers manual angle adjustment from 0° to -90°, allowing for versatile mounting options to capture the desired field of view.
  • Tamper protection: Provides enhanced security with optional vandalism protection, safeguarding the camera against potential damage.
  • On-wall installation: Supports mounting with optional microphone and speaker accessories, facilitating two-way audio communication.
  • Flexible installation options: Simplifies installation on ceilings with optional suspension systems (MxTubeMount & MxTube 100/200 cm).

Detailed Specifications for Mobotix Mx-v26A-6D036

Camera Type6 Megapixel Network Camera
Sensor ModuleDay Sensor Module
LensB036 3.6mm
Video StandardH.264 and ONVIF compatible
Video AnalyticsMxAnalytics out-of-the-box
Recording MediumInternal MicroSD card
Lens Tilt AngleAdjustable from 0° to -90°
Tamper ProtectionOptional vandalism set
Mounting TypeOn-wall, ceiling
Audio SupportOptional microphone and speaker
SKU  Mx-v26A-6D036
Features  Audio, Auto Gain Control, Day/Night, ONVIF, Privacy Masking, Self Recording, Vandal Resistant
Manufacturer  Mobotix
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    6 Megapixel
Lens Type    Fixed
Lens Size    3.6mm
Mount Type  Ceiling
Compression Method    H.264, M-JPEG
Durability    Indoor, Vandal Resistant
Voltage  PoE
Dimensions (W x H)  90 x 150 mm
Image Device    1/1.8“ CMOS, 6MP (3072 x 2048), Progressive Scan
Minimum Scene Illumination  Color: 0.1 lux at 1/60 seconds, 0.005 lux at 1/1 seconds
Operating Temperature    0 to 40°C (32 to 104 °F)
Power Consumption  < 5 watts
Protocols  IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (client and server), NTP (client and server), SIP (client and server) G.711 (PCMA and PCMU) and G.722
AudioYes
Auto Gain Control    Yes
Privacy Masking    Yes
ONVIF  Yes
Digital ZoomYes
