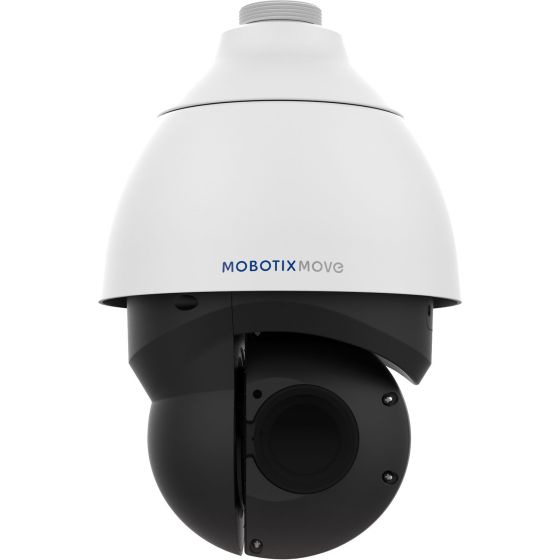

Mobotix Mx-SD1A-340-IR 3 Megapixel Outdoor IR PTZ Network Dome Camera with Heater, 40x Lens

SKU
Mx-SD1A-340-IR
Mobotix Mx-SD1A-340-IR 3 Megapixel Outdoor IR PTZ Network Dome Camera with Heater, 40x Lens Mx-SD1A-340-IR by Mobotix
Mobotix Mx-SD1A-340-IR 3 Megapixel Outdoor IR PTZ Network Dome Camera with Heater, 40x Lens Mx-SD1A-340-IR by Mobotix
Model No
Mx-SD1A-340-IR
$2,111.00
Qty:

Product Highlights
    • Multiple Progressive Scan CMOS Sensor Support
    • up to 3MP Resolution
    • Up to 40x Optical Zoom
    • Multi-Exposure WDR
    • IR LED (Working Distance up to 200 m)

The Mx-SD1A-340-IR from Mobotix is a 3 megapixel outdoor IR PTZ network dome camera with heater, 40x lens.

Features

  • Multiple Progressive Scan CMOS Sensor Support
  • up to 3MP Resolution
  • Up to 40x Optical Zoom
  • Multi-Exposure WDR
  • IR LED (Working Distance up to 200 m)
  • Multi Codec Support (H.264/MJPEG)
  • Micro SD/SDHC/SDXC Card Support
  • ONVIF Profile S/G Support
  • Weatherproof (IP66)
  • Vandal Proof (IK10 Rating)
  • Electrical Image Stabilizer (EIS) Support
  • Low Latency Streaming
  • Triple Stream Support
  • RS485 Support
  • 3D Motion Compensated Noise Reduction (MCTF)
  • Text Overlay and Privacy Masks
  • Smart Low Bitrate Control
  • Servo Feedback – Guarantees no Drifting
  • Zero-Down-Time (ZDT) Power Switching
  • Smart Low Bitrate Control
  • Servo Feedback – Guarantees no Drifting
  • Zero-Down-Time (ZDT) Power Switching
SKU  Mx-SD1A-340-IR
Features  Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Mobotix
Camera Signal    Network IP
Connection Type  Wired
Infrared Distance   101 Feet +
Resolution   3 Megapixel
Lens Type   Motorized Zoom
Mount Type  Pendant
Compression Method   H.264, M-JPEG
Durability   Vandal Resistant, Weather Resistant
Voltage  12vDC, 24vAC, PoE
Dimensions (W x H)  Ø207.4 x 300.4 mm with Sunshield
Electronic Shutter   1 to 1/10K sec
Image Device   1/2.8” Progressive CMOS
Minimum Scene Illumination  Color 0.04 lux, B/W 0.002 lux
Operating Temperature   40°C to 55°C (-40°F to 131°F) without Heater
Power Consumption  39 W
Protocols  ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS
Weatherproof   IP66
Angle of View   Horizontal: 62° (Wide), 2° (Tele), Vertical: 49° (Wide), 1° (Tele)
IR Distance  200m / 656.16ft
Audio Yes
Auto Gain Control   Yes
Day/Night   Yes
Digital Noise Reduction   Yes
Automatic White Balance   Yes
Heater & Fan   Yes
Motion Detection Tracking   Yes
Privacy Masking   Yes
Wide Dynamic Range   Yes
ONVIF  Yes
Digital Zoom Yes
There are no related videos.
Downloads & Manuals
SKU
Mx-SD1A-340-IR
Availability: In stock
