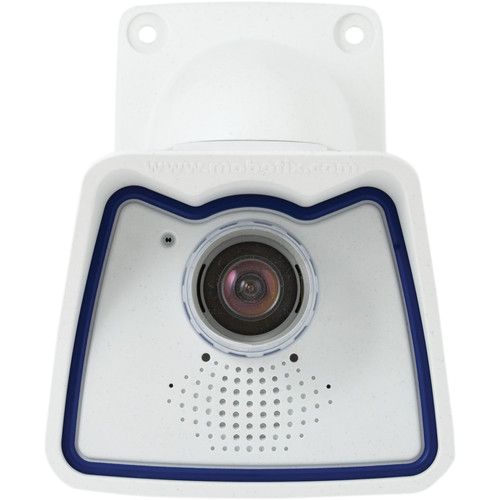

Mobotix MX-M25M-Sec-Night AllroundMono M25M Sec IP Camera Module with Night Sensor (No Lens)
SKU
MX-M25M-Sec-Night
Model No
MX-M25M-Sec-Night
$830.80
Product Highlights
- IP camera module with image sensor (body), lens to be ordered individually
- Image sensor: 1/2.5″ CMOS, 5 megapixels, color (day)
- Lens options: L12 to L320
- Max. image size: 5MP (2592 x 1944 pixels)
- Operating conditions: IP66, -30 to +50°C (-22 to 122°F)
Speak to an expert
The MX-M25M-Sec-Night from Mobotix is a universally deployable and easily concealable camera system. It features a 1/2.5" 5MP CMOS night (B/W) image sensor that captures images in a resolution of up to 2592 x 1944 pixels (QXGA). This camera module accepts easily replaceable and interchangeable lenses including L25, L38, L51, L76, L160, L320, and CSVario lens (available separately).
Features
- IP Camera Module: Includes an image sensor (body), but lens to be ordered individually for flexibility in deployment.
- High-Resolution Image Sensor: 1/2.5“ CMOS with 5 megapixels for clear and detailed color images during the day.
- Extensive Lens Options: Compatible with lens options L12 to L320, allowing for customized vision based on user needs.
- Maximum Image Size: Capable of capturing images in 5MP resolution (2592 x 1944 pixels) ensuring high-quality visuals.
- Durability: Rated IP66, operational in temperatures from -30 to +50°C (-22 to 122°F) for versatile outdoor usage.
- Comprehensive System Components: Comes with speaker, microphone, temperature sensor, shock detector, MxActivitySensor, MxAnalytics, and 0.5 m/1.65 ft ethernet patch cable for enhanced functionality.
- Diverse Interfaces: Features Ethernet 10/100 (RJ45), MxBus, USB; additional I/O and RS232 available via MX-232-IO-Box for extended connectivity.
Mobotix MX-M25M-Sec-Night Camera Specifications
| Feature | Details |
|---|---|
| Camera Type | IP Camera Module |
| Image Sensor | 1/2.5" CMOS, 5 Megapixels |
| Max Image Resolution | 2592 x 1944 pixels (5MP) |
| Lens Options | L12 to L320 (sold separately) |
| Operating Conditions | IP66, -30 to +50°C (-22 to 122°F) |
| Included Components | Speaker, microphone, temperature sensor, shock detector |
| Additional Features | MxActivitySensor, MxAnalytics |
| Connectivity | Ethernet 10/100 (RJ45), MxBus, USB, additional I/O via MX-232-IO-Box |
SKU  | MX-M25M-Sec-Night |
|---|---|
| Features | Motion Detection Tracking, Weather Resistant |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 5 Megapixel |
| Lens Type | Not Included |
| Mount Type | Wall |
| Compression Method | JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | Wall Mounted: 5.5 x 7.4 x 8.7" (140 x 189 x 222 mm), Ceiling Mounted: 5.5 x 6.1 x 7.7" (140 x 156 x 195 mm) |
| Image Device | 1/2.5" CMOS, 5 MP, progressive scan |
| Minimum Scene Illumination | 0.05 lux at 1/60 sec, 0.0025 lux at 1/1 sec |
| Operating Temperature | -22 to 122°F (-30 to 50°C) |
| Power Consumption | Typical: 4.5 W |
| Weatherproof | IP66 |
| Audio | Yes |
| Auto Gain Control | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
