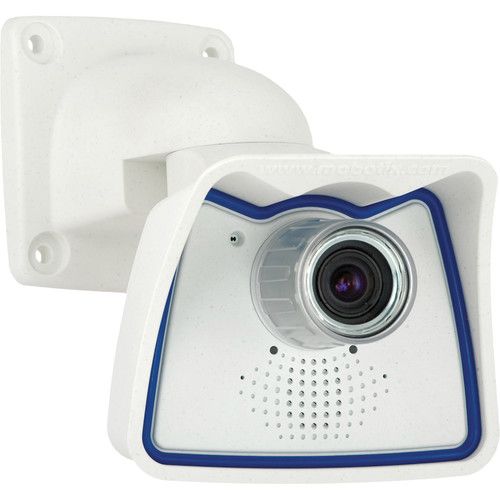

Mobotix MX-M25M-Sec-CSVario AllroundMono IP Camera with Day Sensor & 29-64mm CSVario Lens
SKU
MX-M25M-Sec-CSVario
Model No
MX-M25M-Sec-CSVario
$1,051.52
Product Highlights
- IP camera with image sensor and CSVario lens (CS mount)
- Image sensor: 1/2.5″ CMOS, 5 megapixels, color (day)
- Lens: CSVario, horizontal image angle 28° to 58° (manually adjustable)
- Max. image size: 5MP (2592 x 1944 pixels)
- Operating conditions: IP66, -30 to +50°C (-22 to 122°F)
Speak to an expert
The MX-M25M-Sec-CSVario from Mobotix is a universally deployable and easily concealable camera system. It features a 1/2.5" 5MP CMOS day (color) image sensor and L29-L64 1/2" 29 to 64mm CSVario lens. The 5MP sensor has a resolution of 2592 x 1944 pixels (QXGA).
Mobotix MX-M25M-Sec-CSVario Camera Features
- IP camera: Integrated image sensor and CSVario lens provide high-quality surveillance capability.
- Image sensor: 1/2.5“ CMOS, 5 megapixels, color (day) ensures high-resolution imaging to capture finer details.
- Lens: CSVario, horizontal image angle 28° to 58° (manually adjustable) allows flexibility in monitoring various areas.
- Max. image size: 5MP (2592 x 1944 pixels) guarantees sharp and clear images suitable for identification.
- Operating conditions: IP66 rated with a temperature range of -30 to +50°C (-22 to 122°F) ensures durability in harsh environments.
- Internal DVR: 4 GB MicroSD storage offers enhanced data retention for recorded footage.
- System components: Includes speaker, microphone, temperature sensor, and shock detector, enhancing the functionality for diverse applications.
- Interfaces: Ethernet 10/100 (RJ45), MxBus, USB; I/O and RS232 options provide compatibility with additional devices.
Detailed Specifications for Mobotix MX-M25M-Sec-CSVario
| Camera Type | IP Camera |
| Image Sensor | 1/2.5“ CMOS, 5MP |
| Max. Resolution | 2592 x 1944 pixels |
| Lens Type | CSVario, 29 to 64mm |
| Horizontal Image Angle | 28° to 58° (manually adjustable) |
| Operating Temperature | -30 to +50°C (-22 to 122°F) |
| IP Rating | IP66 |
| Internal Storage | 4 GB MicroSD |
| Connectivity | Ethernet 10/100 (RJ45), MxBus, USB |
| Additional Features | Speaker, microphone, temperature sensor, shock detector |
SKU  | MX-M25M-Sec-CSVario |
|---|---|
| Features | Motion Detection Tracking, Weather Resistant |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 29-64mm |
| Mount Type | Wall |
| Compression Method | JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | Wall Mounted: 5.5 x 7.4 x 8.7" (140 x 189 x 222 mm), Ceiling Mounted: 5.5 x 6.1 x 7.7" (140 x 156 x 195 mm) |
| Image Device | 1/2.5" CMOS , 5 MP, progressive scan |
| Minimum Scene Illumination | 0.25 lux at 1/60 sec, 0.013 lux at 1 sec |
| Operating Temperature | -22 to 122°F (-30 to 50°C) |
| Power Consumption | Typical: 4.5 W |
| Weatherproof | IP66 |
| Angle of View | 58 to 28° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
