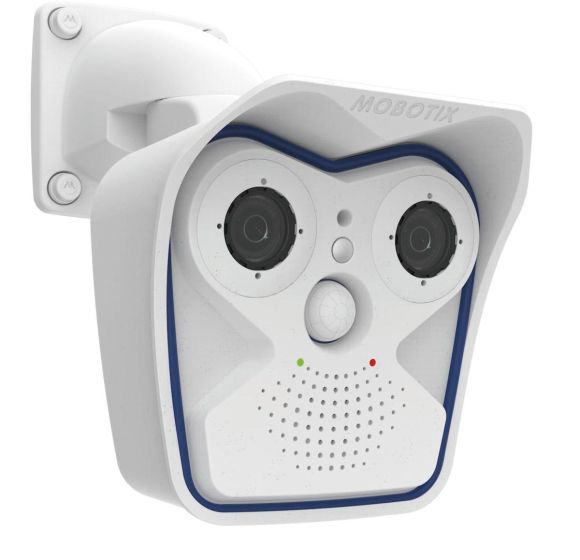

Mobotix Mx-M16B-6D6N079 6 Megapixel Outdoor Network Camera, 2x B079, Day & Night Sensor
SKU
Mx-M16B-6D6N079
Model No
Mx-M16B-6D6N079
$1,690.43
Product Highlights
- IP camera set with two installed sensor modules
- ONVIF-compliant Mx6 system platform (2nd generation) with H.264, MxPEG+ and M-JPEG
- Image sensors (via sensor module): 1/1.8" CMOS, 6 megapixels, 1x day and 1x night
- HD premium lenses (via sensor module): 2x B079 standard (f/1.8, horizontal image angle 45°)
- Max. image size (per image sensor): 6MP (3072 x 2048 pixels)
Speak to an expert
The Mx-M16B-6D6N079 from Mobotix is a robust 6 megapixel outdoor network camera that features dual sensor modules for optimal day and night performance. This advanced IP camera combines high-resolution imaging with durable weatherproof design, making it ideal for outdoor surveillance applications.
Features
- Dual Sensors: Equipped with 1x day and 1x night 6MP sensors, providing clear imaging in various lighting conditions.
- ONVIF Compliance: Utilizes the Mx6 system platform supporting H.264, MxPEG+, and M-JPEG formats for versatile integration with various systems.
- High-Definition Lenses: Features premium 2x B079 standard lenses with f/1.8 aperture, ensuring bright and detailed images with a 45° horizontal angle.
- Durable Construction: IP66 rated, functioning effectively in temperatures ranging from -40 to 60°C (-40 to 140°F), making it suitable for harsh weather conditions.
- Internal Storage: Comes with a built-in 4 GB microSD internal DVR for reliable video storage.
- Comprehensive Sensors: Includes an internal speaker, microphone, PIR sensor, temperature sensor, MxActivitySensor, and shock detector for enhanced monitoring capabilities.
- Flexible Mounting Options: VarioFlex wall/ceiling mount includes adaptability for additional pole mounting with the MX-MH-SecureFlex-ESWS.
- Multiple Interfaces: Supports Ethernet 10/100 (RJ45), MxBus, and USB, with additional IO and RS232 options through the MX Interface Box.
Mobotix Mx-M16B-6D6N079 Camera Specifications
| Feature | Details |
|---|---|
| Camera Resolution | 6 Megapixels (3072 x 2048 pixels) |
| Sensor Type | 1/1.8" CMOS |
| Lens Type | HD Premium Lenses, 2x B079 (f/1.8) |
| Weather Resistance | IP66 rated |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Storage Capacity | 4 GB microSD internal DVR |
| Audio Features | Speaker and Microphone included |
| Mounting Type | VarioFlex wall/ceiling mount |
| Network Interface | Ethernet 10/100 (RJ45), MxBus, USB |
SKU  | Mx-M16B-6D6N079 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, ONVIF, Vandal Resistant, Weather Resistant |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Lens Size | 7.9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MxPEG+, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 210 x 158 x 207mm |
| Image Device | 2x 1/1.8" CMOS sensor, 6MP (3072x2048), progressive scan |
| Minimum Scene Illumination | Color sensor (day): 0.1 lx @ 1/60s; 0.005 lx @ 1s, BW sensor (night): 0.02 lx @ 1/60s; 0.001 lx @ 1s |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Power Consumption | 7.5 Watts |
| Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (Client or Server), NTP (Client and Server), SIP (Client and Server) G.711 (PCMA and PCMU) and G.722 |
| Weatherproof | IP66 |
| Angle of View | Horizontal: 45°, Vertical: 34° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| ONVIF | Yes |
