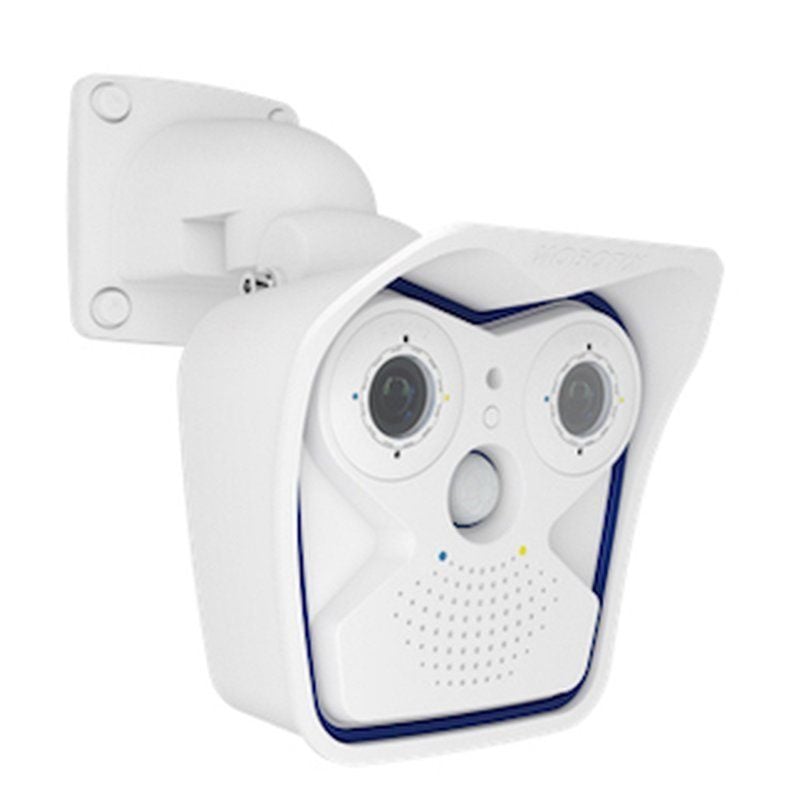

Mobotix Mx-M16B-6D6N041 6MP Outdoor IP Camera Set with Two Installed Sensor Modules
SKU
Mx-M16B-6D6N041
Model No
Mx-M16B-6D6N041
$1,585.79
Product Highlights
- IP camera set with two installed sensor modules
- ONVIF-compliant Mx6 system platform (2nd generation) with H.264, MxPEG+ and M-JPEG
- Image sensors (via sensor module): 1/1.8″ CMOS, 6 megapixels, 1x day and 1x night
- HD premium lenses (via sensor module): 2x B041 super wide-angle (f/1.8, horizontal image angle 90°)
- Max. image size (per image sensor): 6MP (3072 x 2048 pixels)
Speak to an expert
The Mx-M16B-6D6N041 from Mobotix is a 6MP outdoor IP camera set with two installed sensor modules, designed to deliver exceptional image quality and performance in various environmental conditions. This advanced camera system features ONVIF compliance, enabling easy integration with other security systems, while its durable construction guarantees reliable operation in extreme temperatures.
Mobotix Mx-M16B-6D6N041 Camera Features
- Dual Sensor Modules: Includes two installed sensor modules for both day and night operation, ensuring 24/7 surveillance capabilities.
- High-Performance Design: ONVIF-compliant Mx6 system platform supports H.264, MxPEG+, and M-JPEG formats for versatile connectivity and efficient streaming.
- Superior Imaging: Equipped with 1/1.8“ CMOS image sensors that deliver up to 6 megapixels resolution (3072 x 2048 pixels) for sharp and detailed images.
- Wide-Angle Lenses: Features 2x B041 super wide-angle HD premium lenses (f/1.8, horizontal image angle 90°) that enhance coverage and visibility.
- Rugged Durability: IP66 rated, operates in temperatures ranging from -40 to 60°C (-40 to 140°F), making it reliable for outdoor use in harsh weather conditions.
- Integrated Storage: Internal DVR with 4 GB microSD storage allows for local recording and playback options.
- Comprehensive Features: Built-in speaker, microphone, PIR sensor, temperature sensor, MxActivitySensor, and shock detector enhance security monitoring.
- Flexible Mounting Options: VarioFlex wall/ceiling mount included, compatible with additional pole mount MX-MH-SecureFlex-ESWS for versatile installation.
- Various Interfaces: Includes multiple connection options via Ethernet 10/100 (RJ45), MxBus, USB; IO, and RS232 through an additional MX Interface Box.
Detailed Specifications for Mobotix Mx-M16B-6D6N041
| Camera Type | Outdoor IP Camera |
| Resolution | 6MP (3072 x 2048 pixels) |
| Image Sensor | 1/1.8“ CMOS |
| Lens Type | 2x B041 super wide-angle (f/1.8, horizontal image angle 90°) |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| IP Rating | IP66 |
| Internal Storage | 4 GB microSD |
| Mounting Options | VarioFlex wall/ceiling mount |
| Power Supply | PoE (Power over Ethernet) |
| Connectivity | Ethernet 10/100 (RJ45), MxBus, USB |
SKU  | Mx-M16B-6D6N041 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Zoom, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Lens Size | 4.1mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, MxPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 210 x 158 x 207 mm |
| Image Device | 1/1,8" CMOS sensor, 6MP (3072x2048), progressive scan |
| Minimum Scene Illumination | 0.1/0.005 (Color), 0.02/0.001 (B/W) |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Power Consumption | 7.5 Watts |
| Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (Client or Server), NTP (Client and Server), SIP (Client and Server) G.711 (PCMA and PCMU) and G.722 |
| Weatherproof | IP66 |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
