Mobotix MX-M15D-Thermal-L65 IP Thermographic Network Camera 6 Megapixel L65 Sensor Module

SKU
MX-M15D-Thermal-L65
Mobotix MX-M15D-Thermal-L65 IP Thermographic Network Camera 6 Megapixel L65 Sensor Module MX-M15D-Thermal-L65 by Mobotix
Mobotix MX-M15D-Thermal-L65 IP Thermographic Network Camera 6 Megapixel L65 Sensor Module MX-M15D-Thermal-L65 by Mobotix
Model No
MX-M15D-Thermal-L65
$5,029.00
Qty:

Product Highlights
    • High-end thermografic camera with L65 thermal sensor of typically 50 mK and Max. image size (Thermal image) 336 x 252 pixel
    • Temperature measuring range of -40 to +550°C/-40 to +1022°F
    • The thermal sensor is capable of detecting in complete darkness and/or through smoke, smog, or a thin plastic film (limited during thick fog); applications include border protection: view of the sea in coastal areas, ships in the distance can be recognized in hazy conditions.
    • The combination with the MxActivitySensor in particular delivers extremely reliable video analysis results of person/vehicle movements, as it is now possible to block out disruptive factors such as regular movements of "cold" objects such as bushes, grass, water, clouds, waves etc.
    • No glare from strong sources of light (such as headlights, hand-held lamps).

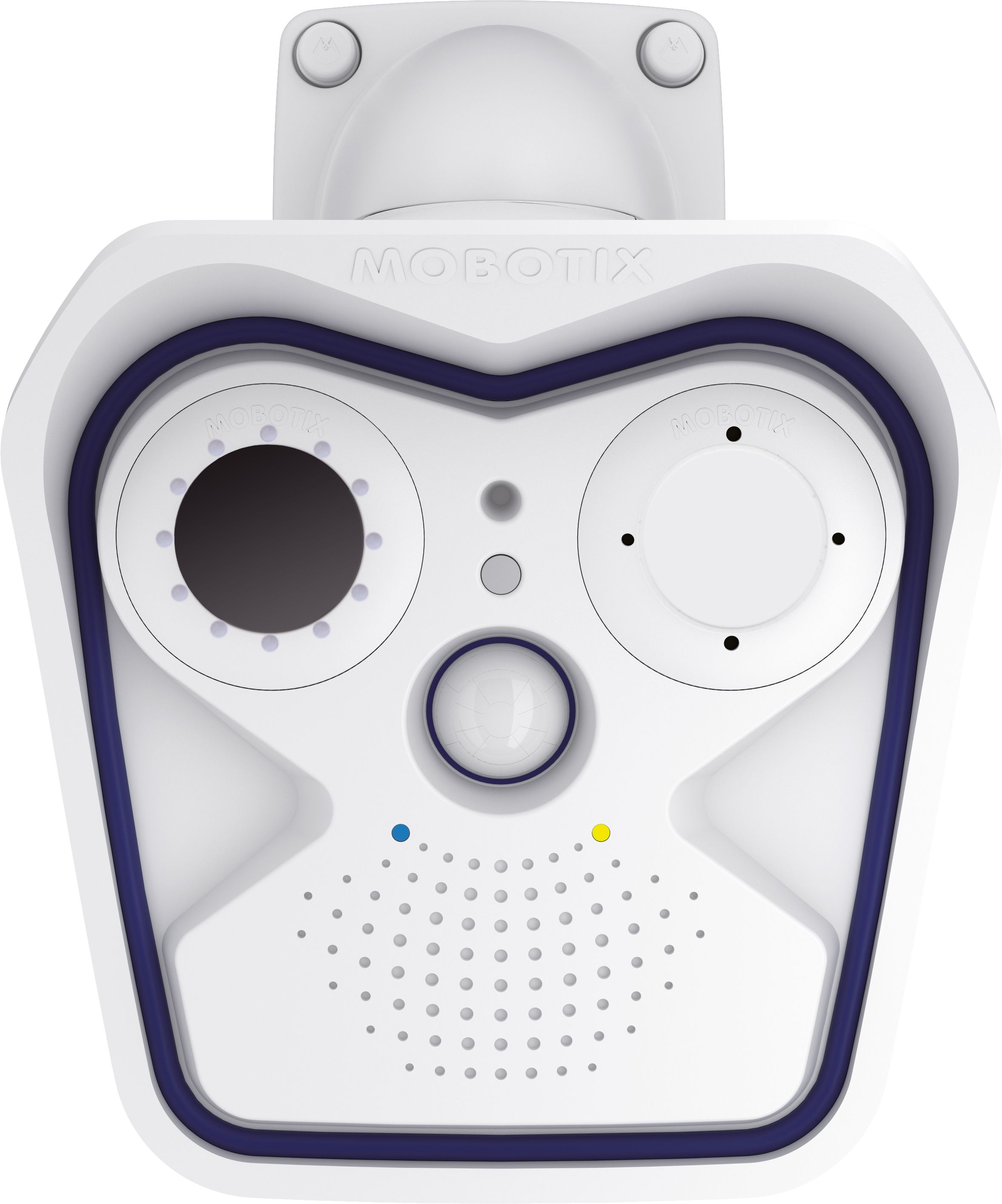

The MX-M15D-Thermal-L65 from Mobotix is a weatherproof thermographic PoE camera for detection plus a 6 MP sensor module for identification. The M15-Thermal comes standard with a thermal image sensor and a dummy module (to remain weatherproof to IP66). This network camera provides an entirely new range of applications. Combined with the elaborate array of camera sensors (PIR sensor, microphone, etc.) and the analytic capabilities of the camera software (MxActivitySensor, video motion detection, event logic, etc.), it is now possible to detect, for example, moving persons even in total darkness. The different display options of the thermographic image sensor (off-color/black & white) add to the existing possibilities for analyzing and using the generated images.

Features

  • High-end thermografic camera with L65 thermal sensor of typically 50 mK and Max. image size (Thermal image) 336 x 252 pixel
  • Temperature measuring range of -40 to +550°C/-40 to +1022°F
  • The thermal sensor is capable of detecting in complete darkness and/or through smoke, smog, or a thin plastic film (limited during thick fog); applications include border protection: view of the sea in coastal areas, ships in the distance can be recognized in hazy conditions.
  • The combination with the MxActivitySensor in particular delivers extremely reliable video analysis results of person/vehicle movements, as it is now possible to block out disruptive factors such as regular movements of "cold" objects such as bushes, grass, water, clouds, waves etc.
  • No glare from strong sources of light (such as headlights, hand-held lamps).
  • Detection of hotter than average body parts or technical devices, detection of faults in photovoltaic systems, overheated machine bearings etc.
  • Low camera power consumption of max. 5.5 W (thermal sensor plus 6 MP sensor module, without additional MxBus devices).
  • The thermal image sensor is configured using camera software in a web browser; it is possible to display the thermal image with all other MOBOTIX user software (MxMC, MxEasy, MxCC, App).
SKU  MX-M15D-Thermal-L65
Features  Motion Detection Tracking, Weather Resistant
Manufacturer  Mobotix
Camera Signal    Network IP
Connection Type  Wired
Infrared Distance   Non Infrared
Resolution   6 Megapixel
Lens Type   Fixed
Lens Size   11.9mm
Mount Type  Wall
Compression Method   JPEG
Durability   Weather Resistant
Voltage  PoE
Dimensions (W x H)  W x H x D with wall mount: 158 x 244 x 239 mm
Image Device   1/2.5“ CMOS, 5 MP (2592x1944 pixels), progressive scan
Operating Temperature   -30 to 60°C/-22 to 140°F
Power Consumption  < 5 W
Weatherproof   IP66
Audio Yes
Auto Gain Control   Yes
Motion Detection Tracking   Yes
