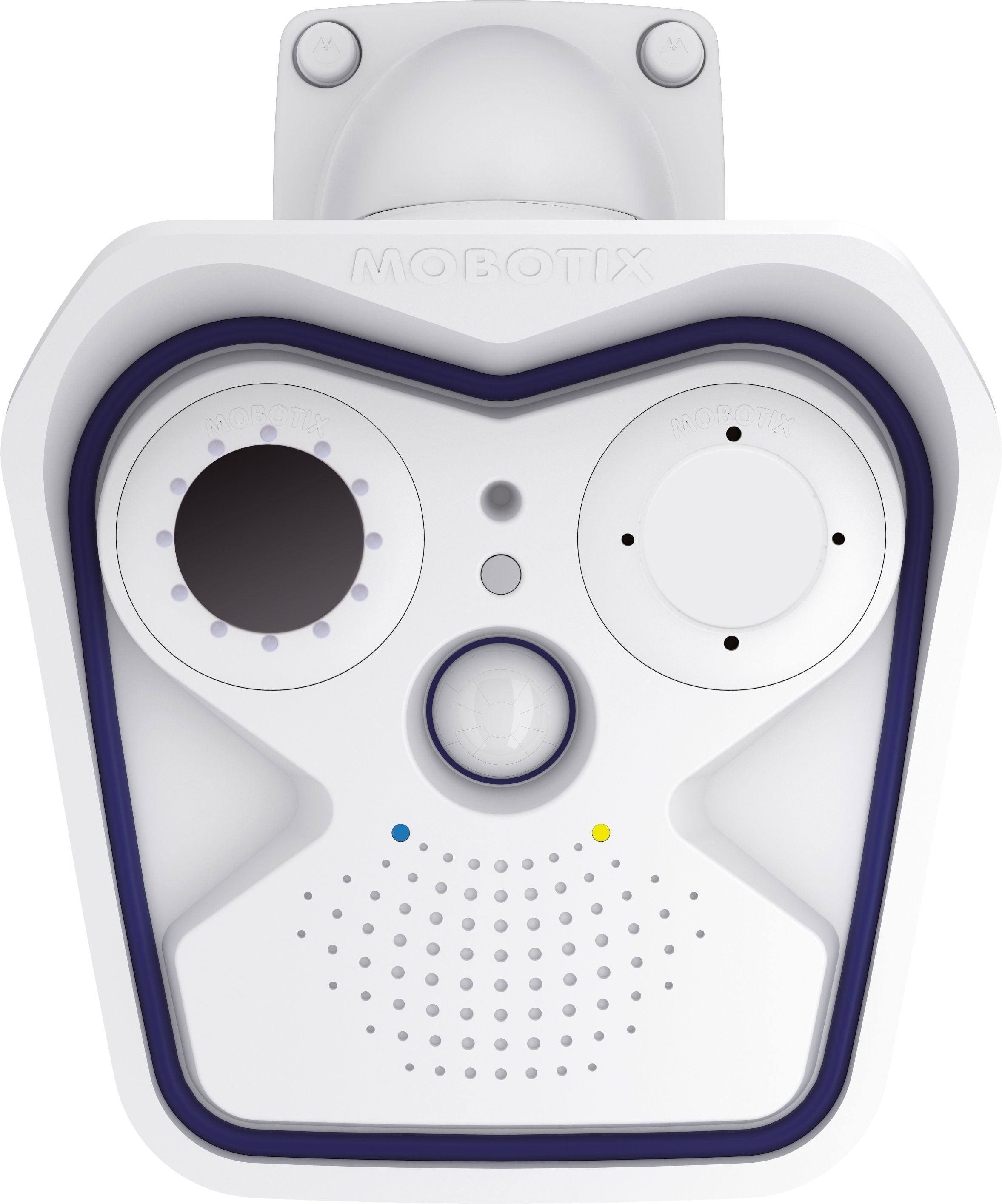

Mobotix MX-M15-TR079 IP Thermographic Network Camera 6 Megapixel B079 Sensor Module
SKU
MX-M15-TR079
Model No
MX-M15-TR079
$6,441.55
Product Highlights
- High-end thermografic camera with B079 thermal sensor of typically 50 mK and Max. image size (Thermal image) 336 x 252 pixel
- Temperature measuring range of -40 to +550°C/-40 to +1022°F
- The thermal sensor is capable of detecting in complete darkness and/or through smoke, smog, or a thin plastic film (limited during thick fog); applications include border protection: view of the sea in coastal areas, ships in the distance can be recognized in hazy conditions.
- The combination with the MxActivitySensor in particular delivers extremely reliable video analysis results of person/vehicle movements, as it is now possible to block out disruptive factors such as regular movements of "cold" objects such as bushes, grass, water, clouds, waves etc.
- No glare from strong sources of light (such as headlights, hand-held lamps).
Speak to an expert
The MX-M15-TR079 from Mobotix is a weatherproof thermographic PoE camera for detection plus a 6 MP sensor module for identification. The M15-Thermal comes standard with a thermal image sensor and a dummy module (to remain weatherproof to IP66). This network camera provides an entirely new range of applications. Combined with the elaborate array of camera sensors (PIR sensor, microphone, etc.) and the analytic capabilities of the camera software (MxActivitySensor, video motion detection, event logic, etc.), it is now possible to detect, for example, moving persons even in total darkness. The different display options of the thermographic image sensor (off-color/black & white) add to the existing possibilities for analyzing and using the generated images.
Features
- High-end thermographic camera: Features a B079 thermal sensor with a sensitivity of typically 50 mK and a maximum image size of 336 x 252 pixels for precise thermal imaging.
- Wide temperature measuring range: Capable of measuring temperatures from -40 to +550°C/-40 to +1022°F, making it suitable for diverse applications.
- Night vision capability: The thermal sensor detects objects in complete darkness or through smoke/smog, applicable for border protection and monitoring.
- Advanced video analytics: The MxActivitySensor enables reliable detection of person and vehicle movements while filtering out non-relevant movements.
- No glare detection: Eliminates interference from strong light sources, ensuring clarity and reliability in various lighting conditions.
- Hotspot detection: Identifies overheated equipment and faults in photovoltaic systems, preventing potential failures.
- Low power consumption: Operates with a maximum power draw of 5.5 W, maximizing efficiency without compromising performance.
- User-friendly configuration: The thermal image sensor can be easily configured and viewed through various MOBOTIX user software applications.
Mobotix MX-M15-TR079 Detailed Specifications
| Camera Type | Thermographic IP Network Camera |
| Sensor Module | 6 Megapixel (B079) |
| Image Size | 336 x 252 pixels |
| Temperature Range | -40 to +550°C / -40 to +1022°F |
| Power Consumption | Max. 5.5 W |
| Weatherproof Rating | IP66 |
| Detection Capability | Complete darkness, smoke, and mist penetration |
| Camera Software | MxActivitySensor, MxMC, MxEasy, MxCC, App |
SKU  | MX-M15-TR079 |
|---|---|
| Features | Motion Detection Tracking, Weather Resistant |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Lens Size | 7.9mm |
| Mount Type | Wall |
| Compression Method | JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | W x H x D with wall mount: 158 x 244 x 239 mm |
| Image Device | 1/2.5“ CMOS, 5 MP (2592x1944 pixels), progressive scan |
| Operating Temperature | -30 to 60°C/-22 to 140°F |
| Power Consumption | < 5 W |
| Weatherproof | IP66 |
| Audio | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
